MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4133
S.L.
1
M
350/350D

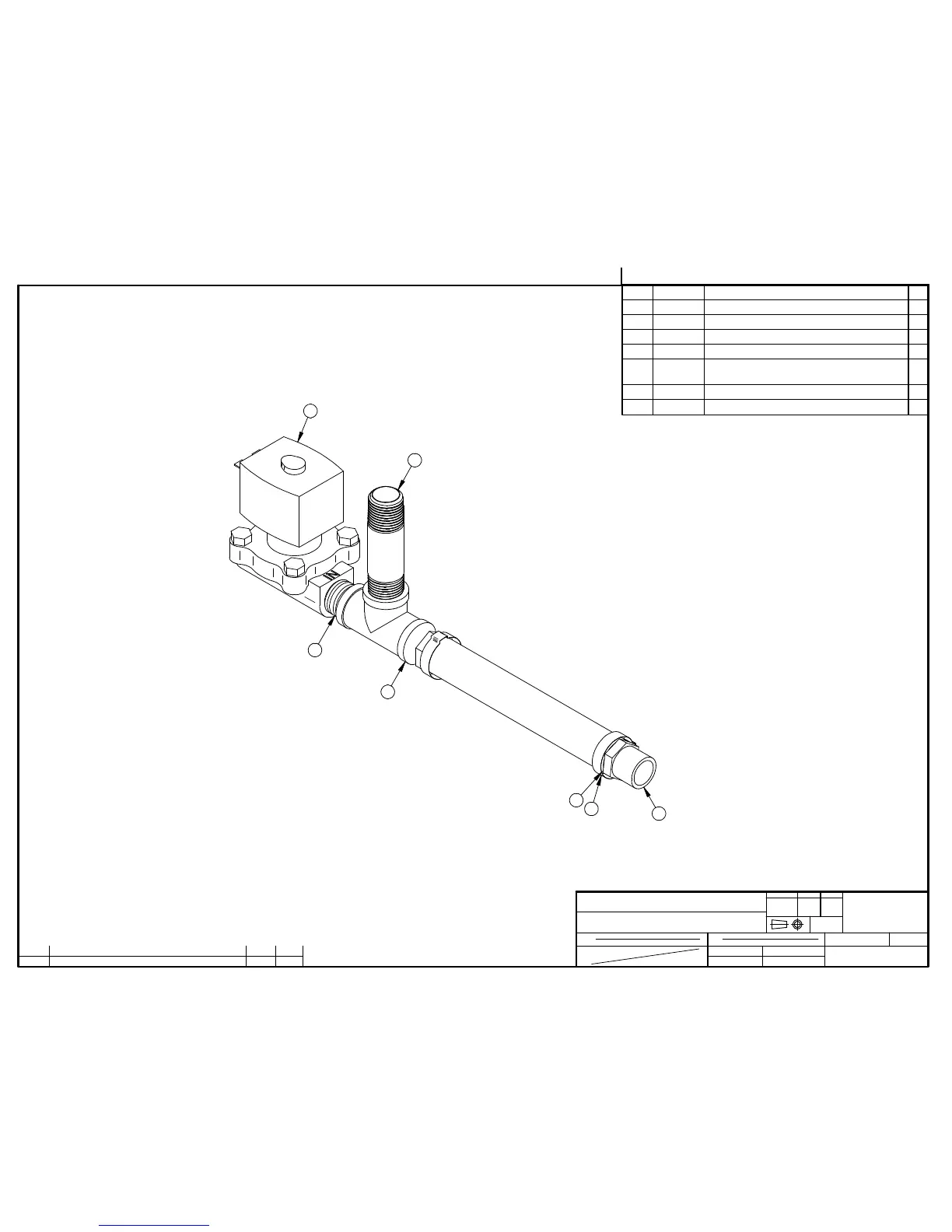

VALVE ASSEMBLY PUMP
13-11-14
004A4133
LET. MODIFICATION DATE INT.
2
4
3
5
6
7
1
ITEM PART # DESCRIPTION QT.
1 106-0020 VALVE 2WAY 24V 1/2"NPT(G94) 60Hz 1
2 100-0230 CLOSE NIPPLE ½" npt, S/S 1
3 100-0465 TEE ½"npt. S/S 1
4 100-0330 NIPPLE 1/2'' NPT X 3'' SS 1
5 101-0220 STRAIGHT ½"MNPTx3/4" HOSE BARB
BRASS
2
6 104-0110 HOSE 3/4'' ID VACUUM TIGERFLEX 1
7 105-0238 EAR CLAMP 23.9-27.1 SS 2
