PROFLAME 2 BATTERY HOLDER USE AND INSTALLATION INSTRUCTIONS
Battery Holder
Supply voltage 6.0 V (four 1.5 V AA batteries)
Ambient temperature ratings 0 - 60 °C (32 - 140 °F)
TECHNICAL DATA
2
IMPORTANT
The Proflame 2 Battery Holder is optional part of the Proflame 2 System, which is connected
with a wire harness. With the Battery holder connected the system will consist of 3 elements:
• Proflame 2 Transmitter
• Proflame 2 Battery Holder
• Proflame 2 Integrated Fireplace Control (IFC)
Please use this Installation manual in conjunction with the Proflame 2 IFC System manual, for
complete installation instructions.

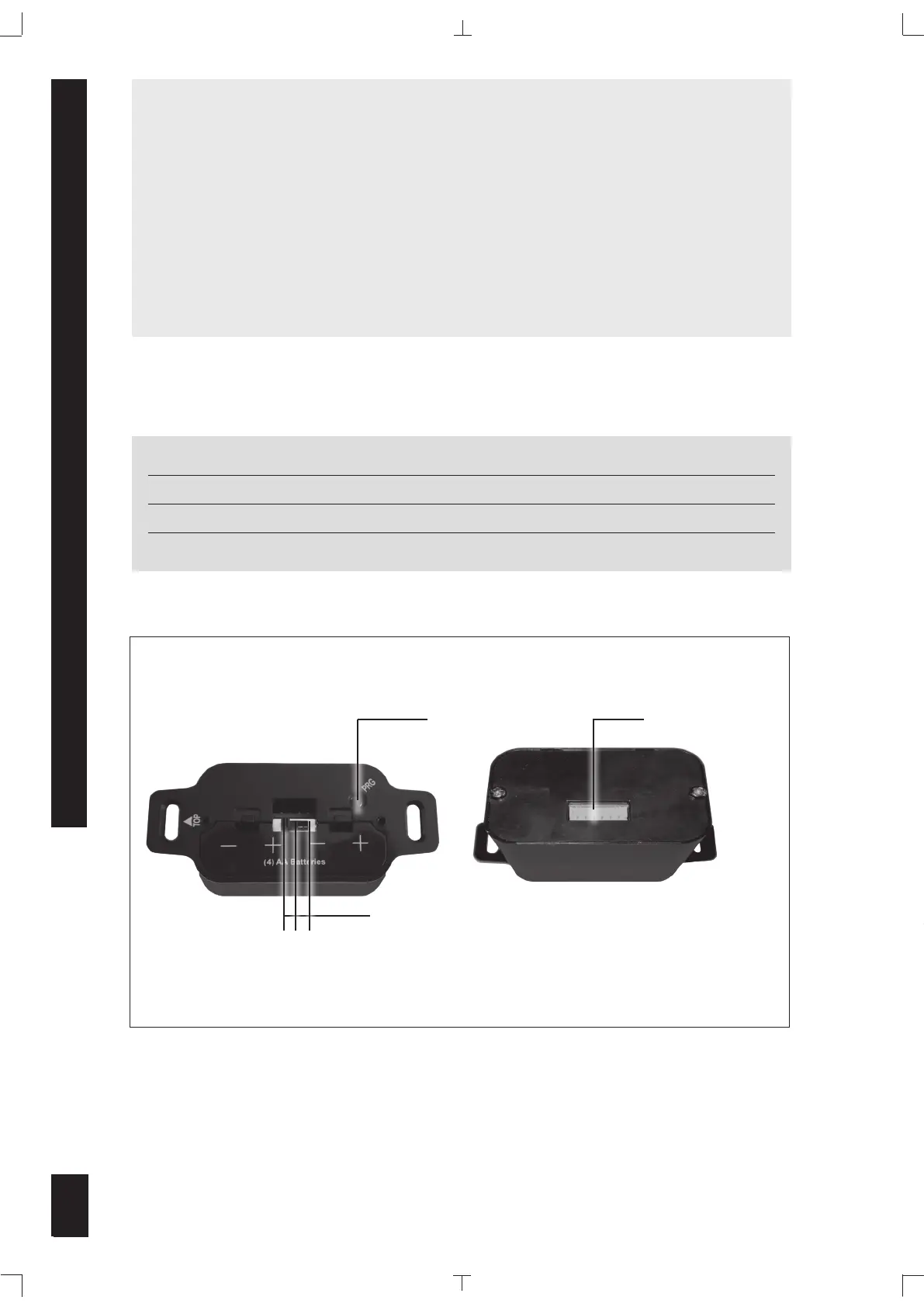

Fig. 1: Proflame 2 Battery Holder body.
The Proflame 2 Battery Holder includes: a three position switch On/Remote/Off, Transmitter
programming button (PRG) and gives the possibility, when used with the Proflame 2 system, to
mount the batteries in a single gang junction box away from the hearth appliance.
The Proflame 2 IFC Board can be powered by battery pack for back up (ATMO Systems only -refer
to Proflame 2 IFC instruction manual) in case of mains power interruption.
3 Positions Slider
6 PIN terminal
PRG Key
ON REMOTE OFF
