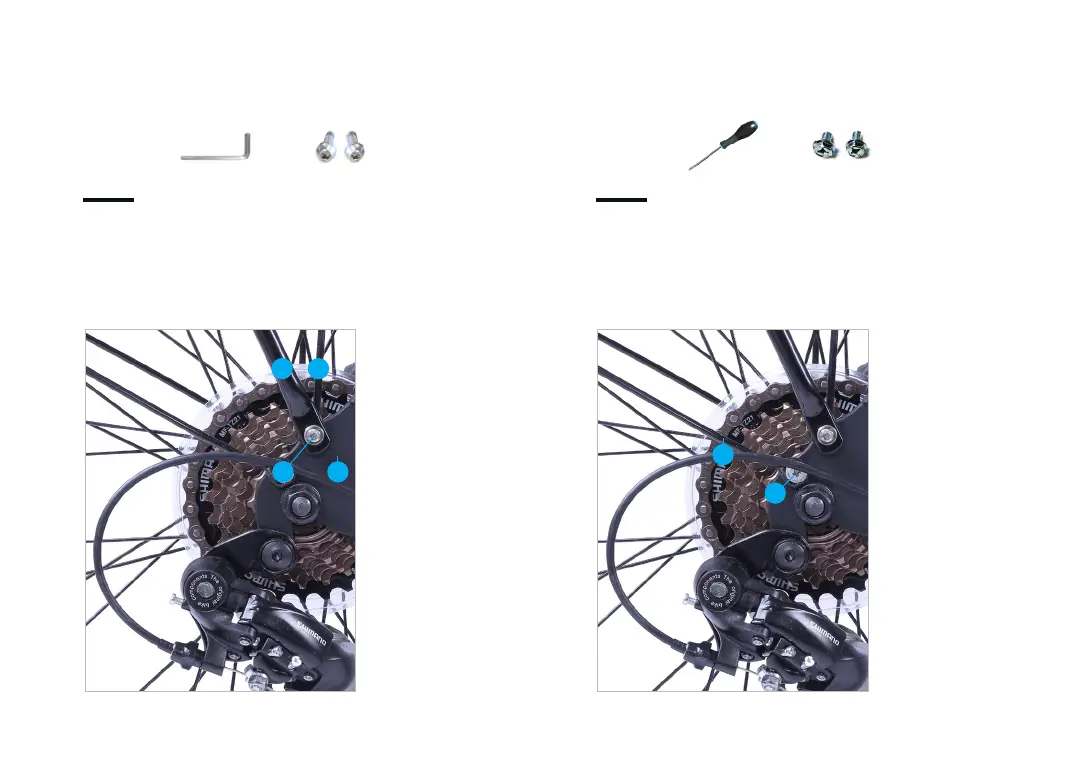

Install the angled rear fender strut to the frame in this
order (from the frame out): Frame, fender strut, and
phillips head screws. Tighten with a phillips screwdriver.
14
4MM
ALLEN KEY
(2) 4MM ALLEN
KEY SCREWS
( pre-installed)
Install the bottom rear rack arms to the frame in this order
(from the frame out): Frame, fender strut, rear rack arms,
and 4mm allen screws. Tighten with a 4mm allen key.
15
PHILLIPS
SCREWDRIVER
(2) PHILLIPS
HEAD SCREWS
( pre-installed)
2 .
FENDER
STRUT
1 .
FENDER
STRUT
3.
REAR
RACK
ARM
2.
PHILLIPS
HEAD
SCREW
4.
4MM
ALLEN
KEY SCREW
1 .
FRAME
ORDER: ORDER:
23
1
1
2
4
Repeat on both sides. Repeat on both sides.
NOTE NOTE
