WATCH ASSEMBLY VIDEOS ON OUR YOUTUBE CHANNEL, HTTPS://SIXTHREEZERO.COM/PAGES/ASSEMBLY
BRAKE ARMS
METAL TUBE
METAL TUBING
The front brake is facing away
from the bike body.
CORRECT
The brakes are behind the fork.
INCORRECT
01

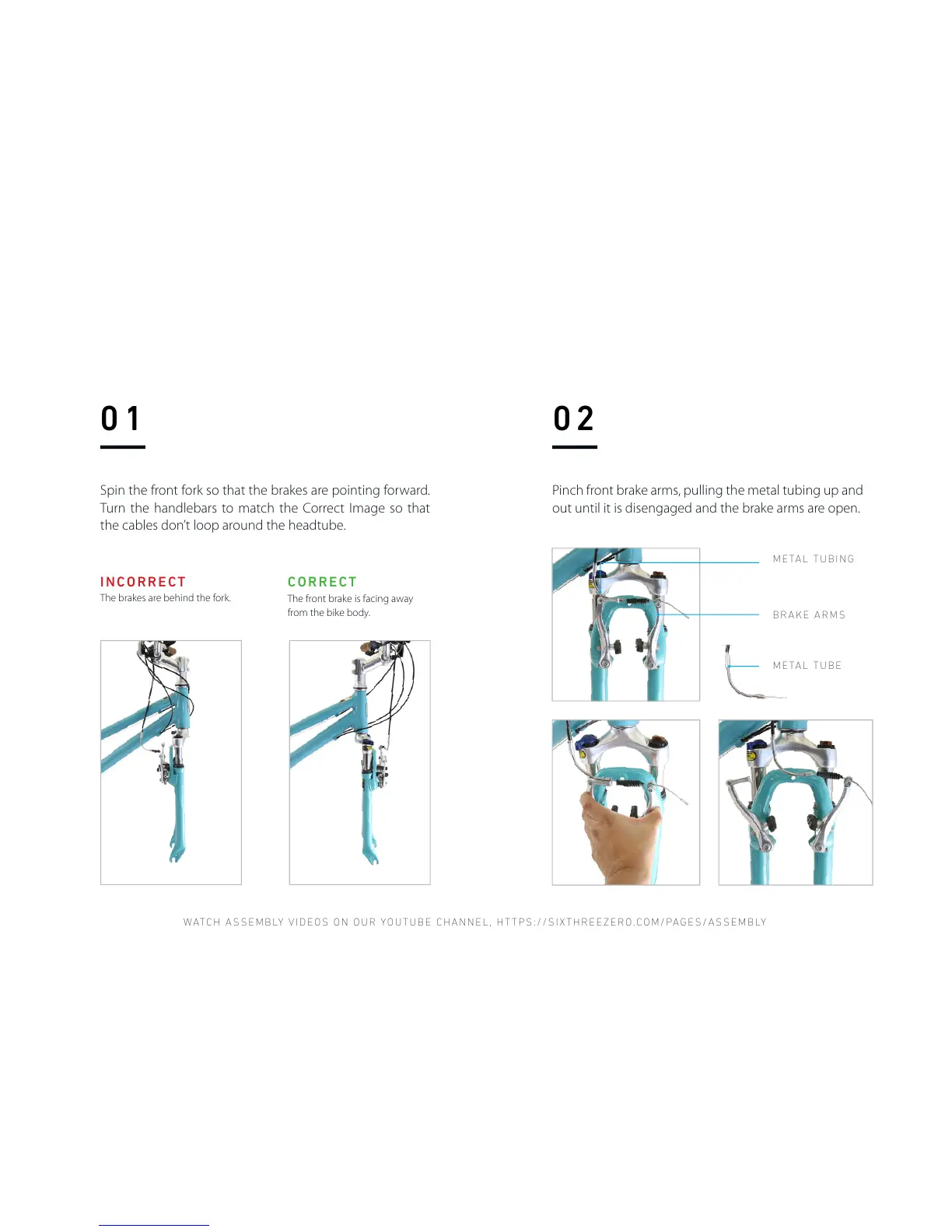

Spin the front fork so that the brakes are pointing forward.
Turn the handlebars to match the Correct Image so that
the cables don’t loop around the headtube.
02
Pinch front brake arms, pulling the metal tubing up and
out until it is disengaged and the brake arms are open.
