WATCH ASSEMBLY VIDEOS ON OUR YOUTUBE CHANNEL, HTTPS://SIXTHREEZERO.COM/PAGES/ASSEMBLY

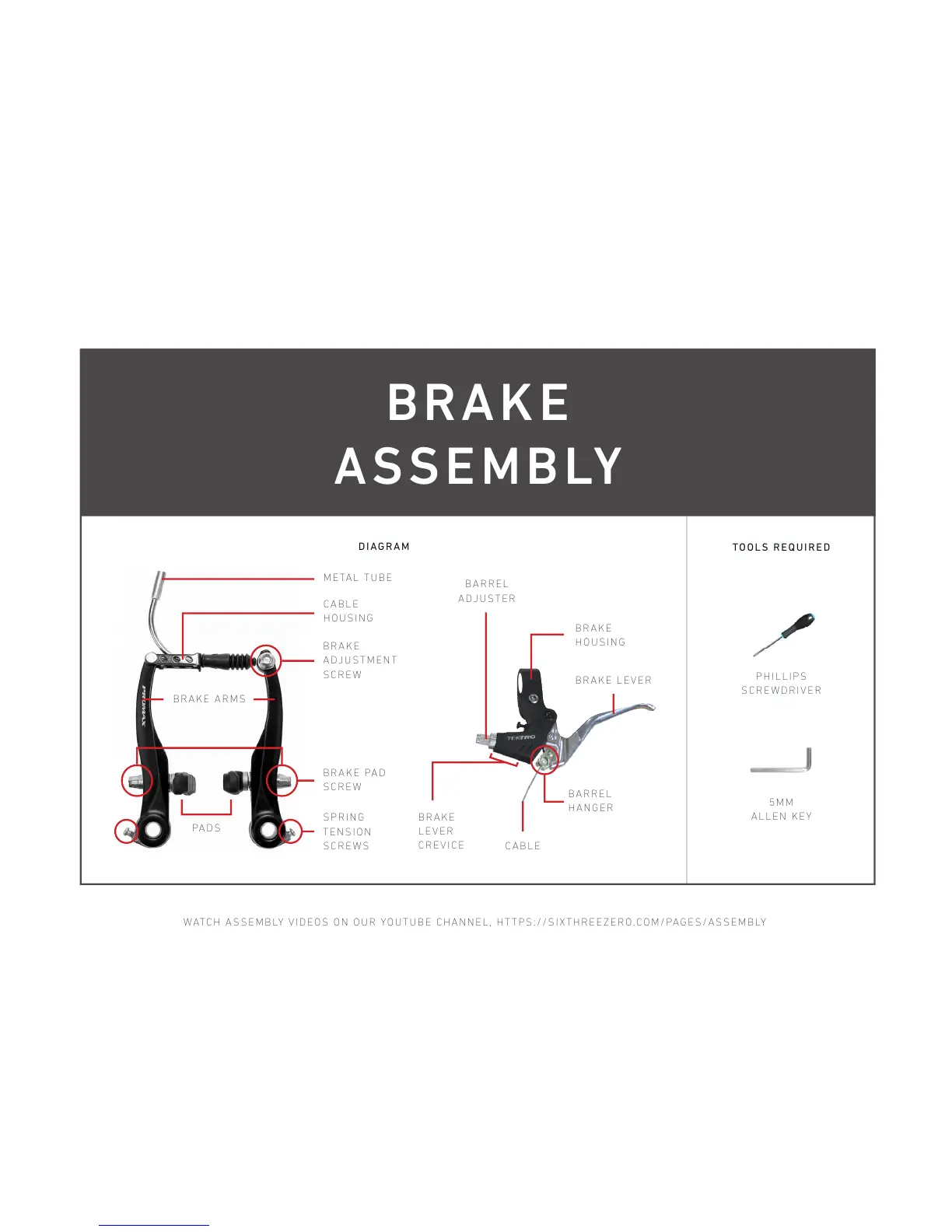

BRAKE
ASSEMBLY
METAL TUBE
C A B L E
HOUSING
B R A K E
ADJUSTMENT
SCREW
BRAKE LEVER
B A R R E L
HANGER
CABLE
B R A K E
HOUSING
BARREL
ADJUSTER
B R A K E
LEVER
CREVICE
S P R I N G
TENSION
SCREWS
B R A K E PA D
SCREW
BRAKE ARMS
PADS
P H I L L I P S
SCREWDRIVER
TOOLS REQUIRED
5MM
ALLEN KEY
DIAGRAM
