B A R R E L
ADJUSTER
03

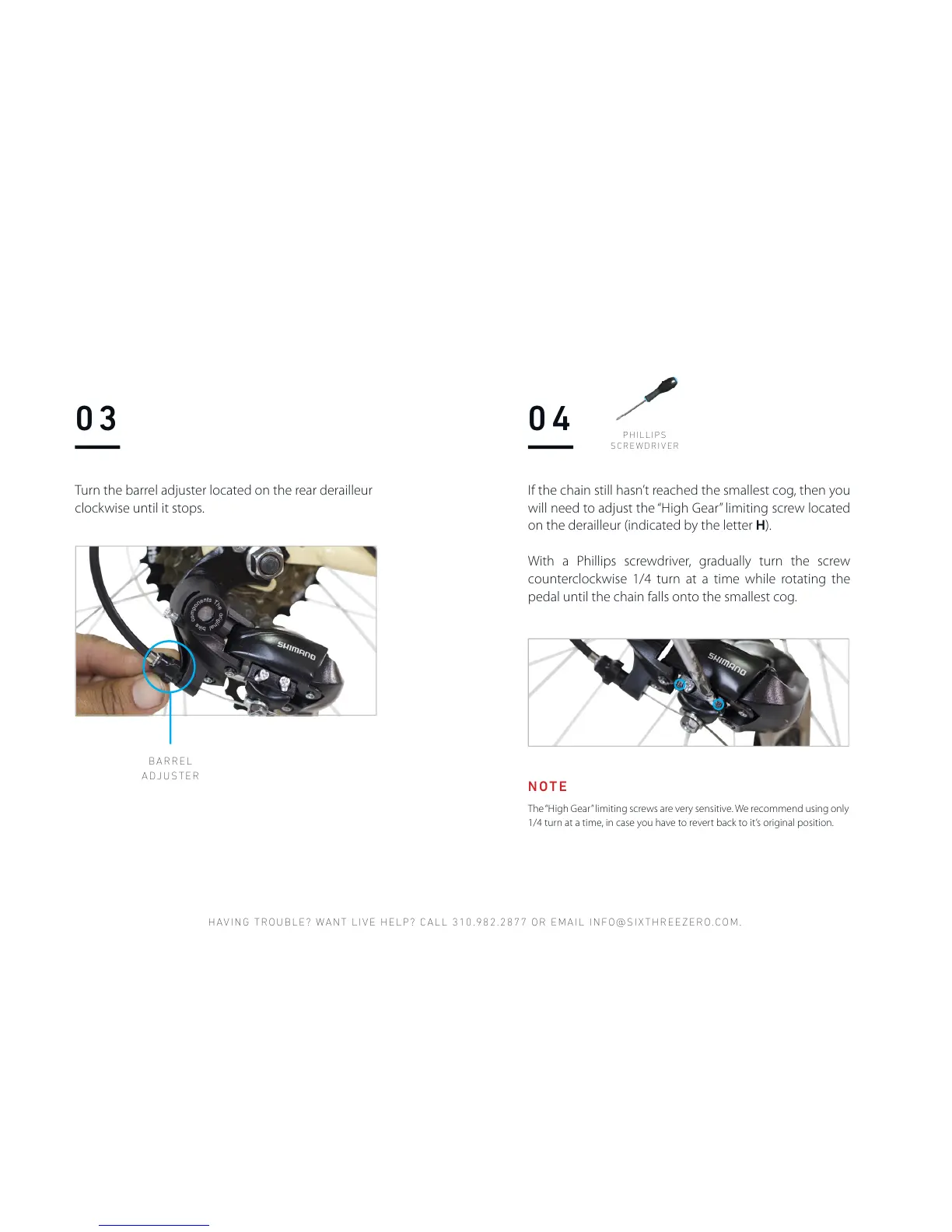

Turn the barrel adjuster located on the rear derailleur
clockwise until it stops.
04
If the chain still hasn’t reached the smallest cog, then you
will need to adjust the “High Gear” limiting screw located
on the derailleur (indicated by the letter H).
With a Phillips screwdriver, gradually turn the screw
counterclockwise 1/4 turn at a time while rotating the
pedal until the chain falls onto the smallest cog.
P H I LL I P S
SCREWDRIVER
The “High Gear” limiting screws are very sensitive. We recommend using only
1/4 turn at a time, in case you have to revert back to it’s original position.
NOTE
