03

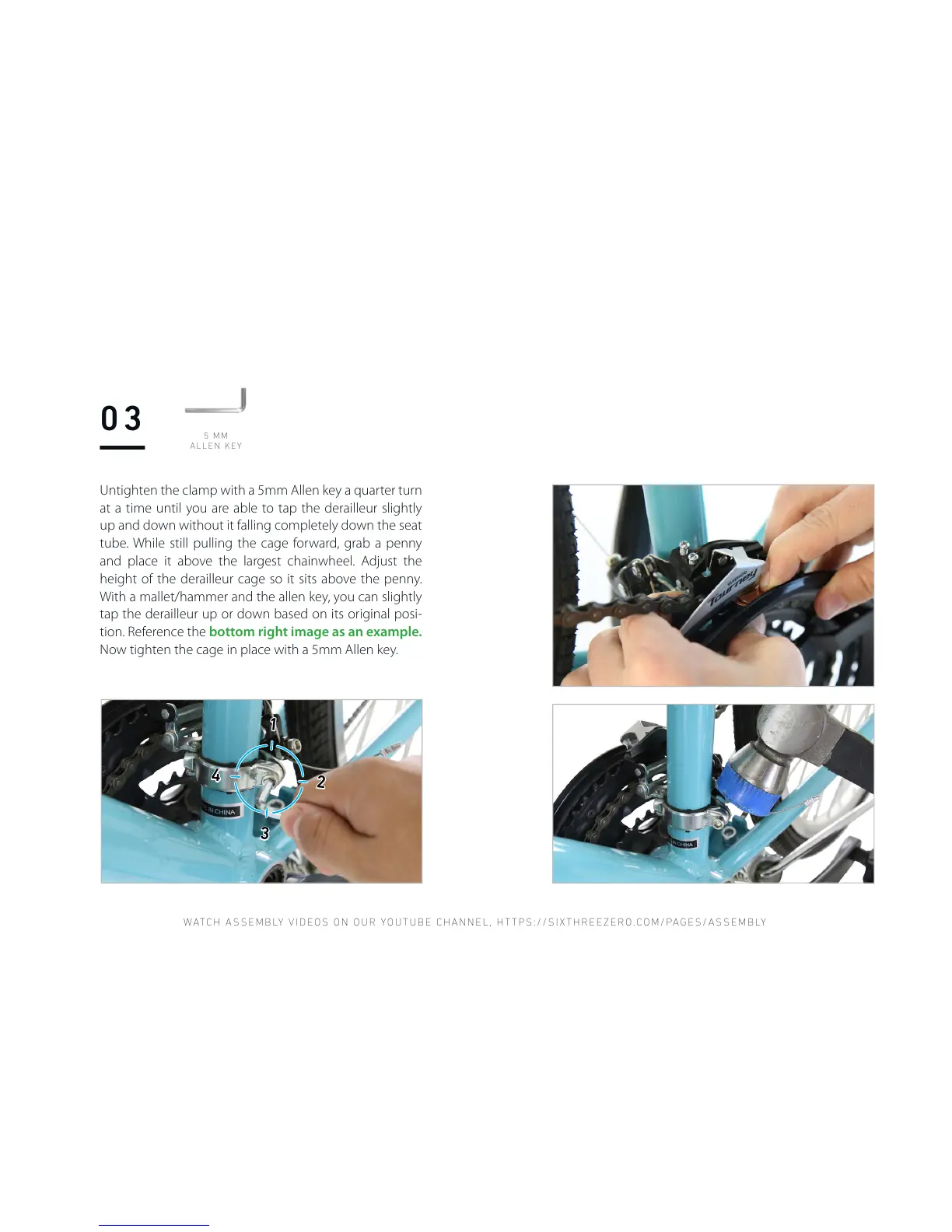

Untighten the clamp with a 5mm Allen key a quarter turn
at a time until you are able to tap the derailleur slightly
up and down without it falling completely down the seat
tube. While still pulling the cage forward, grab a penny
and place it above the largest chainwheel. Adjust the
height of the derailleur cage so it sits above the penny.
With a mallet/hammer and the allen key, you can slightly
tap the derailleur up or down based on its original posi-
tion. Reference the bottom right image as an example.
Now tighten the cage in place with a 5mm Allen key.
1
2
3
4
5 M M
ALLEN KEY
