WATCH ASSEMBLY VIDEOS ON OUR YOUTUBE CHANNEL, HTTPS://SIXTHREEZERO.COM/PAGES/ASSEMBLY
5 M M
ALLEN KEY

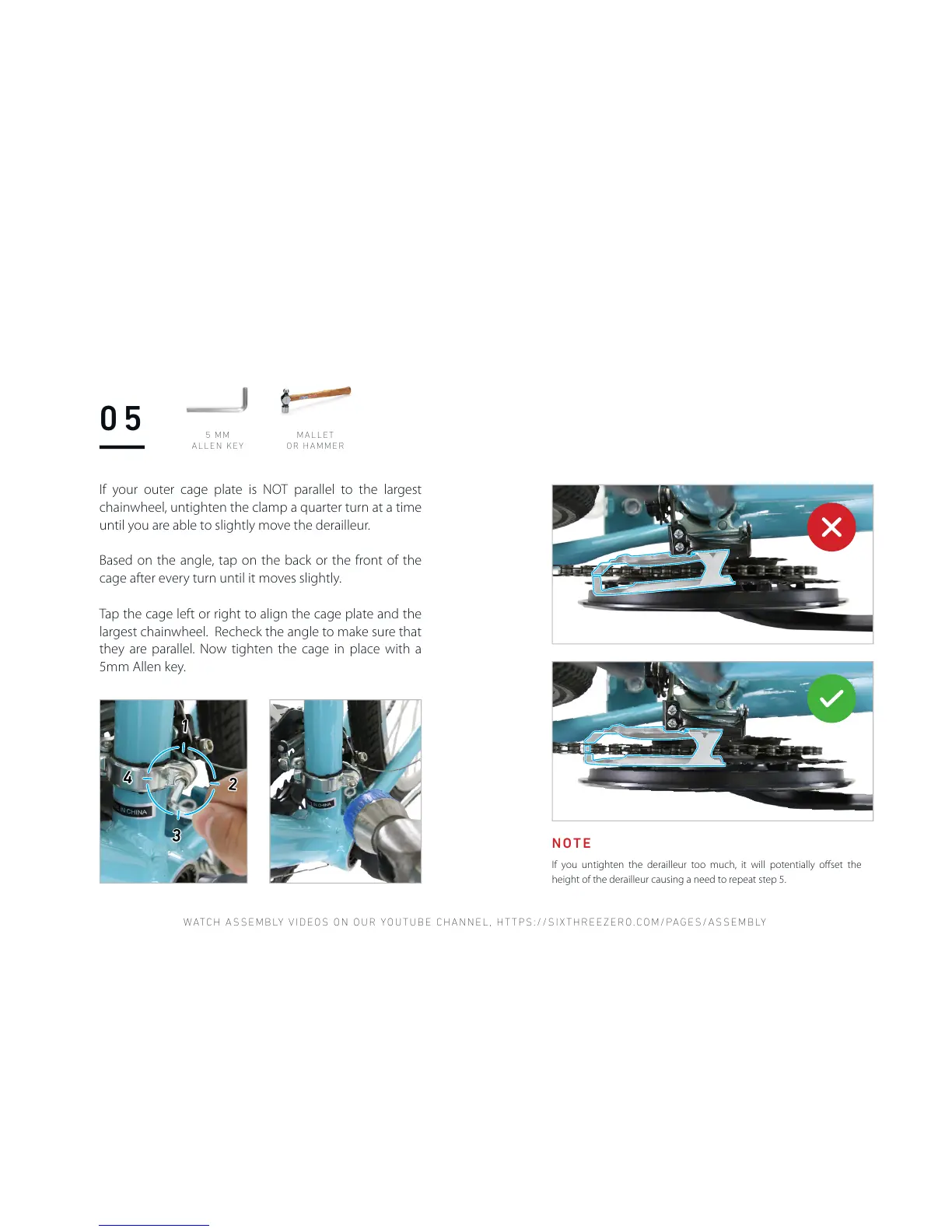

If your outer cage plate is NOT parallel to the largest
chainwheel, untighten the clamp a quarter turn at a time
until you are able to slightly move the derailleur.
Based on the angle, tap on the back or the front of the
cage after every turn until it moves slightly.
Tap the cage left or right to align the cage plate and the
largest chainwheel. Recheck the angle to make sure that
they are parallel. Now tighten the cage in place with a
5mm Allen key.
05
MALLET
OR HAMMER
If you untighten the derailleur too much, it will potentially offset the
height of the derailleur causing a need to repeat step 5.
NOTE
