loads acting on a plummer block housing
are between 55° and 120° († fig. 2),
SKF ConCentra ball bearing units should be
doweled to the support surface or stops
should be provided in the direction of the
load. Recommendations for the position and
size of the dowel pin holes are provided in
table 2.
SKF ConCentra ball bearing units with
flanged housings have two or four drilled
holes to attach the housing to its support
surface. For applications where there are
heavy loads, SKF recommends doweling the
housing to its support surface. Dimples for
the dowel pin holes are cast into housings in
the SY, FY and FYTB series. Information on
the position and size of the holes for these
dowel pins is provided in table 3.

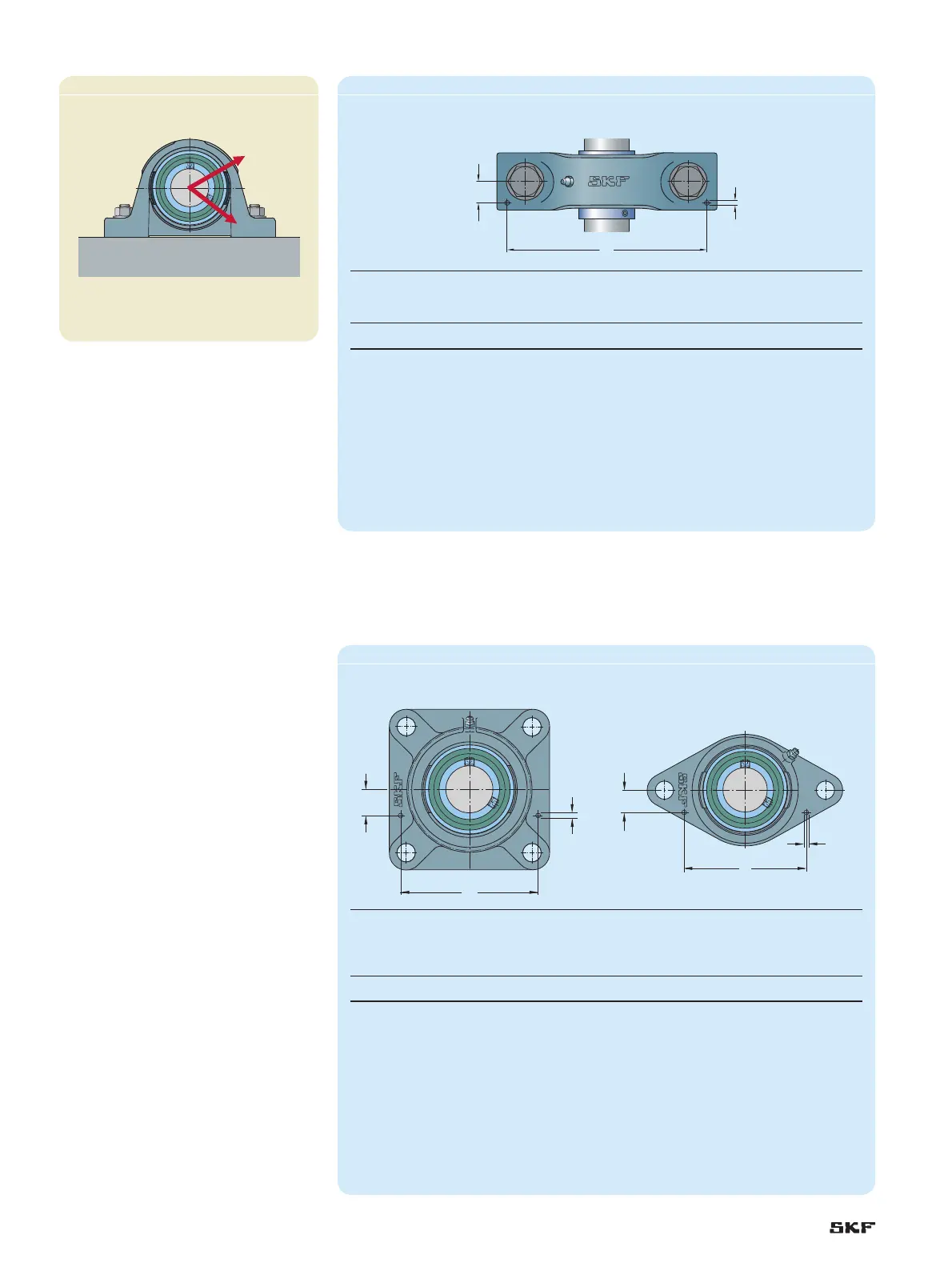

Table 2
Position and size of dowel pin holes for SKF ConCentra plummer block units
Housing size
Dimension for SKF ConCentra plummer block housings
J6 J7 N4
–
mm
505 120 13 2
506 140 14 2
507 146 15,5 4
508 161 17 4
509 173 17 4
510 187 19 5
511 201 21 5
512 222 21 5
513 236 22,5 5
Table 3
Position and size of dowel pin holes for SKF ConCentra flanged units
Housing size
Dimension for SKF ConCentra flanged housings
FY series FYTB, FYT series
J6 J7 N4 J6 J7 N4
–
mm
505 83 19 4 81 12 4
506 96 24,5 4 99 12,5 4
507 106 29 4 106 15 5
508 118 34 4 116 16 6
509 123 33.5 5 120 18 6
510 129 35.5 5 127 20 6
511 148 45 5 154 18 6
512 161 49,5 5 – – –
513 169 51 6 – – –
J
7
J
6
N
4
J
7
J
6
N
4
J
6
J
7
N
4
P
120
P
55
