4.3 Pump elements
4.3.1 KFG/KFGS pump elements
KFG and KFGS pump units can be equipped
with up to three pump elements. Each pump
element has a connector for, e.g., connecting
an independent progressive feeder. A grease
return can be attached in place of a pump
element.
Close any outlets which are not required using
a DIN 910-M20x1.5-5.8 screw plug with a
DIN 7603-A20x24-Al washer.
The pump elements must be ordered accord-
ing to the required delivery rate.
4.3.2 KFGC (CAN bus) pump elements
3/2 directional solenoid valves can be em-
ployed so that lubricant connections can also
return the lubricant into the reservoir from
lubricant outlets which are not required at the
moment.
Close any outlets which are not required using
a DIN 910-M20x1.5-5.8 screw plug with a
DIN 7603-A20x24-Al washer.
4.3.3 Installing a pump element
Pump units of the KFG, KFGS und KFGC (CAN
bus) series are generally delivered with pump
elements installed.
Perform the following to later add or replace a
pump element:
• Turn off pump unit.
• Loosen up and remove the screw plug.
1
2
3

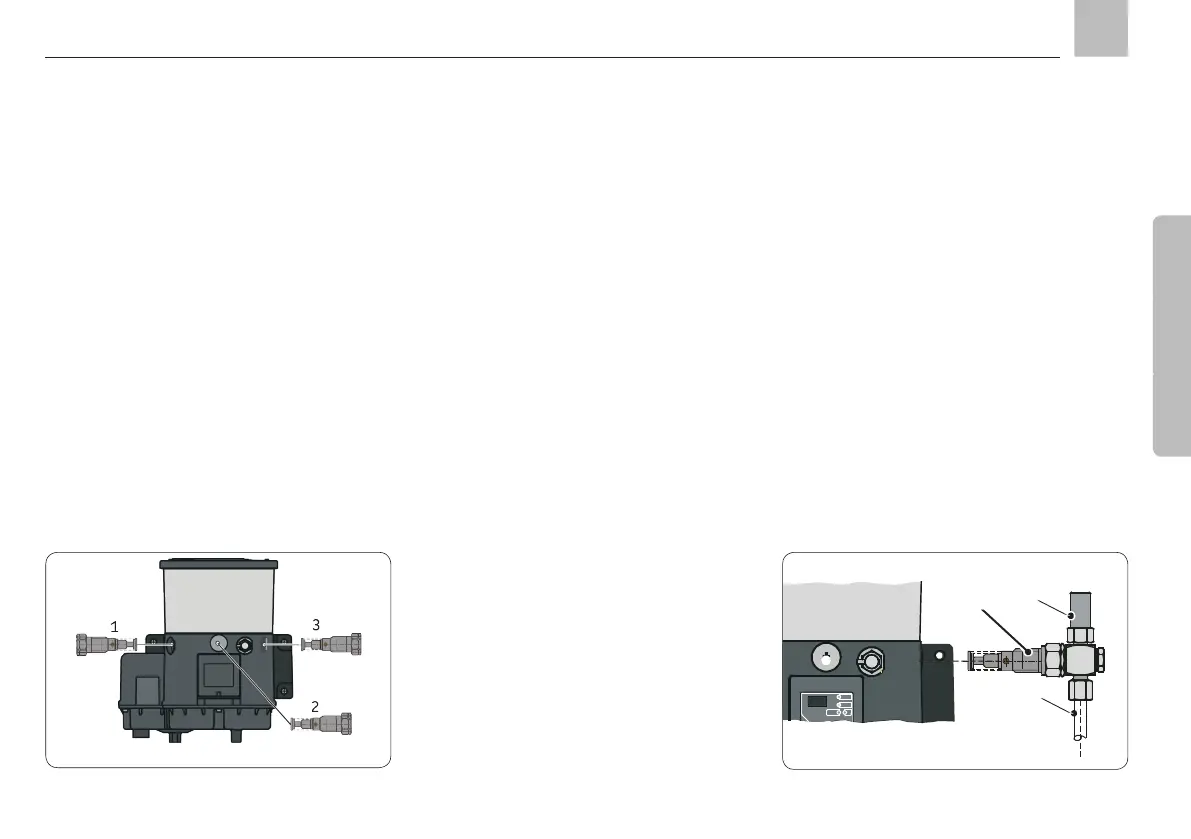

Pump element replacement
Then perform the following:
• Loosen and remove pressure regulat-
ing valve (2) (or lubrication line (3)) on an
already mounted pump element (1).
• Loosen and remove mounted pump
element (1).
• Insert new pump element (1) into housing
hole and twist in by hand.
• Tighten pump element (1) at a torque
of 35 Nm.
• Switch on pump and leave running until
grease without bubbles discharges from the
pump element outlet.
• Reconnect pressure regulating valve (2) (or
lubrication line (3)) to the pump element (1)
and tighten at a torque of 25 Nm.
Possible layout of the three pump elements
Assembly instructions
KFGS
KFG
KFGC
