Page 29
EN
4.5.3.1 Power supply 12-/24 VDC4.5.3 KFGS series
with integrated control
The KFGS pump unit is available in the voltage
designs 12V und 24VDC.

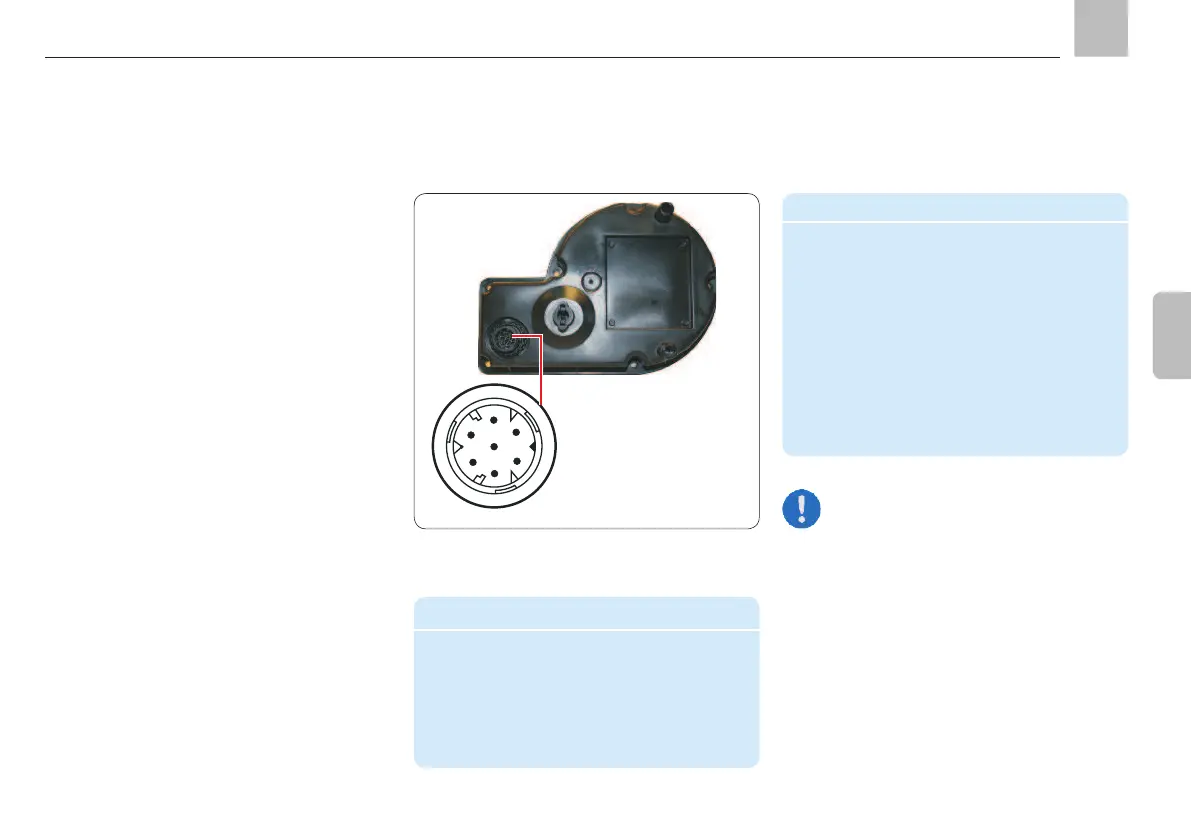

The electrical connection is established via a
7-pin plug-in connection on the underside of
the pump unit
The pump control unit can run in the following
control modes:
Counter operation without system
monitoring
Counter operation with system
monitoring
Timer operation without system
monitoring
Timer operation with system
monitoring
2
4
5
3
1
6
7
Connector pin assignment
PIN Color code Conductor coloring
1 BN brown
2 RD-BK red-black
3 BU Blue
4 PK pink
5 YE yellow
6 BK black
7 VT-GN purple-green
Power supply through 7-pin round plug
Note
The connector pin assignment depends
pins and therefore assigned accord-
ing to the following examples, listed in
Chapter
4.5.3.2.
Unneeded conductor ends on the cable
set must be individually insulated and
secured so that no short to ground can
occur.
Accessories
Description Order No.
Wiring harness, in corrugated pipe,
with socket-outlet on pump side
12 m length 997-000-630
16 m length 997-000-650
Assembly instructions
KFGS
