CAN bus connector pin assignment
PIN Color code Function
A YE yellow CAN_H
B GN green CAN-B
C BK black CAN-SHLD

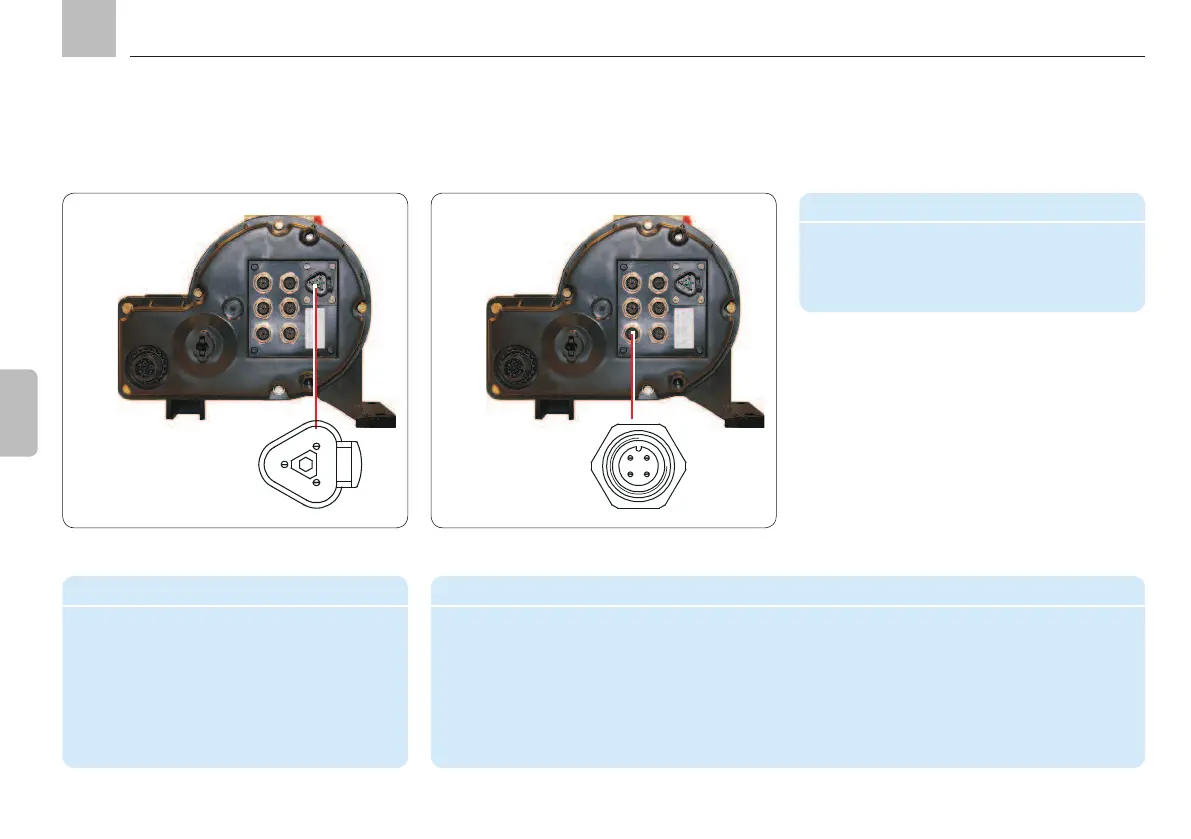

CAN bus connection, plug type DEUTSCH DT04-3P-L012
A
B
C
Connection for reversing valve/piston detector (max. 6 connections)
Accessories for reversing valve/piston detector
Description Order No.
Cable harness with socket
approx. 2 m 997-000-734
34
1 2
Connector pin assignment for reversing valve/piston detector
PIN Color code Input Cs2/Cs3 Output VT1 to VT3
1 BN brown + NC
2 WH white NC NC
3 Bu blue NC -
4 BK black - +
Assembly instructions
KFGC
