Designation TKBA 10 TKBA 20 TKBA 40
Type of laser
Red laser diode Green laser diode Red laser diode
Laser
1™ Built-in class 2 laser, <1 mW, 635 nm 1™ Built-in class 2 laser, <1 mW, 532 nm 1™ Built-in class 2 laser, <1 mW, 632 nm
Laser line length
2 m at 2 m (6.6 ft at 6.6 ft) 2 m at 2 m (6.6 ft at 6.6 ft) 3 m at 2 m (9.8 ft at 6.6 ft)
Measurement accuracy angular
Better than 0,02° at 2 m (6.6 ft) Better than 0,02° at 2 m (6.6 ft) Better than 0,2°
Measurement accuracy offset
Better than 0,5 mm (0.02 in.) Better than 0,5 mm (0.02 in.) Better than 0,5 mm (0.02 in.)
Measurement distance
50 mm to 3 000 mm (2 in. to 10 ft) 50 mm to 6 000 mm (2 in. to 20 ft) 50 mm to 6 000 mm (2 in. to 20 ft)
Control
Laser on/off rocker switch Laser on/off rocker switch Laser on/off switch
Housing material
Aluminum, powder coat finish Aluminum, powder coat finish Extruded aluminium
Dimensions
Transmitter unit
Receiver unit
Reflector dimensions
169 ™ 51 ™ 37 mm (6.65 ™ 2.0 ™ 1.5 in.)
169 ™ 51 ™ 37 mm (6.5 ™ 2.0 ™ 1.5 in.)
22 ™ 32 mm (0.9 ™ 1.3 in.)
169 ™ 51 ™ 37 mm (6.65 ™ 2.0 ™ 1.5 in.)
169 ™ 51 ™ 37 mm (6.5 ™ 2.0 ™ 1.5 in.)
22 ™ 32 mm (0.9 ™ 1.3 in.)
70 ™ 74 ™ 61 mm (2.8 ™ 2.9 ™ 2.4 in.)
96 ™ 74 ™ 61 mm (3.8 ™ 2.9 ™ 2.4 in.)
N/A
Weight
Transmitter unit
Receiver unit
450 g (1.0 lbs)
430 g (0.9 lbs)
450 g (1.0 lbs)
430 g (0.9 lbs)
320 g (0.7 lbs)
270 g (0.6 lbs)
Mounting
Magnetic, side mounted Magnetic, side mounted Magnetic, groove mounted
(optional side adapter TMEB A2)
V-guides
N/A N/A
Size 1: 22 mm, short rods (3™ pairs)
Size 2: 22 mm, long rods (3™ pairs)
Size 3: 40 mm, short rods (3™ pairs)
Size 4: 40 mm, long rods (3™ pairs)
Battery
2™ AAA Alkaline type IEC LR03 2™ AAA Alkaline type IEC LR03 2™ AA Alkaline type IEC LR06
Operation time
25 hours continuous operation 8 hours continuous operation 20 hours continuous operation
Carrying case dimensions
260 ™ 180 ™ 85 mm (10.2 ™ 7.1 ™ 3.3 in.) 260 ™ 180 ™ 85 mm (10.2 ™ 7.1 ™ 3.3 in.)
260 ™ 180 ™ 85 mm (10.2 ™ 7.1 ™ 3.3 in.)
Total weight (incl. case)
1,4 kg (3.1 lbs) 1,4 kg (3.1 lbs) 1,3 kg (2.9 lbs)
Operating temperature
0 to 40 °C (32 to 104 °F) 0 to 40 °C (32 to 104 °F) 0 to 40 °C (32 to 104 °F)
Storage temperature
–20 to +60 °C (–4 to +140 °F) –20 to +60 °C (–4 to +140 °F) –20 to +65 °C (–4 to +150 °F)
Relative humidity
10 to 90% RH non-condensing 10 to 90% RH non-condensing 10 to 90% RH non-condensing
IP rating
IP 40 IP 40 IP 40
Calibration certificate
Valid for two years Valid for two years Valid for two years
Case contents
1™ TKBA 10 transmitter unit
1™ TKBA 10 receiver unit
2™ AAA batteries
1™ Printed instructions for use
1™ Calibration certificate
1™ TKBA 20 transmitter unit
1™ TKBA 20 receiver unit
2™ AAA batteries
1™ Printed instructions for use
1™ Calibration certificate
1™ TKBA 40 transmitter unit
1™ TKBA 40 receiver unit
2™ AA batteries
4™ sizes of V-guides, 3™ of each size
1™ Printed instructions for use
1™ Calibration certificate

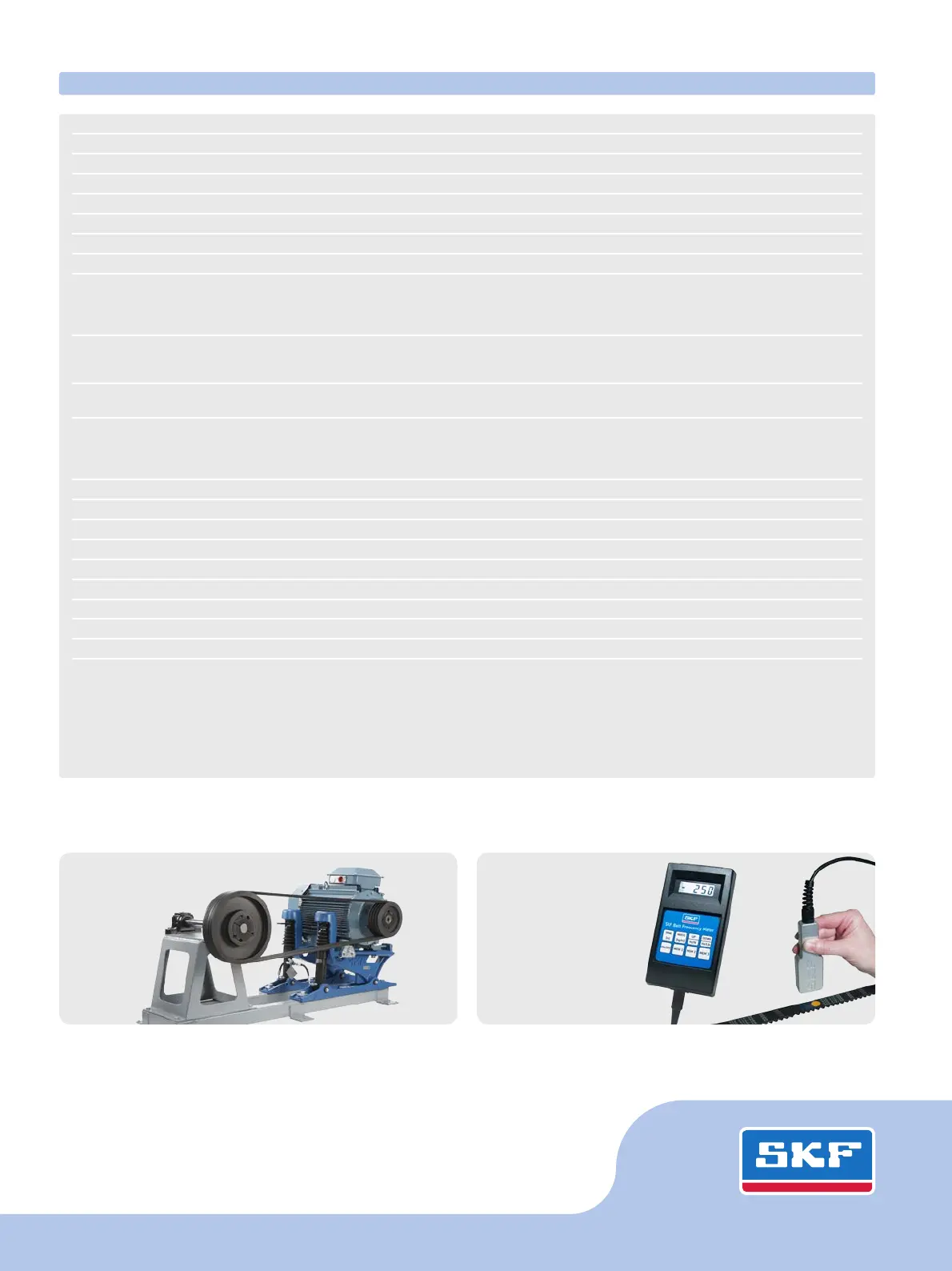

Technical data
For additional information, please refer to our publications 6804 EN (6702 EN) and 6479 EN or online at: www.skfptp.com
Also available from SKF
SKF Belt Tension System SKF Belt Frequency Meter
