Section 04 ENGINE
Sub-Section 12 (FUEL TANK AND THROTTLE CABLE)
04-12-2

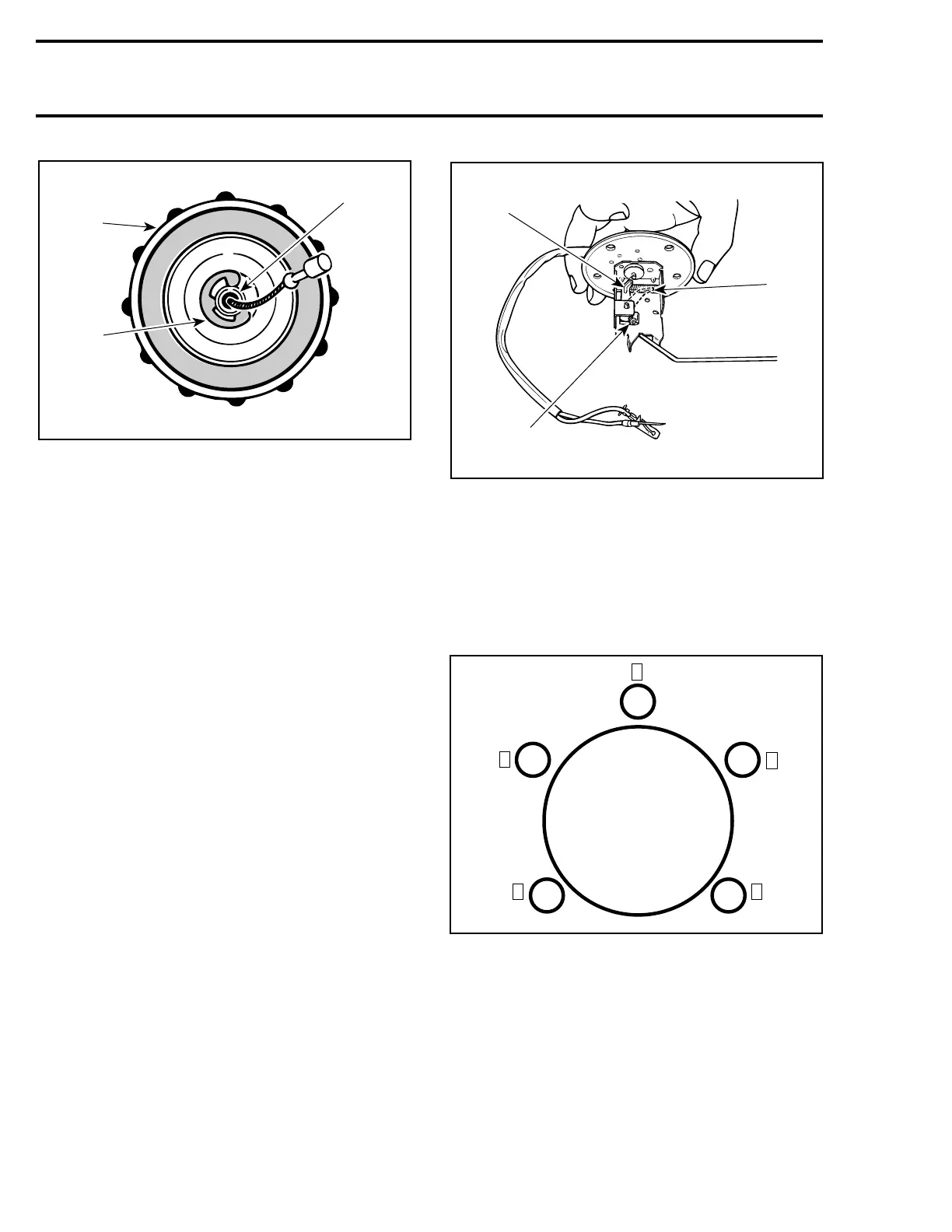

1. Carburetor cover
2. Throttle cable housing
3. Retaining ring
Adjust throttle cable as specified in CARBURE-
TOR AND FUEL PUMP 04-08.
Throttle Cable Routing
CAUTION : Check that throttle cable is
routed away from sharp, edges, hot or vi-
brating parts. When turning steering while en-
gine is running, idle speed must not vary.
Fuel Level Sensor
INSPECTION
Visually inspect the condition of connectors and
wiring throughout the circuit. Connections must
be clean and tight, and wiring free of damage. Re-
pair as necessary. Use silicone dielectric grease to
prevent corrosion at the connectors. Operate the
engine to see if the problem has been corrected.
If not, remove fuel tank cap and lift float using a
rigid wire. Check resistance at full position (3
± 2
Ω) and resistance at empty position (110
± 7 Ω).
1. Full position (3
±
2
Ω
)
2. Empty position (110
±
7
Ω
)
3. Slacken to adjust
Fuel Level Sensor Screws (Some
Models)
Torque fuel level sensor retaining screws to 1
N•m (8 lbf•in) in the sequence shown and then to
2.5 N•m (22 lbf•in), using the same sequence.
A02C0DA
2
1
3
A01E18A
1
3
2
A14C02A
1
3
5
4
2
