Section 05 TRANSMISSION
Sub-Section 01 (DRIVE BELT)
05-01-1
DRIVE BELT 1
1996 APPLICATION CHART

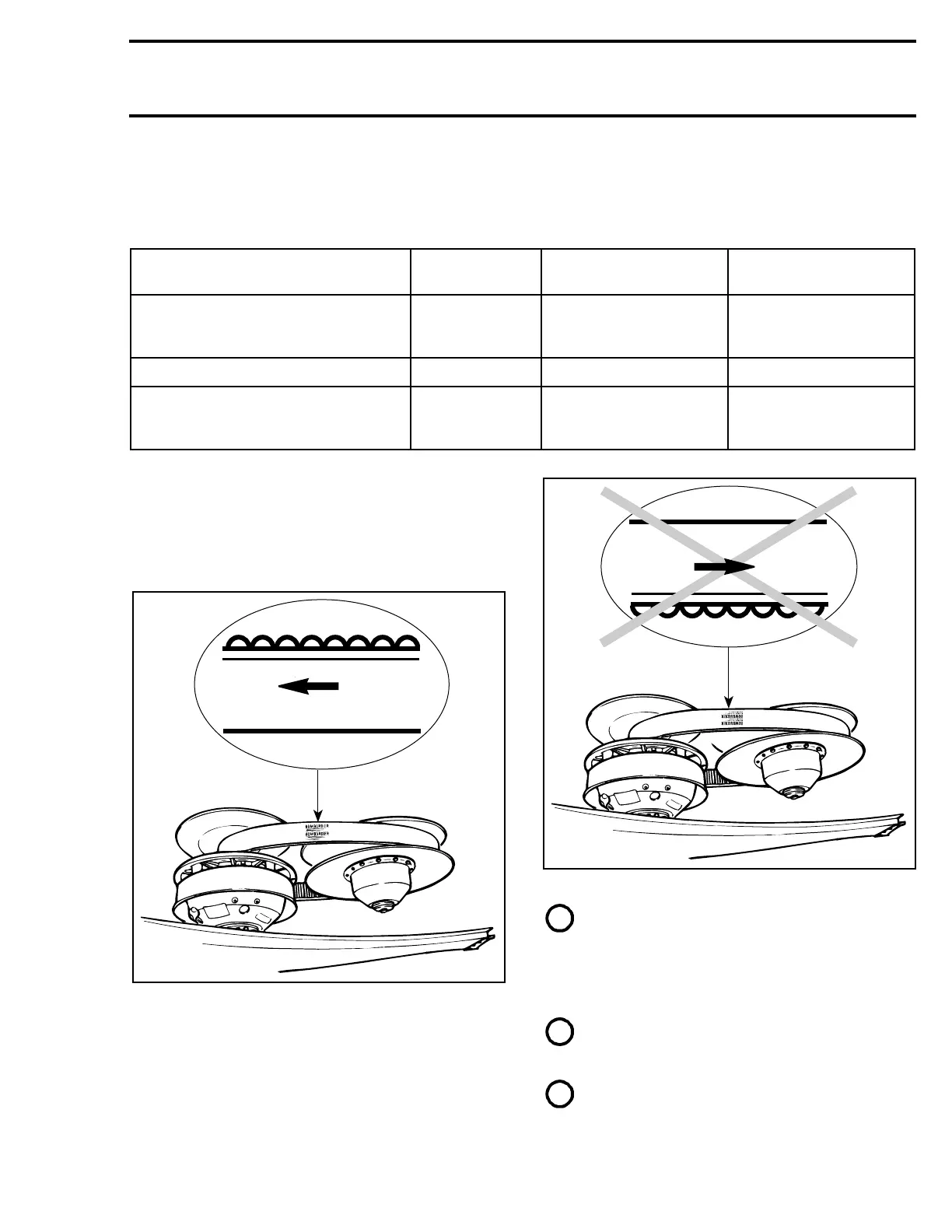

ROTATION DIRECTION
The maximum drive belt life span is obtained
when the drive belt is installed as shown. This will
ensure that correct direction of rotation is respect-
ed.
CORRECT
INCORRECT
NOTE : For used drive belt, mark and rein-
stall in the same position.
DRIVE BELT DEFLECTION
MEASUREMENT
NOTE : The drive belt deflection measure-
ment must be performed each time a new
drive belt is installed.
NOTE : To obtain an accurate drive belt de-
flection measurement, it is suggested to al-
low a break-in period of 50 km (30 mi).
MODEL
PART
NUMBER
WIDTH (NEW)
± 0.25 mm (.010 in)
MINIMUM WIDTH
(WEAR LIMIT)
MX Z 440 / 583
FORMULA Z
SUMMIT 583
414 8607 00 35 mm (1-3/8’’) 32.5 mm (1-9/32’’)
SKANDIC WT 414 6175 00 34.6 mm (1-3/8’’) 32 mm (1-1/4’’)
FORMULA SS, SUMMIT 670,
MX Z 670, FORMULA III / III LT
and MACH Z / Z LT
414 9182 00 35.5 mm (1-25/64’’) 33 mm (1-19/64’’)
BOMBARDIER
FABRIQUÉ AU CANADA
MADE IN CANADA
BOMBARDIER
FABRIQUÉ AU CANADA
MADE IN CANADA
A01D2KA
BOMBARDIER
FABRIQUÉ AU CANADA
MADE IN CANADA
BOMBARDIER
FABRIQUÉ AU CANADA
MADE IN CANADA
A01D2LA
