Section 05 TRANSMISSION
Sub-Section 04 (PULLEY DISTANCE AND ALIGNMENT)
05-04-2

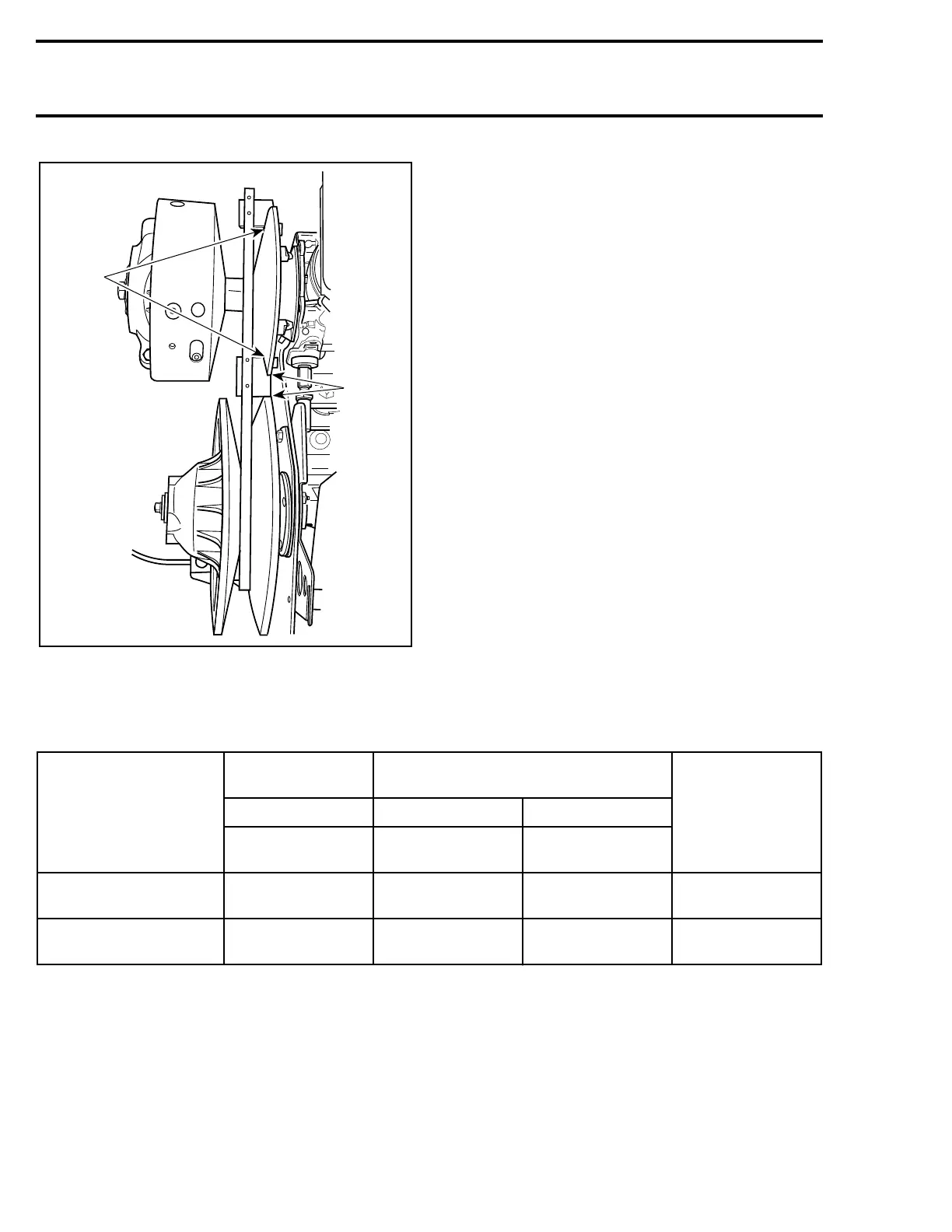

TYPICAL
1. Contact (alignment)
2. Contact (distance)
Drive Belt Deflection
NOTE : When pulley distance and alignment
are adjusted to specifications, refer to DRIVE
BELT 05-01 to adjust drive belt deflection.
CAUTION : This section deals mainly with
ad-justment procedures. For complete as-
sembly requirements, refer to the proper EN-
GINE or TRANSMISSION installation section.
PULLEY ALIGNMENT AND DISTANCE SPECIFICATIONS CHART
➀ Alignment templates have been made according to pulley alignment nominal values. However, they do not take
into account allowed tolerances for alignment specifications. They are used as GO / NO GO gauges for quick
alignment and pulley distance check and as templates to reach alignment nominal values.
A06D0LA
1
2
'
-
MODEL
PULLEY
DISTANCE
OFFSET
ALIGNMENT
TEMPLATE
¿
P / N
ZXY-X
+ 0, − 1 mm
(+ 0, − 0.040 in)
± 0.50 mm
(0.020 in)
± 0.5 mm
(0.020 in)
S-Series
and F-Series
16.5
(0.650)
35.0
(1.380)
1.5
(0.060)
529 0267 00
Skandic WT
32.75
(1.289)
36.25
(1.427)
1.5
(0.060)
529 0267 00

Ski-Doo Mach Z Specifications

General

Engine Displacement	899 cc
Horsepower	180 hp
Track Length	137 inches
Track Width	15 inches
Cylinders	2
Engine Stroke	2-Stroke
Cooling	Liquid
Fuel System	Electronic Fuel Injection (EFI)
Seating Capacity	1
Fuel Capacity	10.6 gallons
Brake System	Hydraulic
