Section 06 ELECTRICAL
Sub-Section 05 (ELECTRIC STARTER)
06-05-3

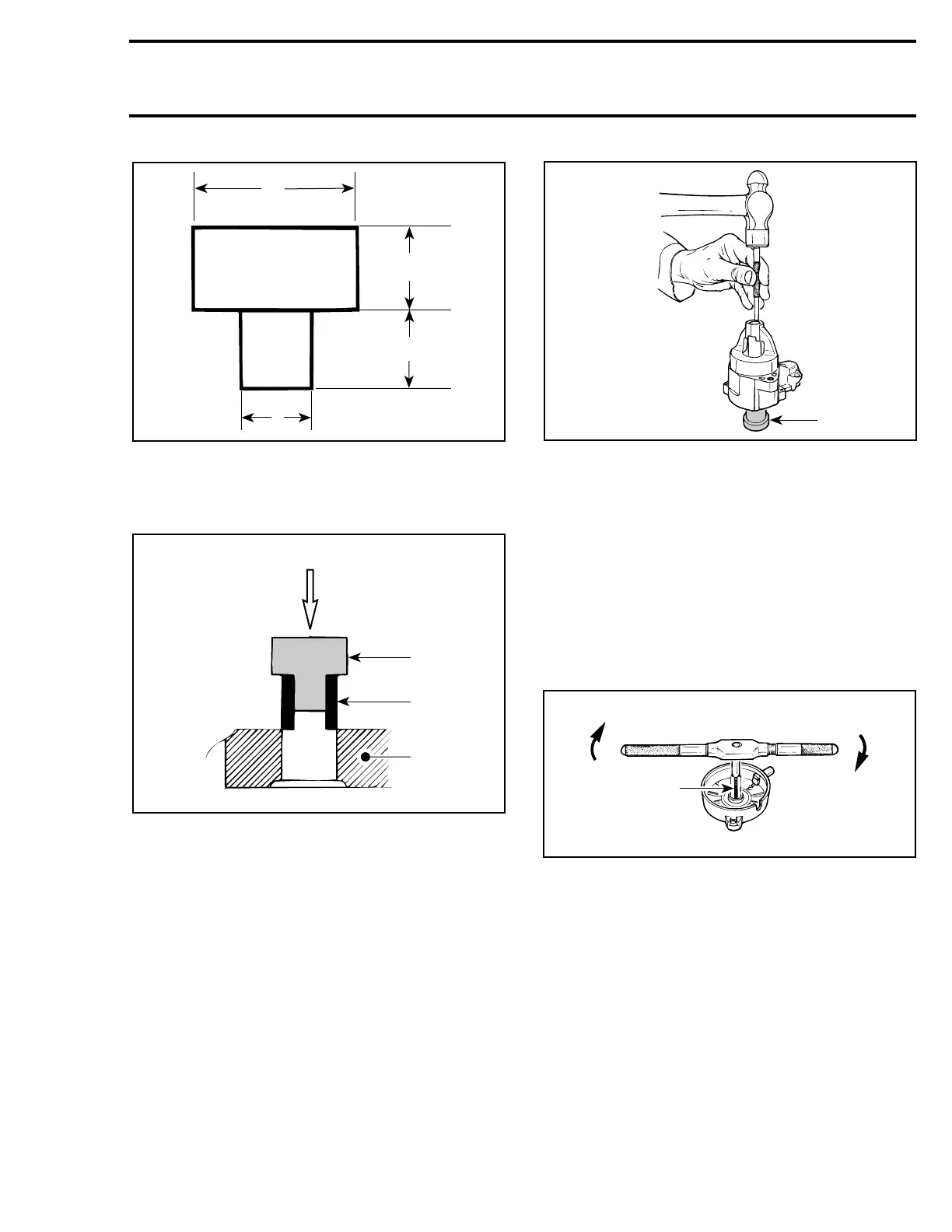

BUSHING PUSHER
A. 16 mm (5/8 in) dia.
B. 13 mm (1/2 in)
C. 11 mm (7/16 in)
D. 11 mm (.433 in) dia.
1. Press-in
2. Bushing pusher
3. Bushing
4. Drive housing
Install bushing cover then, using a punch, stake
bushing cover in place.
1. Stake bushing cover
2. Support
3, Bushing (End Frame)
Check the wear on bushing by measuring the
amount of radial play between the armature shaft
and the bushing.
The radial play should not exceed 0.20 mm (.008
in). If greater, replace bushing as follows :
Using a 12 mm tap, cut threads into bushing so
that the tap contacts the end frame. Continue to
rotate tap until the bushing comes free.
1. Turn until bushing goes out
2. 12 mm tap
To install new bushing, use the same bushing
pusher as for drive housing bushing installation.
6, Brush
To replace, proceed as follows :
Cut brush wire close to connector at the welded
portion.
A19E0AA
B
C
D
A
D
A19E0BA
1
2
3
4
