Section 07 REAR SUSPENSION
Sub-Section 01 (SUSPENSION SC-10 HIGH PERFORMANCE, CROSS-COUNTRY AND
07-01-2
COMPONENT REMOVAL AND
INSTALLATION

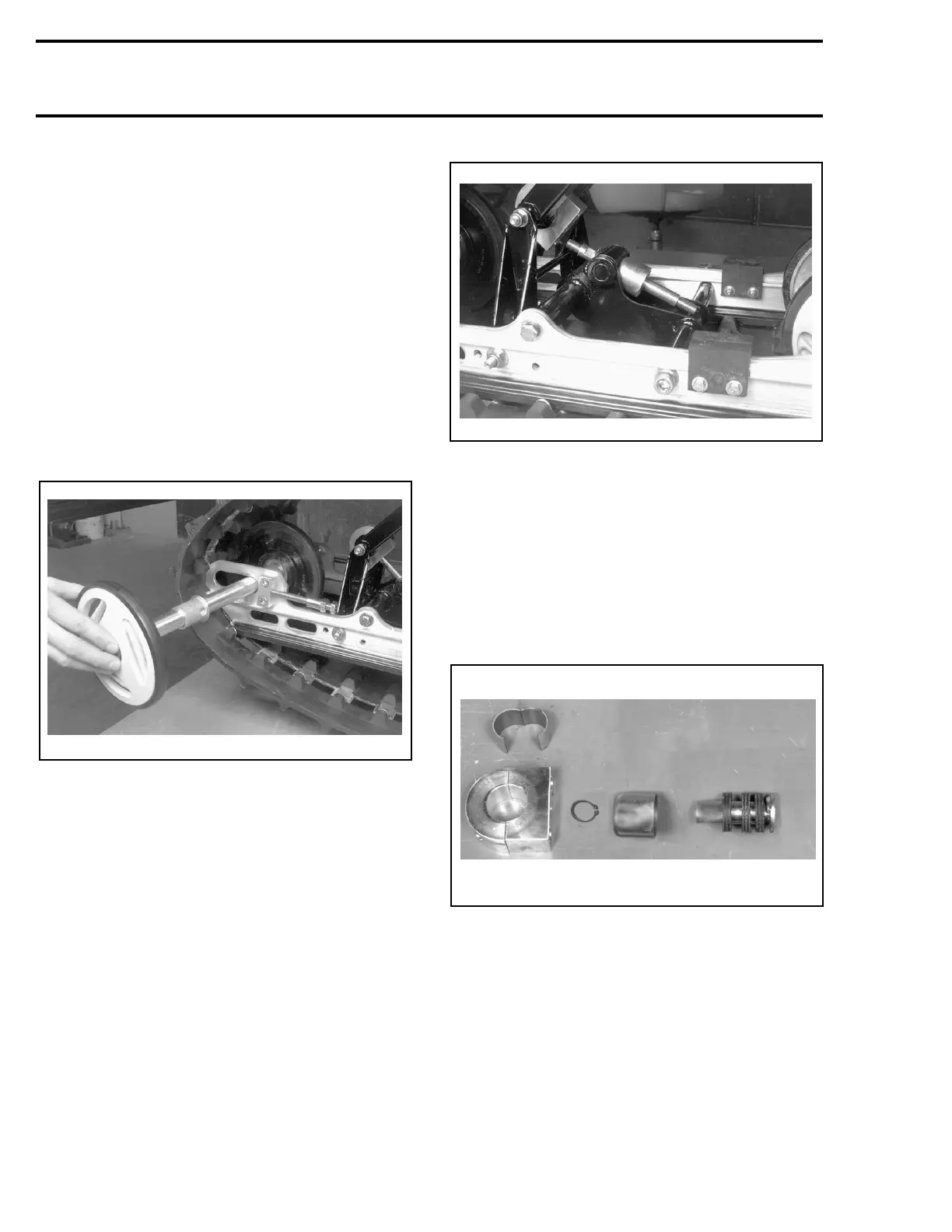

Lift rear of vehicle and support it off the ground.
21, Rear Axle
Completely loosen track tension.
Unscrew one rear idler wheel screw.
Pull out rear axle from opposite side of offset in-
ner wheel. Proceed either side for models with 4
wheels on rear axle.
At assembly, temporary loosen rear shackle lower
pivot nut and ACM (Acceleration and Control
Modulator) support rear bolt.
Align spacer hole with adjusting bolt.
TYPICAL
All Models Except Summit
22, Threaded Rod
Remove adjusting nut then unscrew threaded rod
from pivot block.
Remove threaded rod.
23, Cushion
After threaded rod removal, unscrew pivot block.
Remove cushion.
Apply lithium grease at reassembly.
24, Rubber Stopper
After threaded rod removal, unfasten circlip.
Remove bushing then rubber stoppers.
At assembly, match marked side of both pivot
blocks.
When cup is dissassembled, it may be too difficult
to install circlip before reinstalling this assembly.
Install all parts and the circlip loosely around
threaded rod. Compress rear of vehicle or lift the
front to easily install circlip in its groove.
A03F1LA
A03F1MA
A03F1NA
