Ski-Doo Mach Z User Manual

Section 07 REAR SUSPENSION
Sub-Section 01 (SUSPENSION SC-10 HIGH PERFORMANCE, CROSS-COUNTRY AND
07-01-3
25, MCA Support
Remove threaded rod. Loosen rear axle screw on
one side and rear shackle screws.
Unbolt MCA support and remove it.
Remove cup.
15, Rear Shock
Lift rear of vehicle.
Slightly turn adjusting cam to expose spring end.

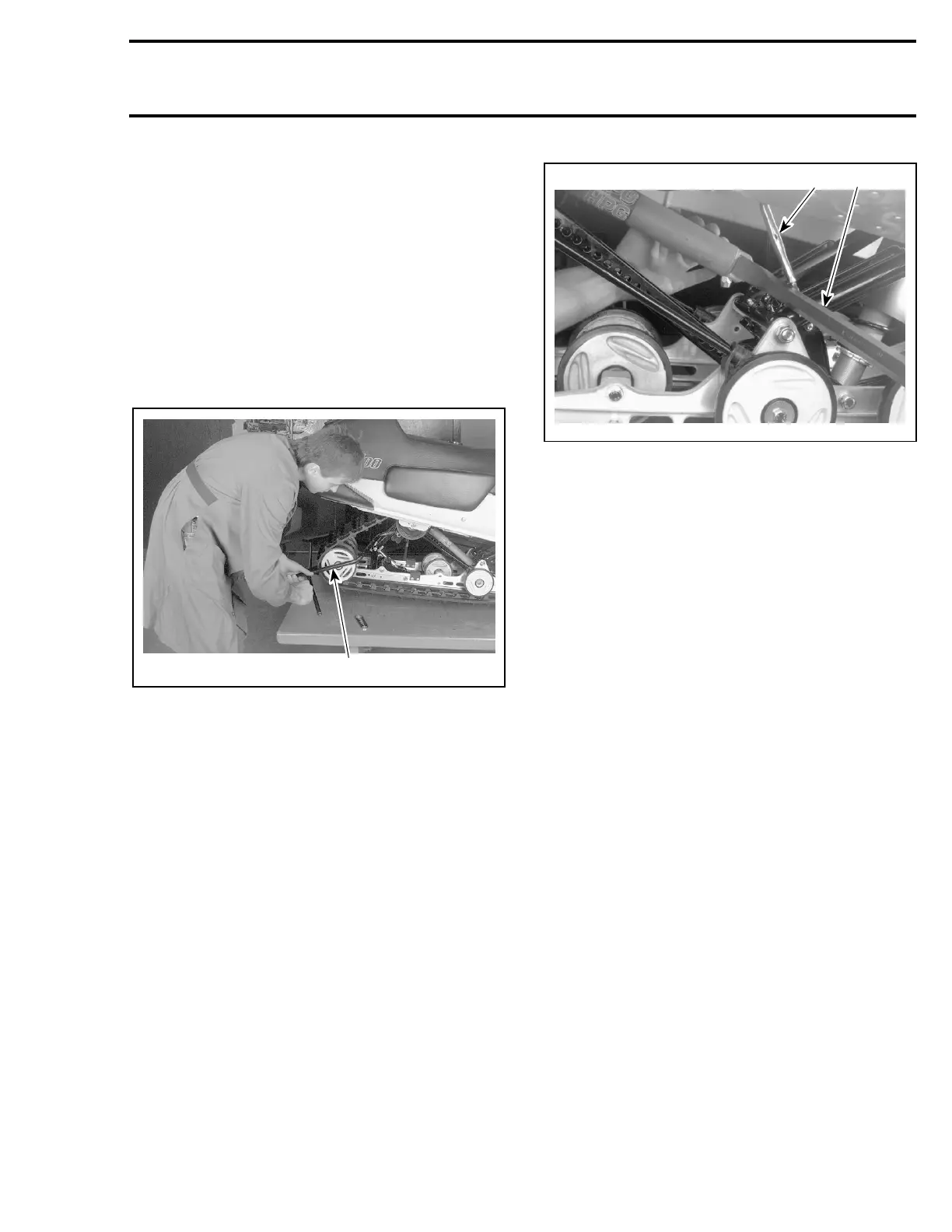

Using spring installer (P / N 529 0050 00), remove
left spring from adjusting cam.
Remove nut on top end of shock.
Remove nut on bottom end of shock. Pry up
shock bottom end to ease removing bolt. (gas
shock only). See installation illustration below.
Installation is reverse of removal procedure. To
easily compress gas shock absorber, use a pry bar
and locking pliers as a stopper.
CAUTION : Take care not to damage
grease fitting.
1. Locking pliers
2. Pry bar
All Models
12, Front Shock
Unbolt shock and remove it.
MX Z Only
At installation, Schrader valve must face rearward
and rubber boot forward.
.
All Models
2, Rear Spring
Remove spring ends from adjusting cams.
Unbolt rear arm top axle from chassis.
All Models Except Summit
Unscrew set screws from locking ring at each end
of top axle.
All Models
Remove locking rings (spacers on Summit) and
top idler wheels.
Remove springs.
A03F1OA
529 0050 00
-
A03F1PA
1
2

Ski-Doo Mach Z Specifications

General

Engine Displacement	899 cc
Horsepower	180 hp
Track Length	137 inches
Track Width	15 inches
Cylinders	2
Engine Stroke	2-Stroke
Cooling	Liquid
Fuel System	Electronic Fuel Injection (EFI)
Seating Capacity	1
Fuel Capacity	10.6 gallons
Brake System	Hydraulic
