Section 07 REAR SUSPENSION
Sub-Section 04 (DRIVE AXLE)
07-04-4
5,12, Bearing

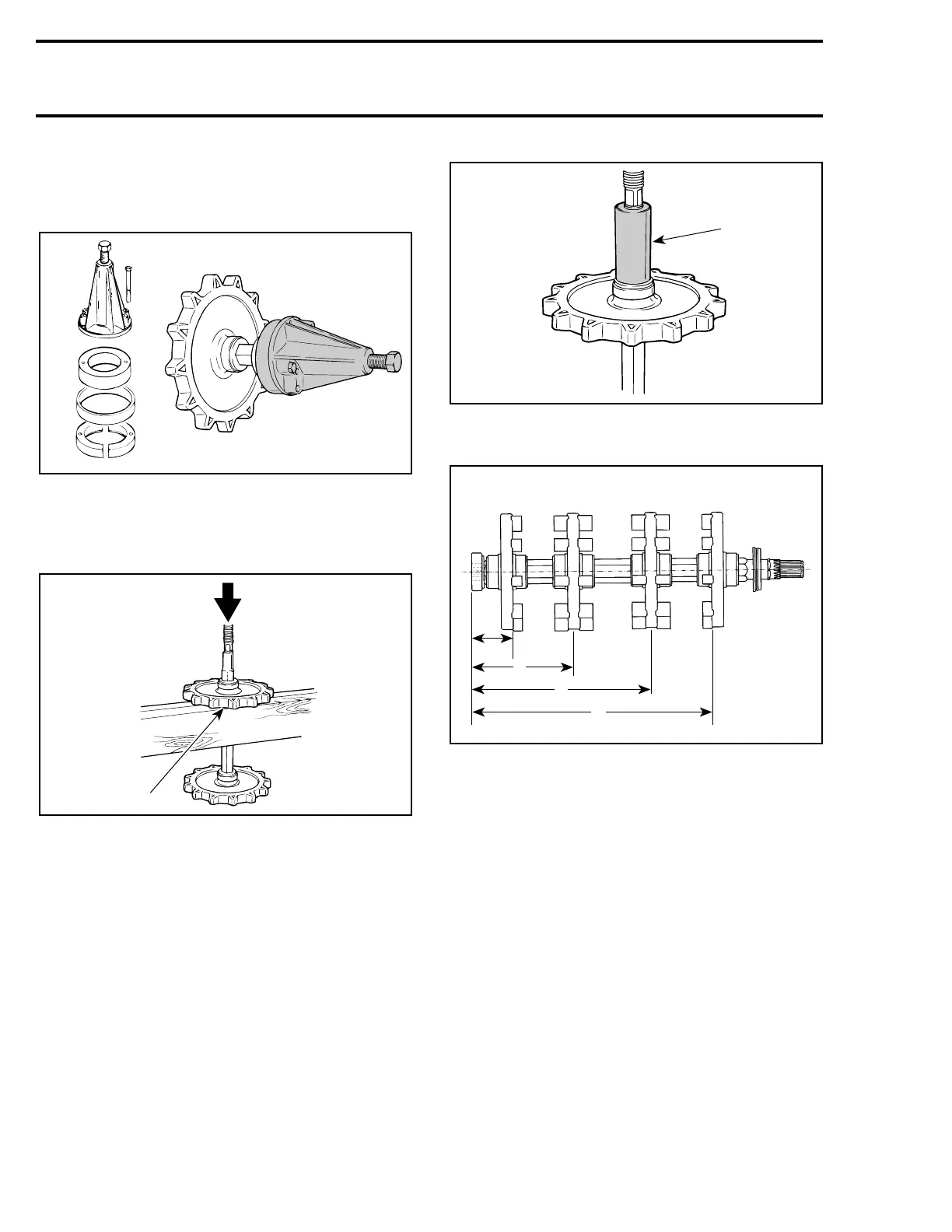

To remove bearings, use puller assembly, ring and
half rings as illustrated.
9,13, Sprocket and Half-Sprocket
To remove press fit sprockets, use a press and a
suitable support as illustrated.
TYPICAL
1. Support sprocket near hub
NOTE : Two different types of sprocket
press fit can be found. Ensure to replace ring
reinforced sprockets with the same type.
ASSEMBLY
8,9,13, Drive Axle and Sprocket
To assemble press fit sprockets, use a press and
a suitable pipe as illustrated. Sprockets must be
assembled according to the following dimen-
sions.
1. Pipe
S-Series and F-Series
A. 65.8 mm (2-19/32 in)
B. 159.3 mm (6-17/64 in)
C. 282.3 mm (11-7/64 in)
D. 375.8 mm (14-51/64 in)
A00C44A
A00F06A
1
'
A00F07A
1
A06D1XA
A
BB
C
D
