Section 08 STEERING / FRONT SUSPENSION
Sub-Section 01 (STEERING SYSTEM)
08-01-6
Skandic WT Only

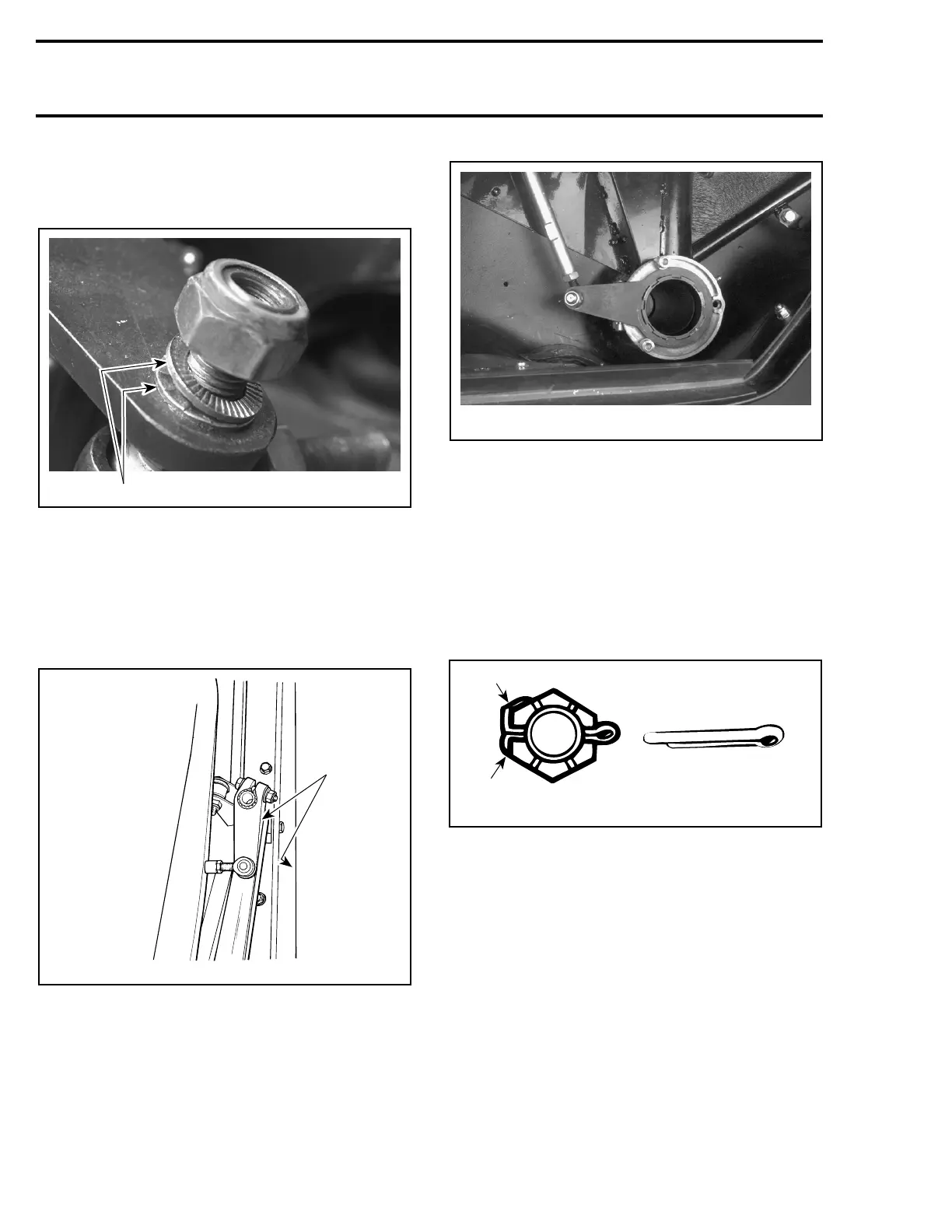

Install special washers (locking disks) with teeth
facing each others.
1. Large teeth
All Models Except Skandic WT
17, Steering Arm
The steering arm angles should be equal on both
sides when skis are parallel with vehicle.
Steering arm must run parallel to ski.
TYPICAL
1. Parallel
Tighten the steering arm pinch bolt to the torque
specified in the exploded view.
Skandic WT Only
Install steering arm at mid-travel position when
handlebar is facing straight ahead.
9,13,15, Ball Joint Nut and Jam Nut
Tighten ball joint, nuts and jam nuts to specified
torque (see exploded view).
9, F-Series Vehicles with a Castle Nut
After proper torque has been applied to the ball
joint nut, insert a cotter pin through the hole in the
tie rod end bending the ends around the nut as
shown in the following illustration.
1. New
2. Fold cotter pin over castellated nut flats only
11,12, Steering Arm Nut and Bolt
Tighten steering arm nuts to specified torque (see
exploded view).
ADJUSTABLE HANDLEBAR
1,3, Steering Column and Handlebar
If applicable, remove the steering clamp and nuts
holding the handlebar to the steering column.
2,4,5,6, Handlebar Support, Steering
Clamp, Bolt and Nut
Install the handlebar support, steering clamp, the
4 screws and nuts to the column, as illustrated.
A22G0MA
1
A06G02A
1
A22G0LA
A02D08A
1
2
