Section 09 BODY / FRAME
Sub-Section 01 (BODY)
09-01-1
BODY 1
INSTALLATION AND ADJUSTMENT

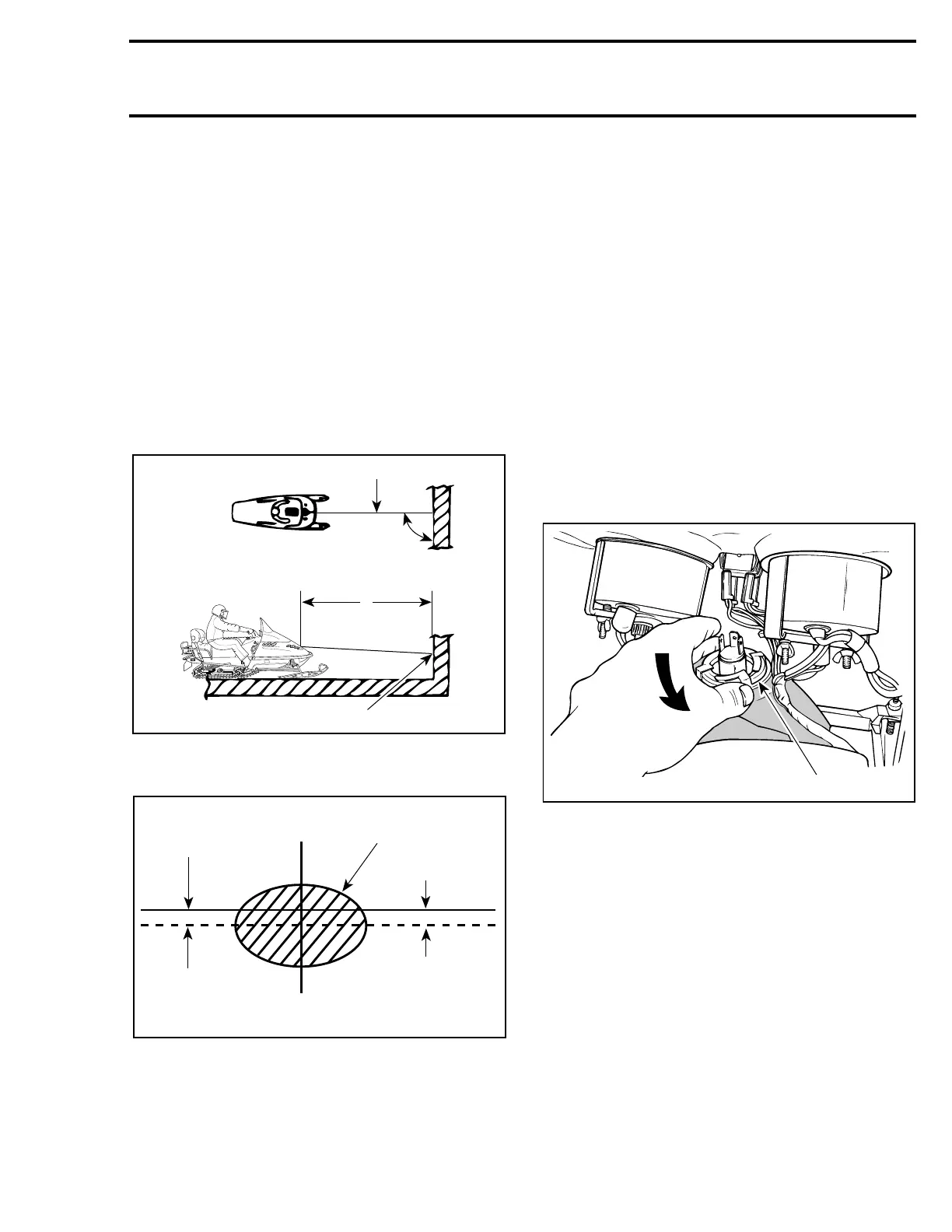

HEADLAMP BEAM AIMING
Beam aiming is correct when center of high beam
is 25 mm (1 in) below the headlamp horizontal
center line, scribed on a test surface, 381 cm (12
ft 6 in) away.
Measure headlamp center distance from ground.
Scribe a line at this height on test surface (wall or
screen). Light beam center should be 25 mm (1 in)
below scribed line.
1. Headlamp center line
A. 381 cm (12 ft 6 in)
B. 25 mm (1 in) below center line
1. Headlamp horizontal
2. Light beam (high beam) (projected on the wall)
3. Light beam center
A. 25 mm (1 in)
Required Conditions
Place the vehicle on a flat surface perpendicular to
test surface (wall or screen) and 381 cm (12 ft 6
in) away from it.
Rider or equivalent weight must be on the vehicle.
Select high beam.
BULB REPLACEMENT
If headlamp bulb is burnt, tilt cab and unplug the
connector from the headlamp. Remove the rub-
ber boot and unfasten the bulb retainer clips or
locking ring.
TYPICAL
1. Locking ring
Replace bulb. If the taillight bulb is burnt, expose
the bulb by removing red plastic lens. To remove,
unscrew the 2 retaining screws. Verify all lights
after replacement.
CAUTION : Never touch glass portion of
an halogen bulb with bare fingers, as it
shortens its operating life. If by mistake glass
is touched, clean it with isopropyl alcohol
which will not leave a film on the bulb.
A02E0AA
1
B
90°
AA
A02E07A
2
A
1
3
A25H0JA
1
-
