Section 02 LUBRIFICATION AND MAINTENANCE
Sub-Section 01 (LUBRICATION AND MAINTENANCE CHART)
02-01-5

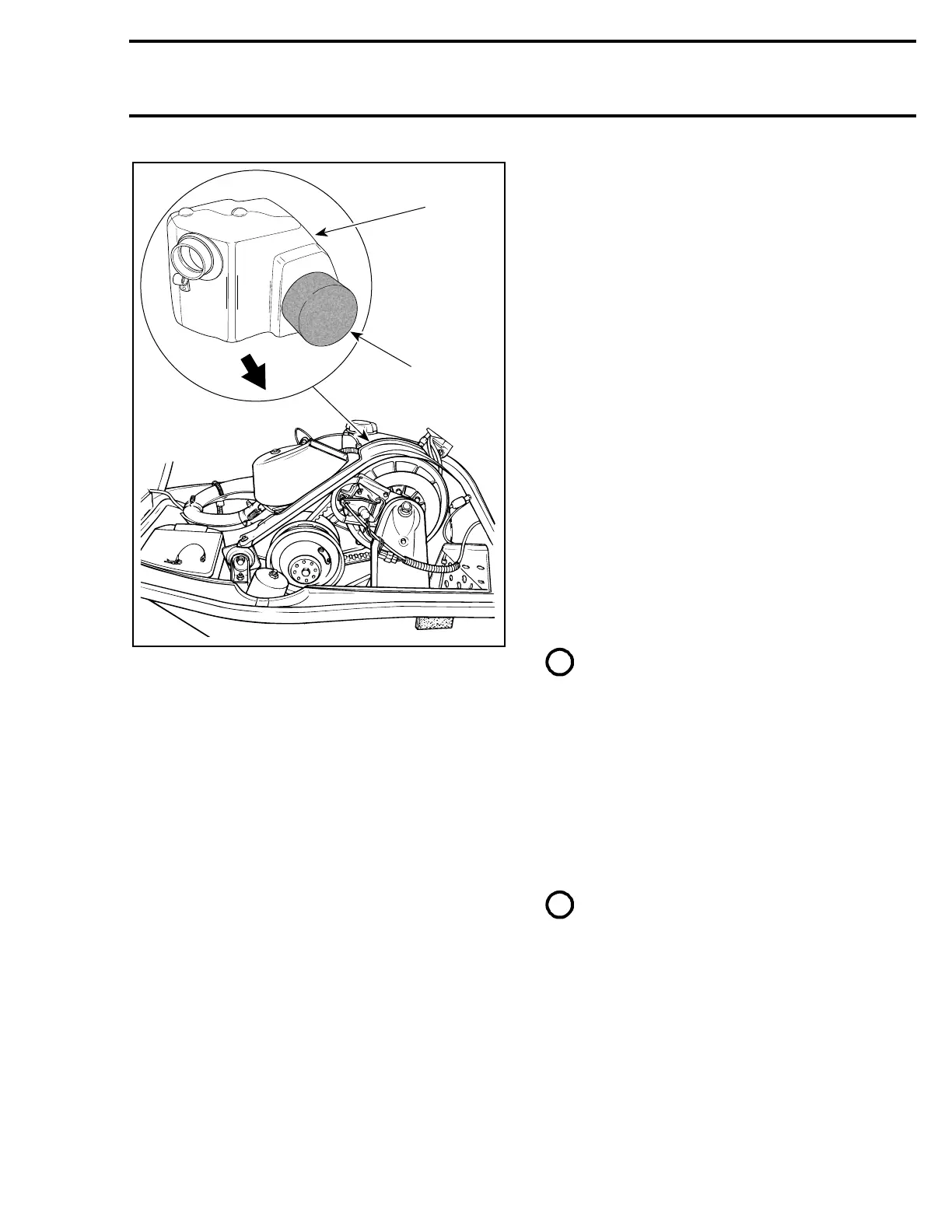

1. Intake silencer
2. Air filter
NO. 5 DRIVE BELT CONDITION
Inspect belt for cracks, fraying or abnormal wear
(uneven wear, wear on one side, missing cogs,
cracked fabric). If abnormal wear is noted, proba-
ble cause could be pulley misalignment, exces-
sive RPM with frozen track, fast starts without
warm-up period, burred or rusty sheave, oil on
belt or distorted spare belt.
Check the drive belt width. Replace the drive belt
if width is less than the minimum width recom-
mended in DRIVE BELT 05-01.
NO. 6 RAGS IN AIR INTAKE AND
EXHAUST SYSTEM
At storage preparation, block air intake hole and
exhaust system hole using clean rags.
Remove those rags at pre-season preparation.
NO. 7 ENGINE COMPARTMENT
Keep clean of grass, twigs, cloth, etc. These are
combustible under certain conditions.
NO. 8 CLEANING
Remove any dirt or rust.
To clean the entire vehicle, use only flannel
clothes or Kimtowels
®
wipers no. 58-380 from
Kimberly-Clark.
CAUTION : It is necessary to use flannel
cloths or “Kimtowels” wipers on wind-
shield and hood to avoid damaging further
surfaces to clean.
To clean the entire vehicle, including metallic parts
with a thick coat of grease, use “Endust” import-
ed by Bristol Myers, available at hardware stores
or supermarkets.
To clean the entire vehicle, including metallic parts
with a thin coat of grease, use “Simple Green”
from Sunshine Makers Inc., available at hardware
stores or at automotive parts retailer.
Grease or oil at all recommended lubrication
points. Wipe off surplus.
To remove scratches on windshield or hood : Start
with “Slip Streamer Motorcycle Windshield
Heavy Duty Scratch, Remover”. Finish with “Slip
Streamer Motorcycle Cleaner and Polish”.
NOTE : The latest product may be use alone
if only light scratches are noticeable.
CAUTION : Never clean plastic parts or
hood with strong detergent, degreasing
agent, paint thinner, acetone, products con-
taining chlorine, etc.
Inspect the hood and repair any damage. Touch up
all metal spots where paint has been scratched
off. Spray all metal parts including shock chromed
rods with antirust product (P / N 293 6000 06).
Wax the hood and the painted portion of the
frame for better protection.
NOTE : Apply wax on glossy finish only. Pro-
tect the vehicle with a cover to prevent dust
accumulation during storage.
CAUTION : The snowmobile has to be
stored in a cool and dry place and covered
with an opaque tarpaulin. This will prevent sun
rays and grime from affecting plastic compo-
nents and vehicle finish.
