Section 04 ENGINE
Sub-Section 11 (CARBURETOR AND FUEL PUMP)
04-11-5

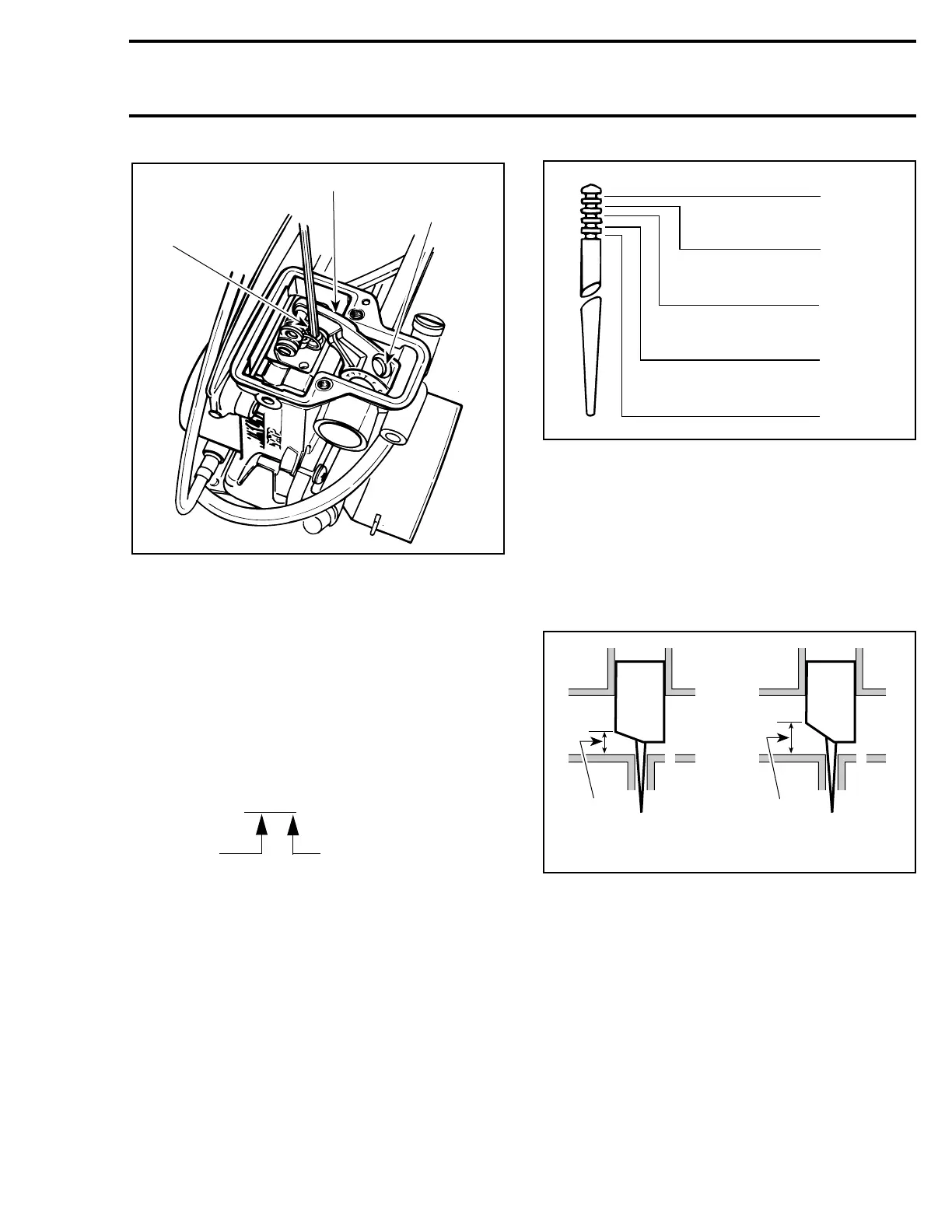

1. Allen screw
2. Arm moved aside
3. Locking screw and adjusting nut removed
All Models
The position of the needle in the throttle slide is
adjustable by means of an E-clip inserted into 1 of
5 grooves located on the upper part of the needle.
Position 1 (at top) is the leanest, 5 (at bottom) the
richest.
NOTE : The last digit of the needle identifi-
cation number gives the recommended posi-
tion of the E-clip from the top of the needle.
Example : 6DH4-3
Needle Recommended position
identification of the E-clip from top
1. Lean
2. Rich
5, Throttle Slide
The size of the throttle slide cut-away affects the
fuel mixture between 1/8 to 1/2 throttle opening.
A certain amount of richness is needed for that
particular range because this is where the transi-
tion from the low speed to the high speed circuit
takes place.
1. Low cut-away (high air speed)
2. Rich mixture
3. High cut-away (low air speed)
4. Lean mixture
8, Main Jet
The main jet installed in the carburetor has been
selected for a temperature of −20°C (0°F) at sea
level. Different jetting can be installed to suit tem-
perature and / or altitude changes. Always check
spark plug tip and / or piston dome color to find
out correct jetting.
A06C0KA
2
3
1
'
