Cam Type Preload A djust er
A03F2IA
1

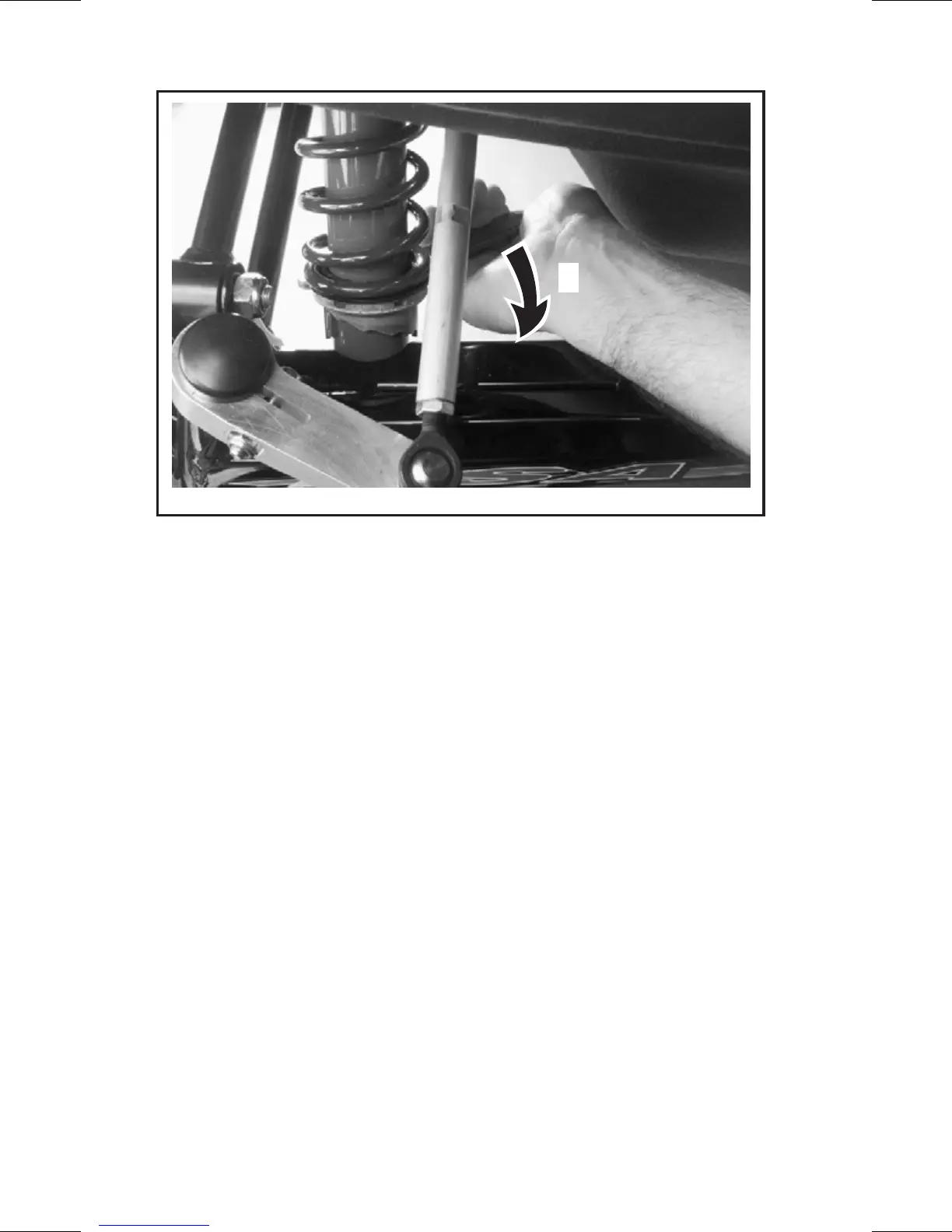

1. Increase or decrease spring preload
CAUTION: Make su re that both fro nt s prings are s ti ll pre l oaded
w hen front of ve hicle is of f the ground.
Fro nt Shoc k Mot ion Rat io — D ampin g Strength
XR-S Package O nly
Front shock on the above mentioned models feature 2 adjustment s.
Low Speed Com pression Adjuster
The low speed adjuster modifies the damping force for small suspen-
sion veloci ties. This adjuster has 5 turns of adjustment. Use a flat
screwdrive r to adju st it. Turn ing it cloc kwi se i nc reases shock d amp-
ing action (stiffer) for these low compression speeds.
High Speed Compression Adjuster
The high speed adjuster m odif ies the damping force for high suspen-
sion velocities . Use a 17 mm wren ch to adjust it. Turni ng it clock-
wise increases sh ock damp in g actio n (st iffer) for these high com-
pressi on speeds.
