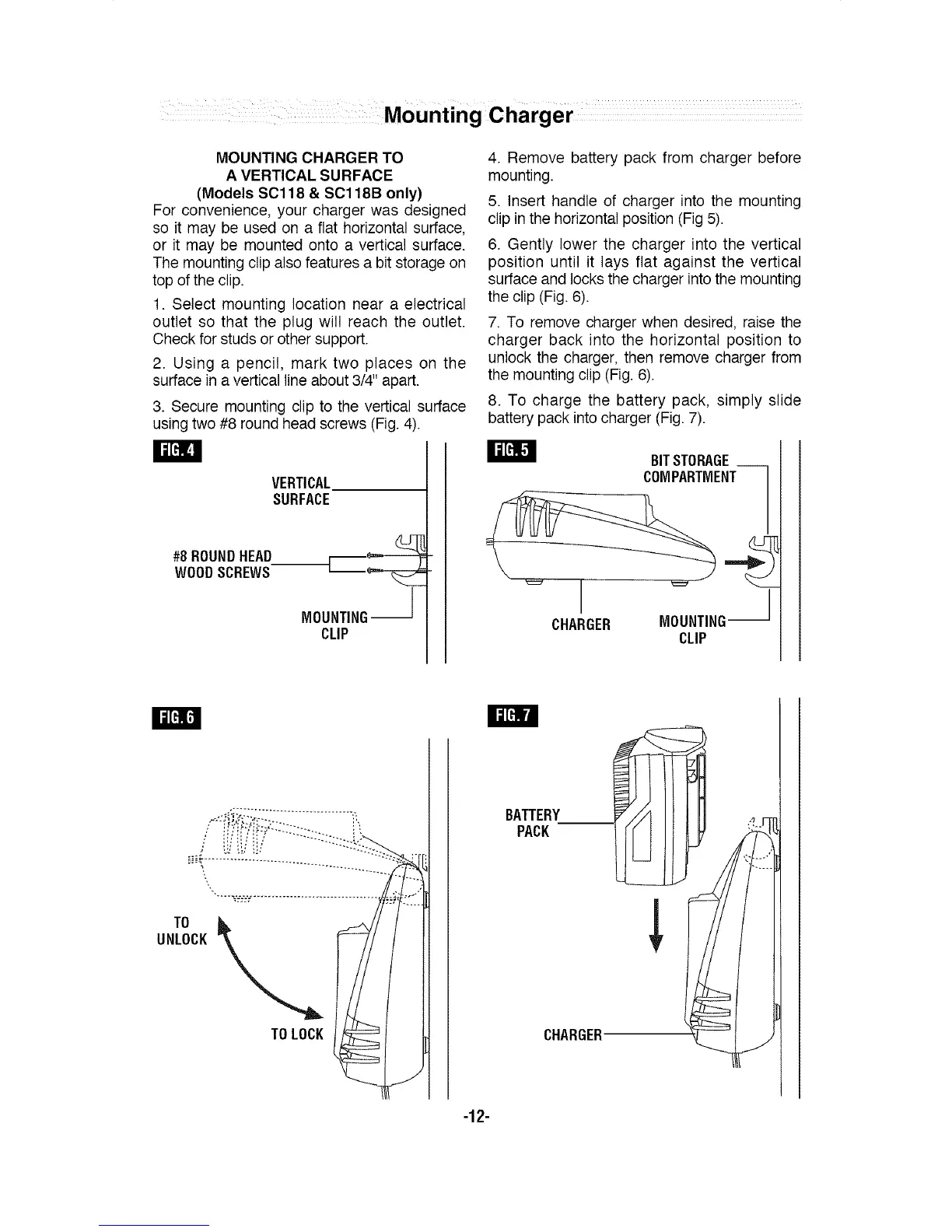

MOUNTING CHARGER TO
A VERTICAL SURFACE
(Models SC118 & SC118B only)
For convenience, your charger was designed
so it may be used on a fiat horizontal surface,
or it may be mounted onto a vertical surface.
The mounting clip also features a bit storage on
top ofthe clip.
1. Select mounting location near a electrical
outlet so that the plug will reach the outlet.
Check for studs or other support.
2. Using a pencil, mark two places on the
surface in a vertical line about 3/4" apart.
3. Secure mounting clip to the vertical surface
using two #8 round head screws (Fig. 4).
VERTICAL
SURFACE
#8ROUNDHEAD
WOODSCREWS
MOUNTING_
CLIP
4. Remove battery pack from charger before
mounting.
5. Insert handle of charger into the mounting
clip in the horizontal position (Fig 5).
6. Gently lower the charger into the vertical
position until it lays fiat against the vertical
surface and locks the charger intothe mounting
the clip (Fig. 6).
7. To remove charger when desired, raise the
charger back into the horizontal position to
unlock the charger, then remove charger from
the mounting clip (Fig. 6).
8. To charge the battery pack, simply slide
battery pack intocharger (Fig. 7).
BITSTORAGE__
COMPARTMENT
MOUNTING_
CHARGER
CLIP
II=l[_IrA
I =1[_!,1
UNLOCK
TOLOCK
BATTERY
PACK
CHARGER
