① ②
③ ④

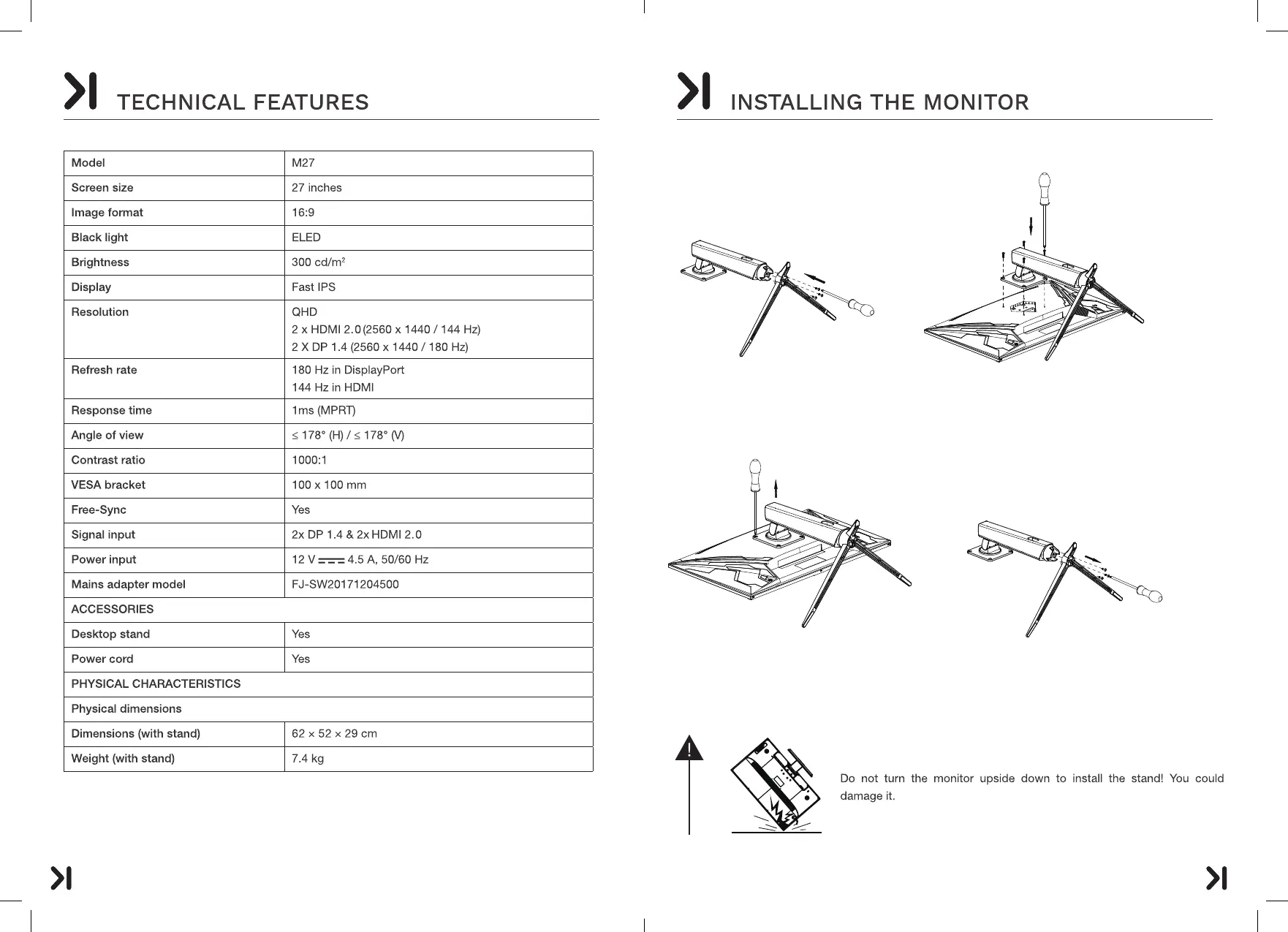

INSTALLATION OF THE STAND
Assemble the base of the stand using the 3 screws provided,As shown in figure 1.
Align the mounting holes of the base with the VESA holes of the machine and attach 4 M4*16 screws
(4 in a pack),as shown in figure 2.
1.
2.
After unscrewing the four M4*16 screws on the VESA cover of the base with a screwdriver, remove the
base in the direction of the arrow and separate it from the whole machine,as shown in figure 3;
Unscrew the three M4*16 screws on the base and pull out the base in the direction of the arrow,as shown
in figure 4.
3.
4.
