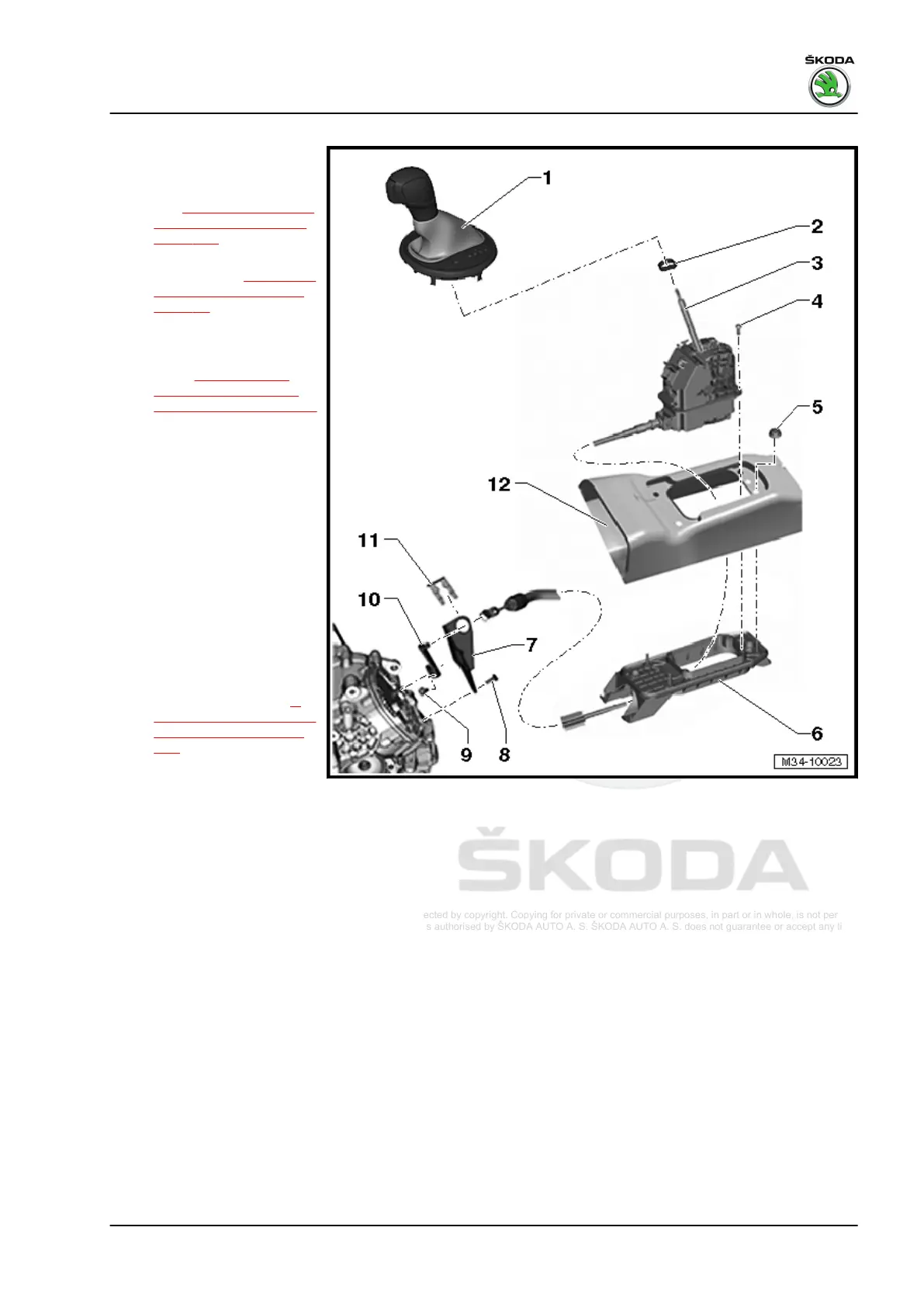

1 - Gearshift cover with selec‐
tor lever handle
❑ Removing and instal‐
ling ⇒ a2.8 nd installing
selector lever handle”,
page 144
❑ Emergency release out
of P position ⇒ r2.2 ele‐
ase out of P position”,
page 98
❑ Bring the lock button on
the selector lever han‐
dle into installation po‐
sition ⇒ t2.9 he lock
button at the selector
lever handle”, page 152
2 - Clamp
❑ Replace after removal
3 - Shift mechanism
❑ with integrated selec‐
tor lever sensor con‐
trol unit -J587- with
selector lever -E313-,
with Tiptronic switch
-F189-, with selector
lever switch locked in P
-F319- and selector lev‐
er lock solenoid -N110-
❑ Assignment ⇒ Electron‐
ic Catalogue of Original
Parts
❑ Remove and install ⇒
a2.3 nd installing selec‐
tor mechanism”, page
100
4 - Screw
❑ 8 Nm
5 - Flanged nut
❑ 4 pieces
❑ 8 Nm
6 - Bearing bracket for gearshift mechanism
❑ is supplied as a component with shift mechanism (item 3) with the selector lever cable
7 - Cable support
❑ for selector lever control cable
8 - Screw
❑ Cable support to gearbox
❑ 3 pieces
❑ 8 Nm
9 - Screw
❑ For shifter shaft lever
❑ 15 Nm
10 - Gearshift lever
11 - Locking clip
Octavia III 2013 ➤, Octavia III 2014 ➤, Rapid NH 2013 ➤, Rapid NH 2014 ➤
Gearbox 0CW-DSG - Edition 07.2022
2. Shift mechanism 95
