Note: The screw size used to x the shock absorber plate is M3 * 8, with a quanty of 4 pieces.
When the gimbal is not in use, do not hang it on the drone. Long me suspension will accelerate the
deformaon of the shock-absorbing ball, leading to a decrease in shock-absorbing eect and jelly
phenomenon.
When installing the gimbal, the shock absorpon plates shall be kept absolutely perpendicular and
parallel to each other. Incorrect installaon will cause deformaon of the shock absorpon ball,
resulng in a decrease in shock absorpon eect and inability to self check.
Gimbal working mode

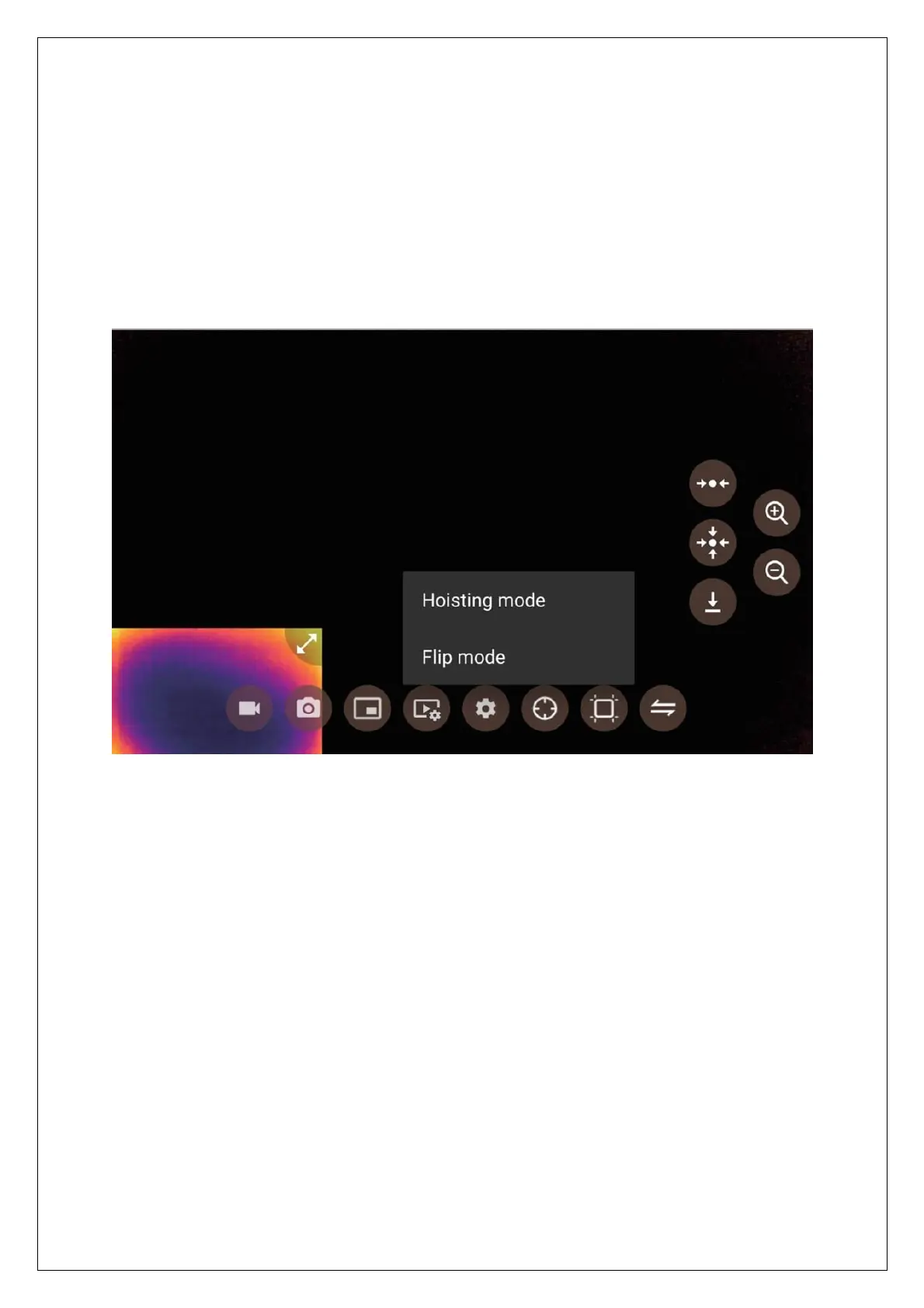

The hoist mode or upside down mode can be set on the FPV App
Note: The default hoist mode is set before shipping, please do not invert and power on; Please place
the gimbal correctly according to the working mode. Incorrect placement may cause damage to the
gimbal motor.
Gimbal cable connecon diagram and explanaon
