A B C D E F G H
V
Z
Y
X
W
60
SJ30AJE, SJ30ARJE196274AF
WIRE POSITIONS:
POSITION 1: PURPLE/BLACK
POSITION 2: RED
POSITION 3: RED
POSITION 4: BLUE/WHITE
POSITION 5: RED/YELLOW/BLACK
POSITION 6: ORANGE
POSITION 7: BLACK
POSITION 8: ORANGE/BLUE
POSITION 9: BLACK/WHITE
POSITION 10: BLUE/BLACK
POSITION 11: BLUE/YELLOW
POSITION 12: RED/GREEN
POSITION 13: RED/WHITE
POSITION 14: GREEN/BLACK
POSITION 15: GREEN/WHITE
POSITION 16: ORANGE/BLACK
POSITION 17: ORANGE/WHITE
POSITION 18: RED/PURPLE
POSITION 19: WHITE/RED/BLACK
POSITION 20: YELLOW/ORANGE
POSITION 21: YELLOW/PINK
POSITION 22: PINK/WHITE
POSITION 23: PINK/PURPLE
POSITION 24: PINK/BLACK
WIRE POSITIONS:
POSITION 1: BLACK
POSITION 2: WHITE
POSITION 3: RED
POSITION 4: GREEN
POSITION 5: ORANGE
POSITION 6: BLUE
POSITION 7: WHITE/BLACK
POSITION 8: RED/BLACK
POSITION 9: GREEN/BLACK
POSITION 10: ORANGE/BLACK
POSITION 11: BLUE/BLACK
POSITION 12: BLACK/WHITE
POSITION 13: RED/WHITE
POSITION 14: GREEN/WHITE
POSITION 15: BLUE/WHITE
POSITION 16: BLACK/RED
WIRE POSITIONS:
POSITION 1: BLACK
POSITION 2: WHITE
POSITION 3: RED
POSITION 4: GREEN
POSITION 5: ORANGE
POSITION 6: BLUE
POSITION 7: WHITE/BLACK
POSITION 8: RED/BLACK
POSITION 9: GREEN/BLACK
POSITION 10: ORANGE/BLACK
POSITION 11: BLUE/BLACK
POSITION 12: BLACK/WHITE
POSITION 13: RED/WHITE
POSITION 14: GREEN/WHITE
POSITION 15: BLUE/WHITE
POSITION 16: BLACK/RED
POSITION 17: WHITE/RED
POSITION 18: ORANGE/RED
POSITION 19: BLUE/RED
POSITION 20: RED/GREEN
POSITION 21: ORANGE/GREEN
POSITION 22: BLACK/WHITE/RED
POSITION 23: WHITE/BLACK/RED
POSITION 24: RED/BLACK/WHITE
POSITION 25(GROUND): GREEN/BLACK/WHITE
Motor Controller Harness “A”Control Cable “B”Control Cable “A”
WIRE POSITIONS:
PIN 1 - RED - 259
PIN 2 - ORANGE - 60
PIN 3 - BLUE - 04A
PIN 4 - WHITE - 01A
PIN 5 - BLACK - 30B
PIN 6 - RED/BLACK - 204
Motor Controller Harness “B”
PIN 1 - BLACK
PIN 2 - WHITE
PIN 3 - GREEN
PIN 1 - BLACK
PIN 2 - GREEN
PIN 3 - WHITE
Steering Sensor Harness
Riser Cylinder Harness Charger Harness
SOCKET 1 - BLACK
SOCKET 2 - WHITE
30
02
SOCKET 1 - BLACK
SOCKET 2 - WHITE
60
60A

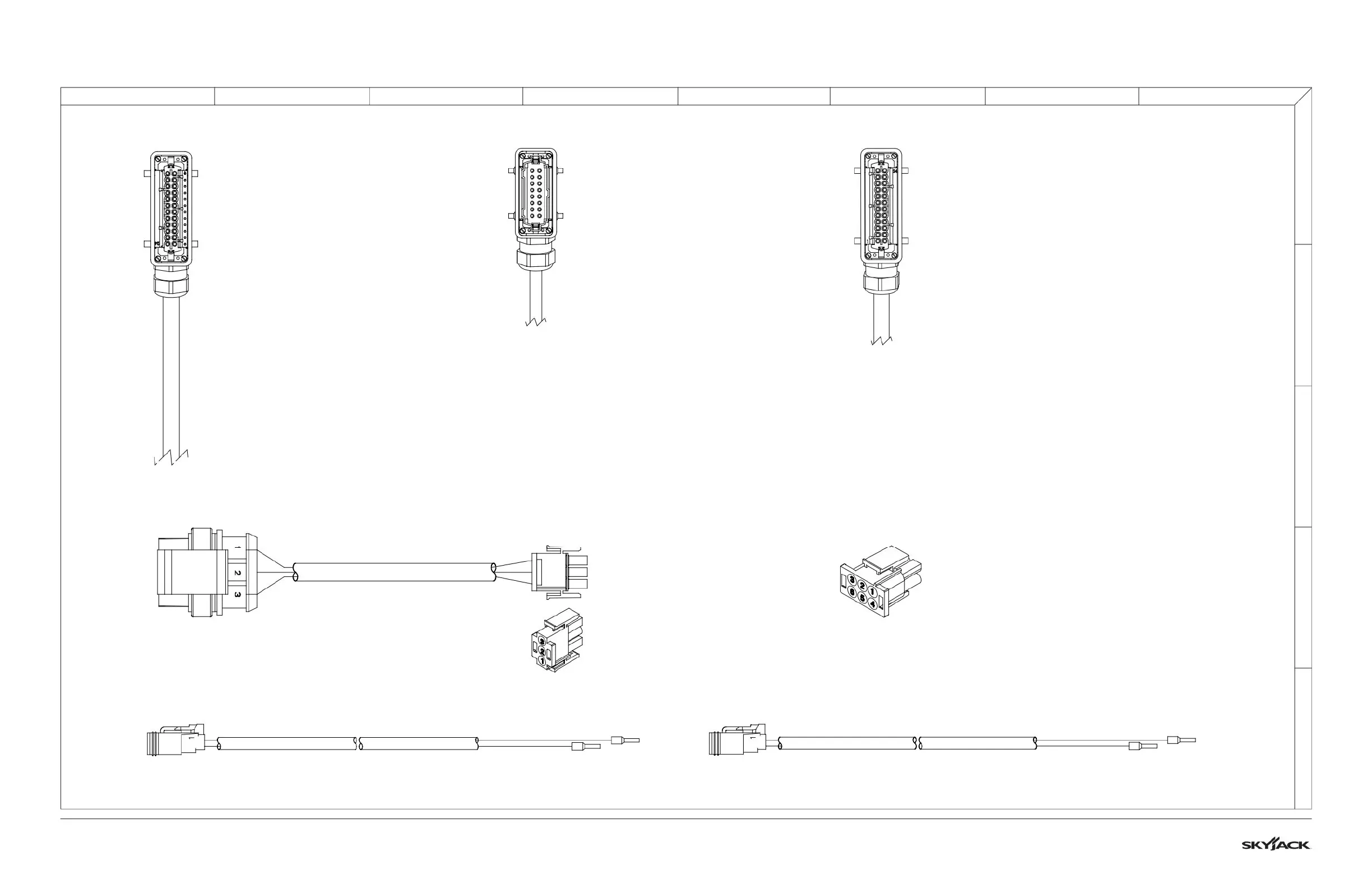

3.12 Control Cables & Harnesses
M192194AD_M192196AD
M192096AD, M207820AD
M192194AB, 192111AC, 192181AB
