61
SJ30AJE, SJ30ARJE
196274AF
A
A
B
B
C
C
SECTION
C-C
D
D
SECTION
D-D
3
4
2
1
ID #
COLOUR
LABEL
TERMINAL
1
RED
60
121050
2
NOT USED
3
WHITE
51A
105359
4
BLACK
51
105359
ID #
COLOUR
LABEL
1
BLACK
51
2
WHITE
51A
3
GREEN
51C
ID #
COLOUR
LABEL
1
GREEN
60
2
RED
52A
3
WHITE
51A
4
BLACK
51
ID #
COLOUR
LABEL
1
GREEN
60
2
NOT USED
3
WHITE
51A
4
BLACK
51
ID #
COLOUR
LABEL
1
GREEN
60
2
BLACK
52
3
WHITE
51A
4
RED
52A
SECTION
A-A
1
2
3
4
SECTION
B-B
1
2
3
4
3
4
2
1
3
4
2
1
3
4
2
1
51A - WHITE
51 - BLACK
52A - RED
51A - WHITE
51 - BLACK
60 - GREEN
60 - GREEN
52A - RED
51A - WHITE
52 - BLACK
60 - GREEN
S51A
S60

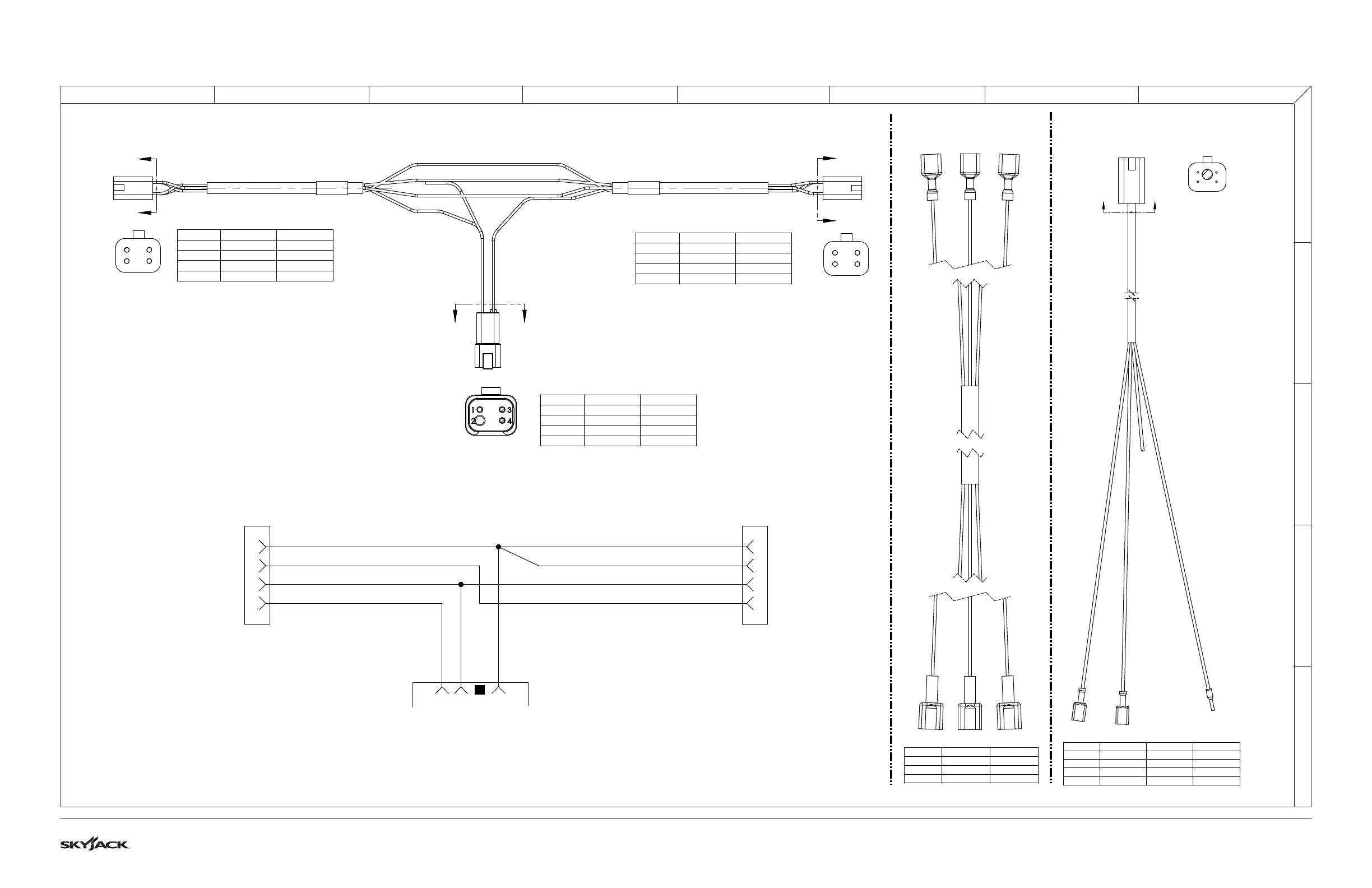

SCHEMATIC VIEW
Upper Con
trol
Harness
Platf
orm Limit Switch Harness
Lo
wer C
ontrol
Harness
3.13
Platf
orm L
imit
Swit
ch Ha
rnes
s - K
C
M207314AC_M209079AA_M209806AA
AB
60
62
