Rough Terrain Electric Scissors
Labels Section 5
1
2

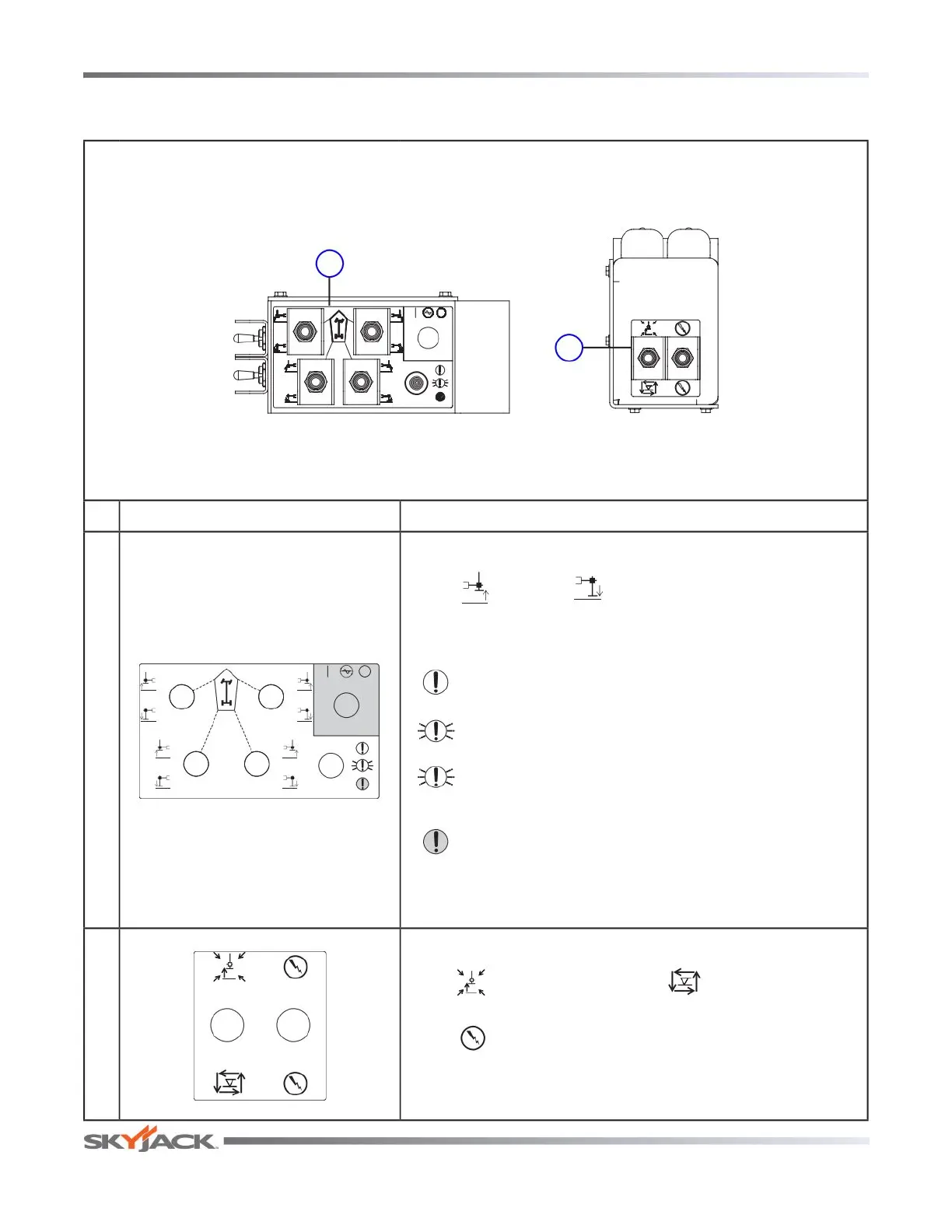

No. Label Pictorial Description
1
Manual Outrigger Control Console
Select “ ” retract or “ ” extend for each outrigger.
Indicates leveling system status:
Off: The outriggers are fully retracted.
Flashing Rapidly: The outriggers are extending but the
platform is not level.
Flashing: The outriggers are extended but the platform is
not yet level.
Solid: The outriggers are extended and the platform is level.
2
Automatic Outrigger Control Console
Select “ ” to retract all outriggers or “ ” to extend all outriggers
with automatic leveling.
Select “ ” to enable manual or automatic outrigger controls.
Outrigger Control Console
Labels - Model 6832RTE - Options and Attachments

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
