Rough Terrain Electric Scissors
Labels Section 5
1
2
3

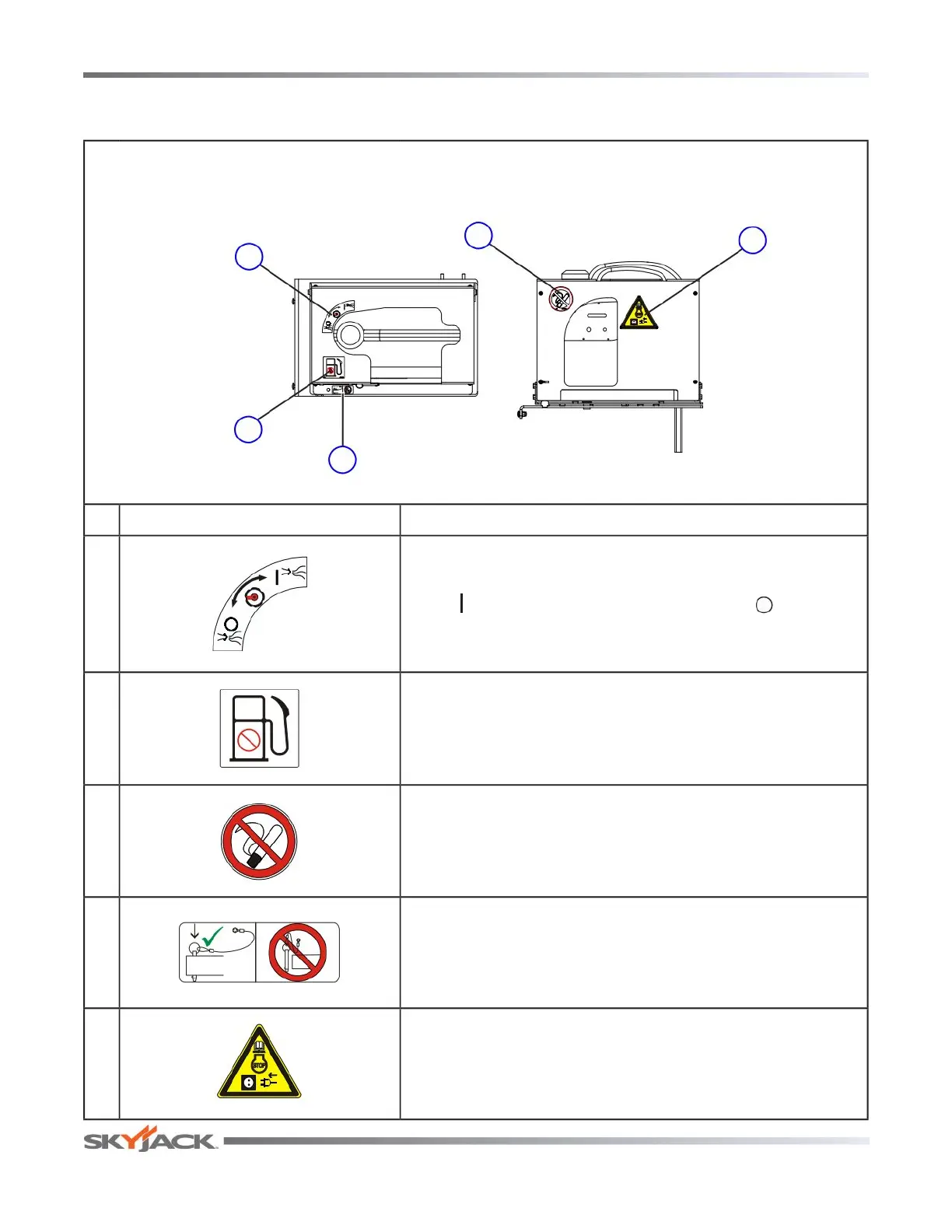

No. Label Pictorial Description
1
Air Inflow On/Off Switch
Refer to Hybrid Power Pack (HPP) manual.
Select “ ” on position to turn on air inflow. Select “ ” off position
to turn off air inflow.
2
b
P
Unleaded Gasoline
Use only unleaded gasoline with an octane rating of 87.
3
No Smoking
Do not smoke near this location.
4
Lock Pin In Place
Ensure HPP is locked in place by inserting the locking pin.
5
AC Battery Charging - HPP (If Equipped)
Refer to Operating manual.
Turn off HPP before connecting AC supply.
Hybrid Power Pack (HPP) - Gasoline
Labels - Model 6832RTE - Options and Attachments
Top View Front View
4
5

Skyjack SJ6832 RTE Series Specifications

General

Working Height	38 ft
Platform Height	32 ft
Lift Capacity	1, 000 lbs
Drive Speed	3.5 mph
Gradeability	30%
Drive Speed (Stowed)	3.5 mph
Maximum Working Height	38 ft
Capacity	1, 000 lbs
Overall Width	68 in
Weight	3, 629 kg
Drive Speed (Elevated)	0.8 km/h
Turning Radius (Outside)	4.27 m
Fuel Tank Capacity	45.4 L
Platform Length	2.44 m
Platform Width	0.76 m
Power Source	Diesel / Electric
Overall Length	130 in
Stowed Height (Rails Up)	2.08 m
Stowed Height (Rails Folded)	1.85 m
Turning Radius (Inside)	5 ft
