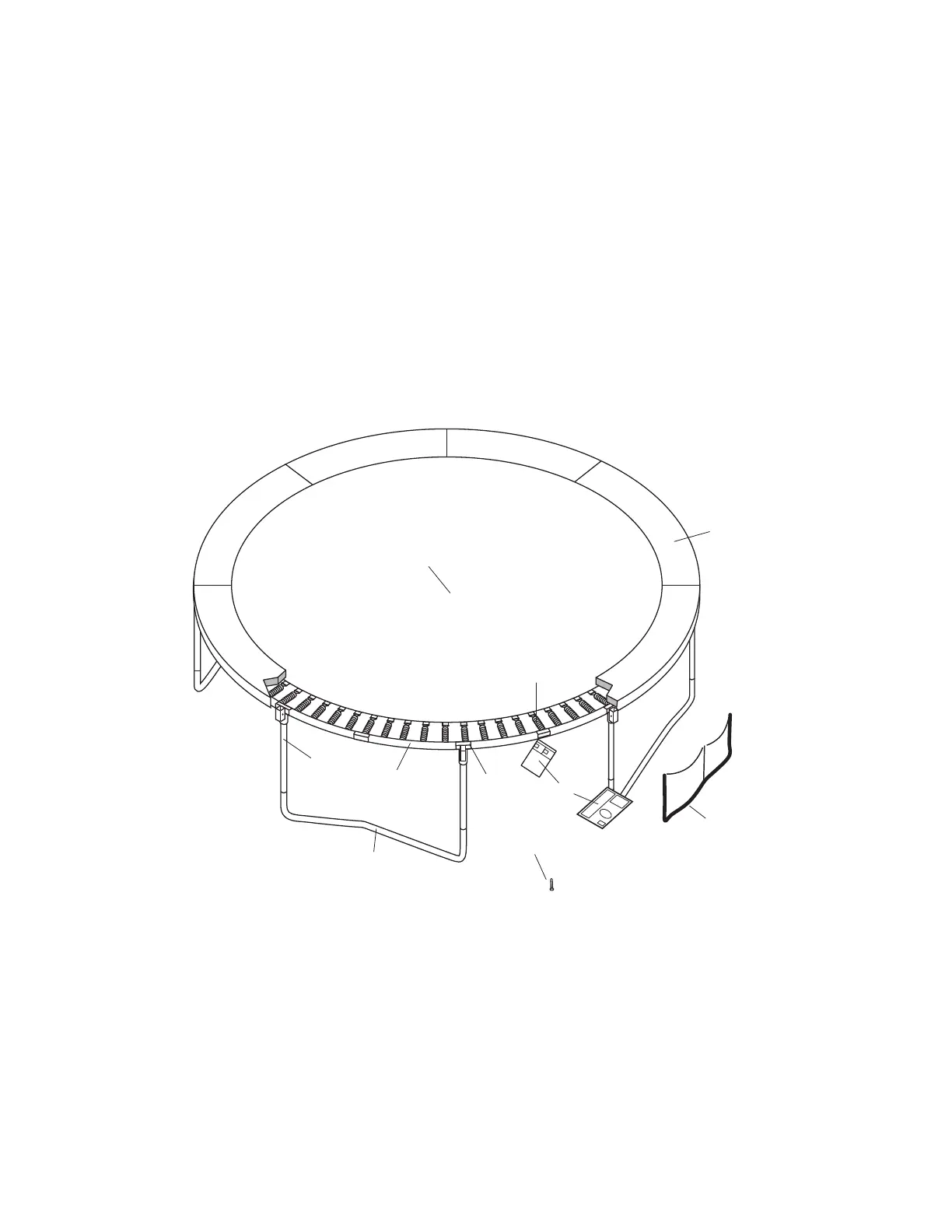

EXPLODED DRAWING AND PARTS LIST
Key Key
No. Qty. Description No. Qty. Description
1 8 Top Tube 7 80 Springs
2 8 Top Tube with Socket 8 8 #8 Sheet Metal Screw 3/4”
3 8 Leg Extension 9 1 User’s Manual and Safety Placard
4 4 Brace 10 1 Accessories Bag
5 1 Stitched Bed with 80 V-rings * 1 Set of ASTM Frame Labels
6 1 Frame Pad
* These parts are not illustrated.
Specifications are subject to change without notice.
ORDERING REPLACEMENT PARTS
To order replacement parts, visit our web site at www.skywalkertrampoline.com or call our toll-free Customer Care
Hot Line at 1-866-603-Jump (5867), Monday through Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holi-
days). To help us assist you, please provide the following information when calling:
• the MODEL of the trampoline (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part (see the PART LIST above)
• the quantity needed
• the desired method of shipping.
