SKY899
Installation Manual
009-11900-001 Installation Checkout - Page 3-3
Revision F July 18, 2013

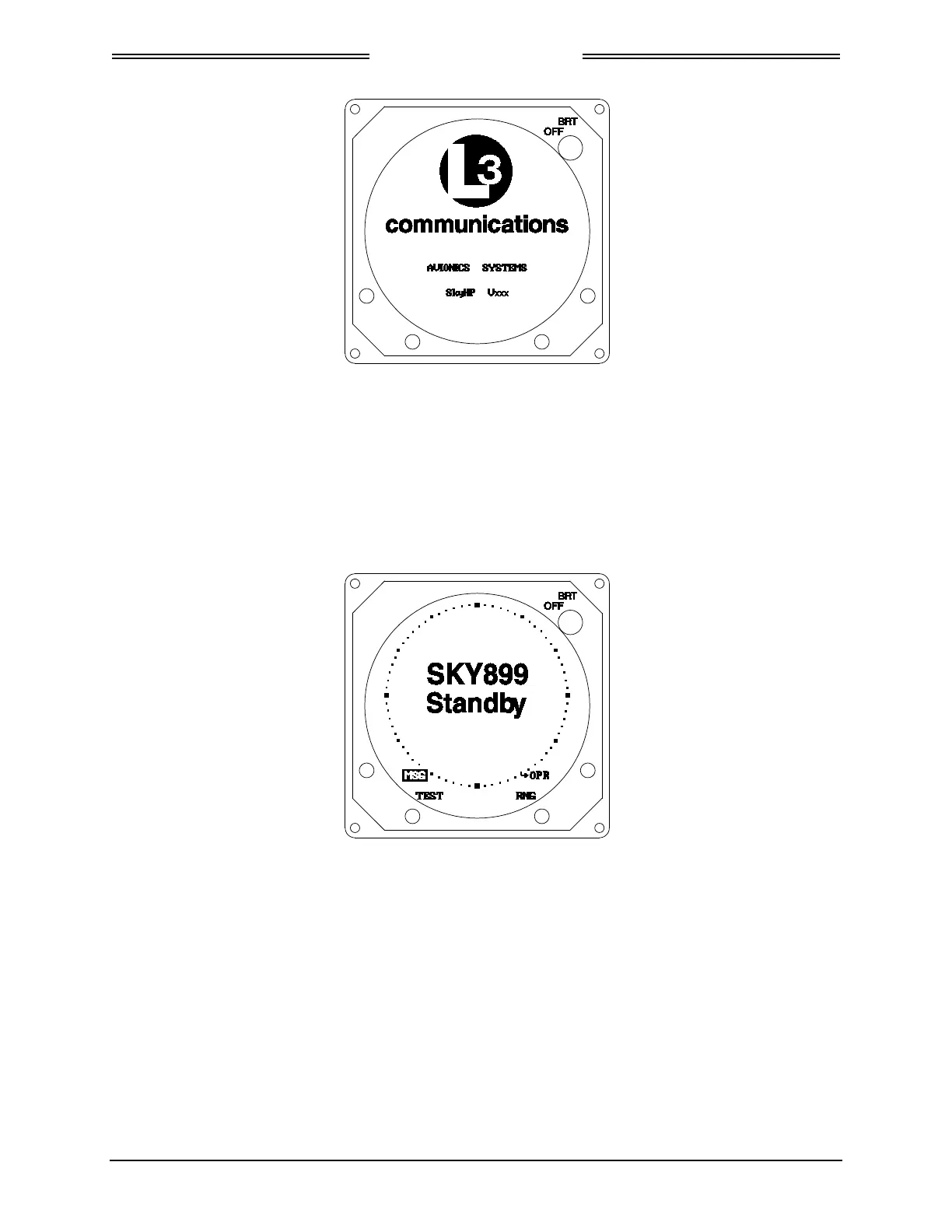

Figure 3-2: Start-up Screen
After approximately thirty seconds the display will show the STANDBY screen (see Figure 3-3).
NOTE
If the TRC has not been calibrated to the directional antenna the display
may show a “SKY899 FAILED” message. Calibration will be done during
system setup verification and operation.
Figure 3-3: Standby Screen
3.3.1 System Setup
The system configuration can be done using the service menu or it can be downloaded with a previously
saved configuration using the Compact Flash Card. Both setup procedures are described below and
assume familiarity with service menu operation, see chapter 4 for operation information.
