Slate raven - Slate Control Connections; DB9 Connections; DB25 Connections

DB9
TALKBACK AUX
XLR-F
EXTERNAL & REVERSE
TALKBACK INPUT
DB25
MAIN INPUTS
DB25
EXTERNAL INPUTS
XLR-M
LFE OUTPUT
Connects to
CONTROL HEAD
DB9
VU AUX
DB25
SPEAKER OUTPUTS
DB25
CUE OUTPUTS
These four stereo inputs come directly
from your DAW and are labeled
MIX 1, MIX 2, CUE A/B & CUE C/D.
Use this input if you wish to
use an external talkback mic
instead of the built-in mic on
the control head. Phantom
power is not provided.
This input
provides for
REVERSE
TALKBACK as
described in the
user manual.
Phantom power
is not provided.
Inputs for two external stereo sources, plus
inputs to the SOLO system & the AUTO
TALKBACK system.
LFE (subwoofer)
output, with LPF &
crossover point, phase
and level. Selectable
per speaker pair on the
CONTROL HEAD.
DB50 Cable connection to the CONTROL HEAD.
Bi-directional control voltage, ⅛” and local
headphone signals travel over this cable.
Ships with a 25’
cable, 50’ cable
is available.
This DB9 provides thorough access to the
Talkback system, for various
customizations to the user’s system. Use
this to create a remote producer talkback
station, for instance. Pinouts are described
in the user manual.
Pre-fader Control Room output for
connecting to external VU meters.
Voltage and Solo System Logic are
available here as well. Pinouts are
described in the user manual.
This DB25 connects the SLATE CONTROL to
your speakers. Carries the selected source to
speaker pairs A B & C, and the SLS source to
the SLS (Studio Loudspeaker) outputs.
Switched at the CONTROL HEAD.
Line level, TRS mirror of the local headphone feed to the
CONTROL HEAD. Same source and level control as the
CONTROL HEAD’s headphones. Connect to an external
headphone amp or other line-level input. Carries talkback
when TB to HP is selected.
This DB25 carries the MIX and CUE
outputs for connecting to an external
cue system, external headphone amps,
mixdown decks, or other line-level
inputs determined by the user.
MIX 1 output
always carries
the MIX 1 input
and carries
talkback when
TB TO SLATE is
selected. Line
Level.
MIX 2 output
always carries
the MIX 2 input
and carries
talkback when TB
TO SLATE is
selected. Line
Level.
CUE A/B output always
carries the CUE A/B input,
except when “CR to CUE
A/B” is selected. It then
carries the CR Source. CUE
A/B Carries talkback when
TB to CUE A/B is selected.
Line Level.
The CUE C/D output is selectable on the
CONTROL HEAD from the following
sources: Control Room (CR), Local
Headphones (HP), CUE C/D input, External
1, External 2, ⅛” input, Off. Level is also
controlled on the CONTROL HEAD. Carries
talkback when TB to CUE C/D is selected.
Line Level.
MIX 1 MIX 2 CUE A/B CUE C/D
¼” TRS
LOCAL HEADPHONE
LINE OUT
EXTERNAL HEADPHONE AMP
EXTERNAL HEADPHONE AMP
EXTERNAL HEADPHONE AMP
DAW RETURN, MIX DECK,
HEADPHONE AMP, ETC.
DAW RETURN, MIX DECK,
HEADPHONE AMP, ETC.

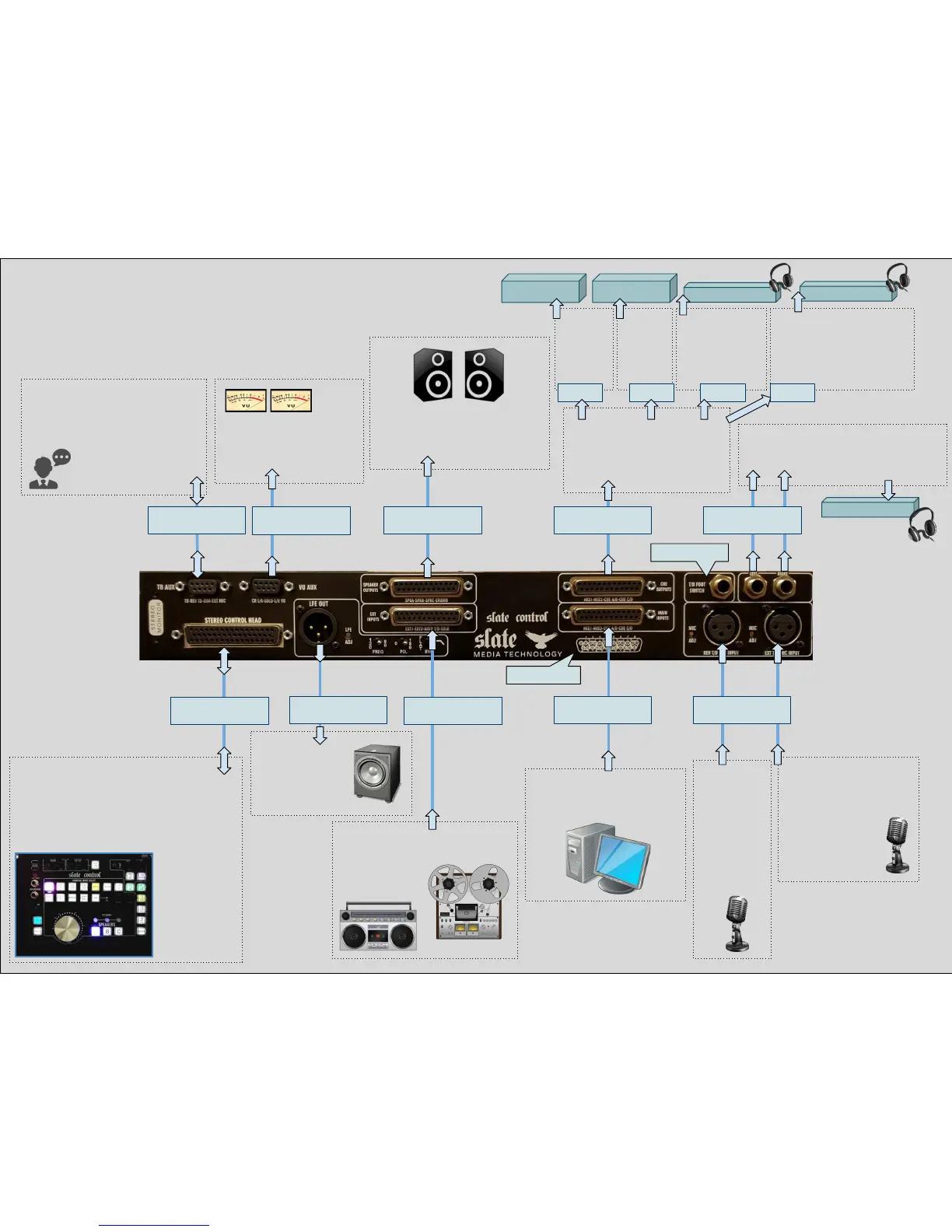

SLATE CONTROL CONNECTIONS
STEREO MONITOR CARD WITH EXAMPLE SETUP
TALKBACK FOOTSWITCH
DB25 PINOUT printed
