SMAR CD600 Plus - Page 3

NOTE
To guarantee the electrical contact insert only the uncovered wire in the cavity.
ATTENTION
Connect the housing ground before supplying the equipment.
NOTE
CD600 Plus is factory-configured to work with 4 loops. See in the CD600 Plus
manual for more information about this subject.
Electrical Installation of the controller

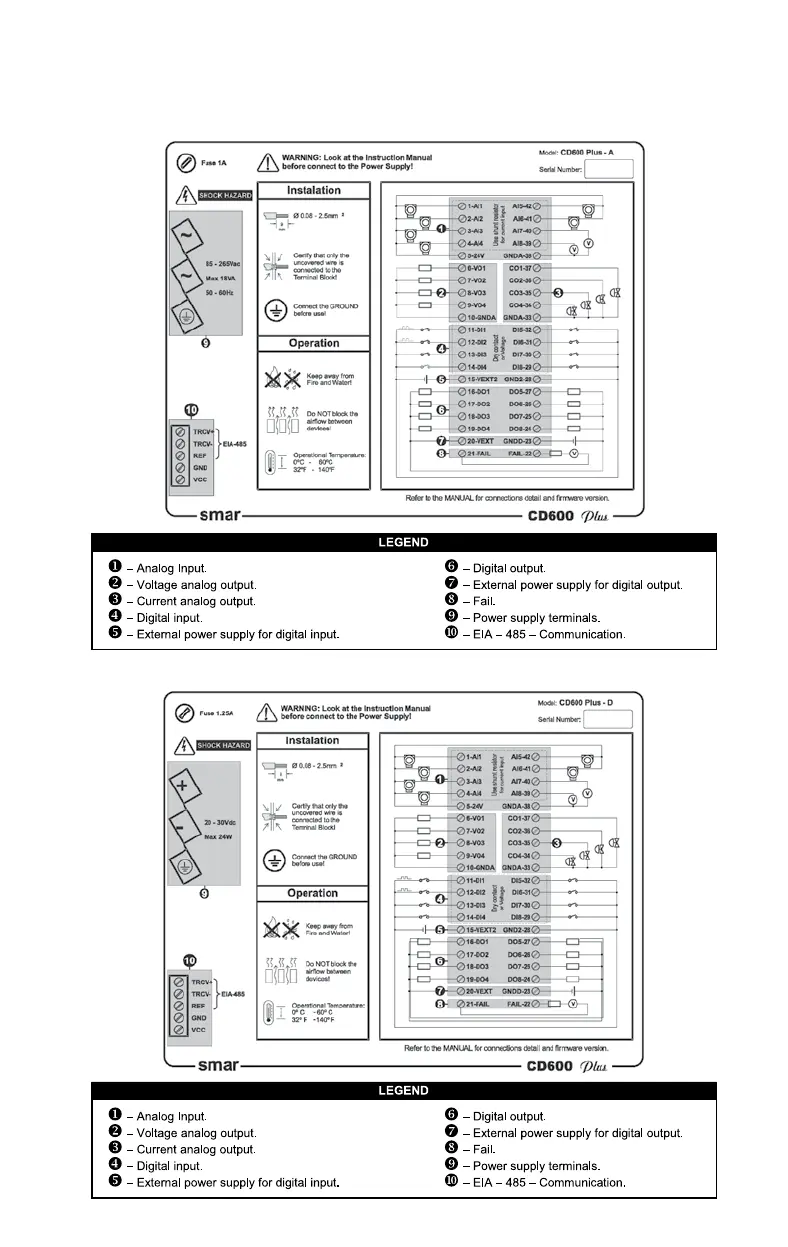

Figure 5 and 6 show the labels attached to the CD600 Plus side, AC and DC model, respectively.
See through theirs legend the terminals meanings.
Figure 5 – Side label with the terminal block diagram for the CD600 Plus AC model.
Figure 6 – Side label with the terminal block diagram for the CD600 Plus DC model.
To insert the connection wire for Input/Output and terminal block communication, follow the
steps below:
1. Insert the screwdriver in the rectangular cavity of the terminal blocks. (Do not force the
screwdriver in the block side, because it can damage it).
2. Rotate the screwdriver at a 90º angle. The cavity for the wire insertion will open.
3. Insert the uncovered part of the wire in the cavity and rotate the screwdriver again in the
opposite direction to press the wire in the cavity.
Figure 7 – CD600 Plus terminal block with its closed and open terminals.
Control strategy configuration
Consult the CONF600 in the users manual for installing the conguration software.
Establishing the communication between the controller and the computer
1. Using the computer serial gate
Connect the ICS 2.0P interface in the identied terminal in the label of the CD600 Plus
with the specic cable. (See the ICS 2.0P manual for more details).
Figure 8 – CD600 PLUS Wiring diagram with ICS2.0 interface.
2. Using Ethernet connection
To establish an Ethernet connection, connect the ENET-710 interface in the RS485 terminal
of the CD600 Plus. See gure 9. Refers to the ENET-710 manual for more details.
Refers to the communication section of the CD600 Plus user manual for more details about the
communication blocks conguration.
smar
ww w. sm ar .com
C D 6 0 0 P L U G E
Figure 9 - CD600 PLUS wiring diagram with an ENET-710 interface
CLOSED CONNECTOR
INSERT THE
SCREWDRIVER
IN THIS EMPTY
SPACE
OPENED CONNECTOR
INSETED WIRE
ROTATE THE SCREWDRIVER
TO PRESS THE LEVER
AND OPEN THE
CONNECTOR BESIDE
Figure 8 shows the connections of the cable with the equipments:
The gure 1 shows the CD600 Plus
inserted in the panel cut-out (front
view of the panel).
Figure 2 shows the screwdriver and the
xing clip bolt of the CD600 Plus (back
view of the panel)
The gure 3 shows the lower and upper
xing clip inserted in the opening of the
CD600 housing to attach it to the panel.
Figure 4 shows the correct way to tie
the cables on the CD600 Plus back
part, so that access to the shunt
resistors is not obstructed.
Free access to
shunt resistors
conguration.
Presilha Superior
Upper xing clip
Presilha Superior
Lower
xing
clip
Mechanical Installation of the Controller
CD600 PLUS
Guia de Instalação Rápida
Esse apêndice fornece um resumo para o usuário instalar o CD600 Plus. Supõe-se que o usuário
possui conhecimento sobre ele. Para informações detalhadas consulte os capítulos pertinentes
à instalação no manual do CD600 PLUS.
Este apêndice Informa:
• Quais são as ferramentas e equipamentos necessários para instalá-lo;
• Como instalá-lo (eletricamente e mecanicamente);
Ferramentas e Equipamentos utilizados na Instalação
Os itens necessários para a instalação são:
• Chave de fenda;
• Cabos para alimentação;
• Cabos para E/S de sinais;
• Cabos para comunicação;
• Interface ICS 2.0P para comunicação serial ou ENET-710 para Ethernet.
Procedimentos
Verifique o conteúdo da embalagem do CD600 PLUS (Consulte a seção 9 – Instalação,
no manual do CD600 Plus).
Verique:
• O modelo correspondente à sua ordem de pedido;
• O equipamento não sofreu nenhum dano durante o transporte;
• O manual do CD600 Plus, o CD com software de configuração e as presilhas para fixaro
controlador no painel estão na caixa de embalagem conforme o código de pedido.
Se algum(s) item(ns) do pedido acima não estiver na caixa de embalagem, comunique a Smar
Equipamentos Industriais Ltda.
