General
Guidelines for Rescue Services, smart, 2006 Page 37
Model classes
Location of structural reinforcements
The structural reinforcements of relevance to
rescue operations are all located in the region of
the passenger cell.

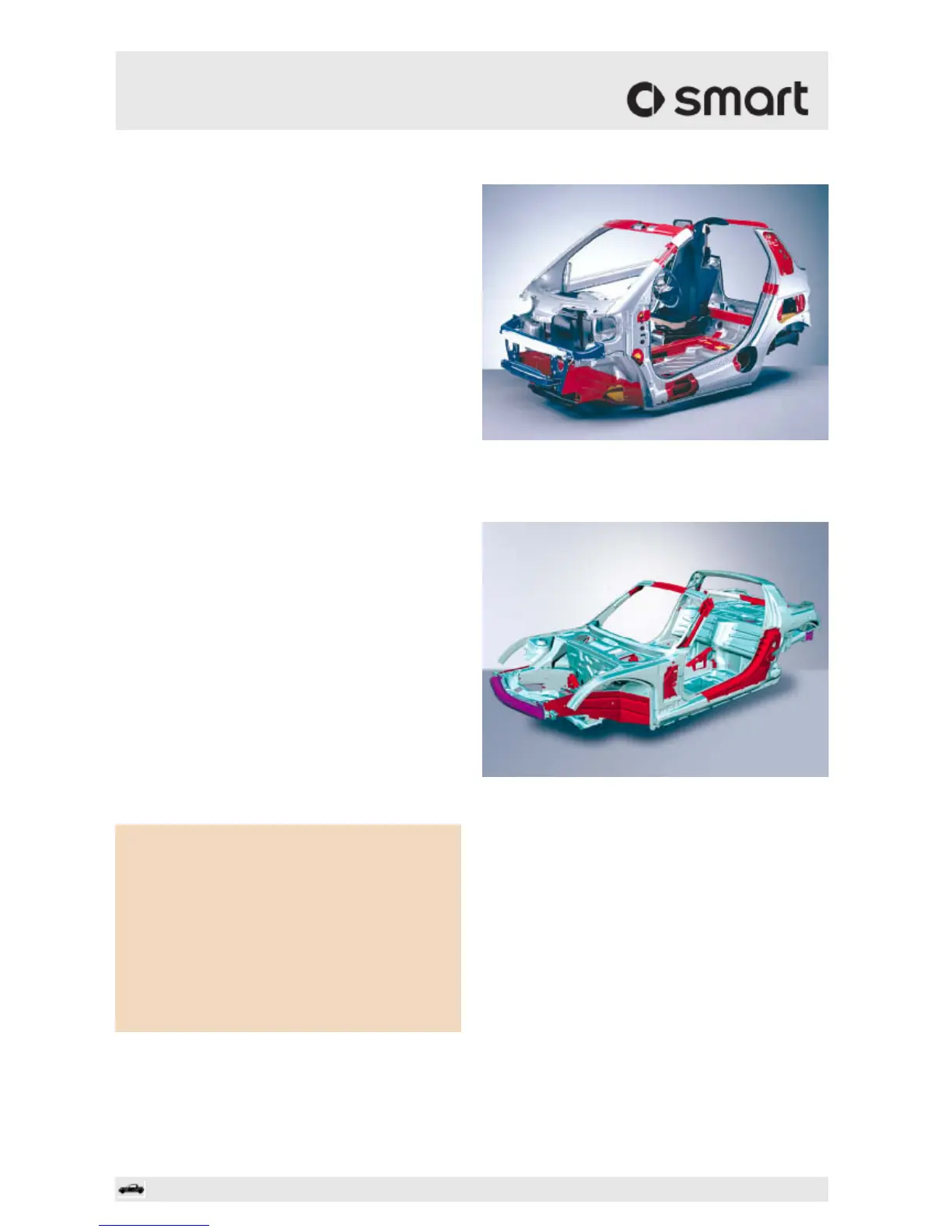

The illustration shows the design of the TRIDION
cells with structural reinforcements (red) as
found on the smart cabrio (upper illustration) and
smart roadster (lower illustration).
P00.00352500
The actual layout of the structural reinforcement
elements varies according to the individual model
series.
P00.00354200
The illustrations on the following pages show the
possible locations of airbags, batteries, struc
tural reinforcements and fuel tanks.
Some of the airbags are only available as special
equipment. In other words, not all the airbags
listed are necessarily present in each vehicle
model.
i The doors on smart vehicles consist of
aluminum structures with plastic paneling on
the outside and conventional trim panels on the
inside.
