Example: 12 V 46 Ah 420 A --> Select EN.
Confirm selection with "Enter".

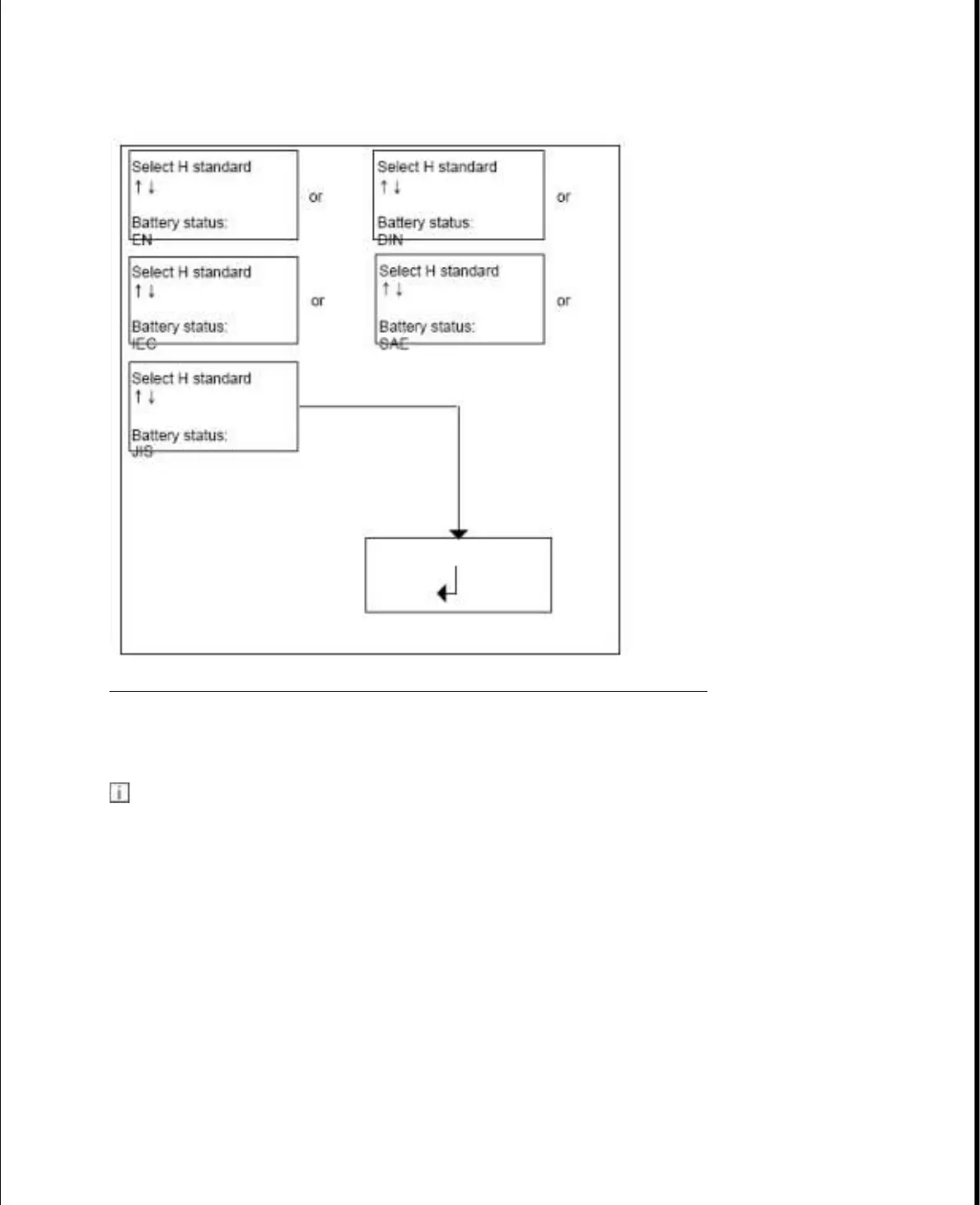

Fig. 11: Display Selection Of Battery Testing For Cold Cranking Amps
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Read off cold cranking amps and enter in tester.
Example: 12 V 46 Ah 420 cold cranking amps --> 420 A.
Confirm input with "Enter".
The battery test starts after confirmation of the cold cranking amps entry.
The test result or one of the following messages appears after approx. 15 s:
l Test code --> Step 7
l Vehicle model --> Step 9
l Temperature > 0°C/< 0°C --> Step 10
l Before charging/After charging --> Step 11
l Surface voltage DETECTED (see above)
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 18 © 2011 Mitchell Repair Information Company, LLC.
