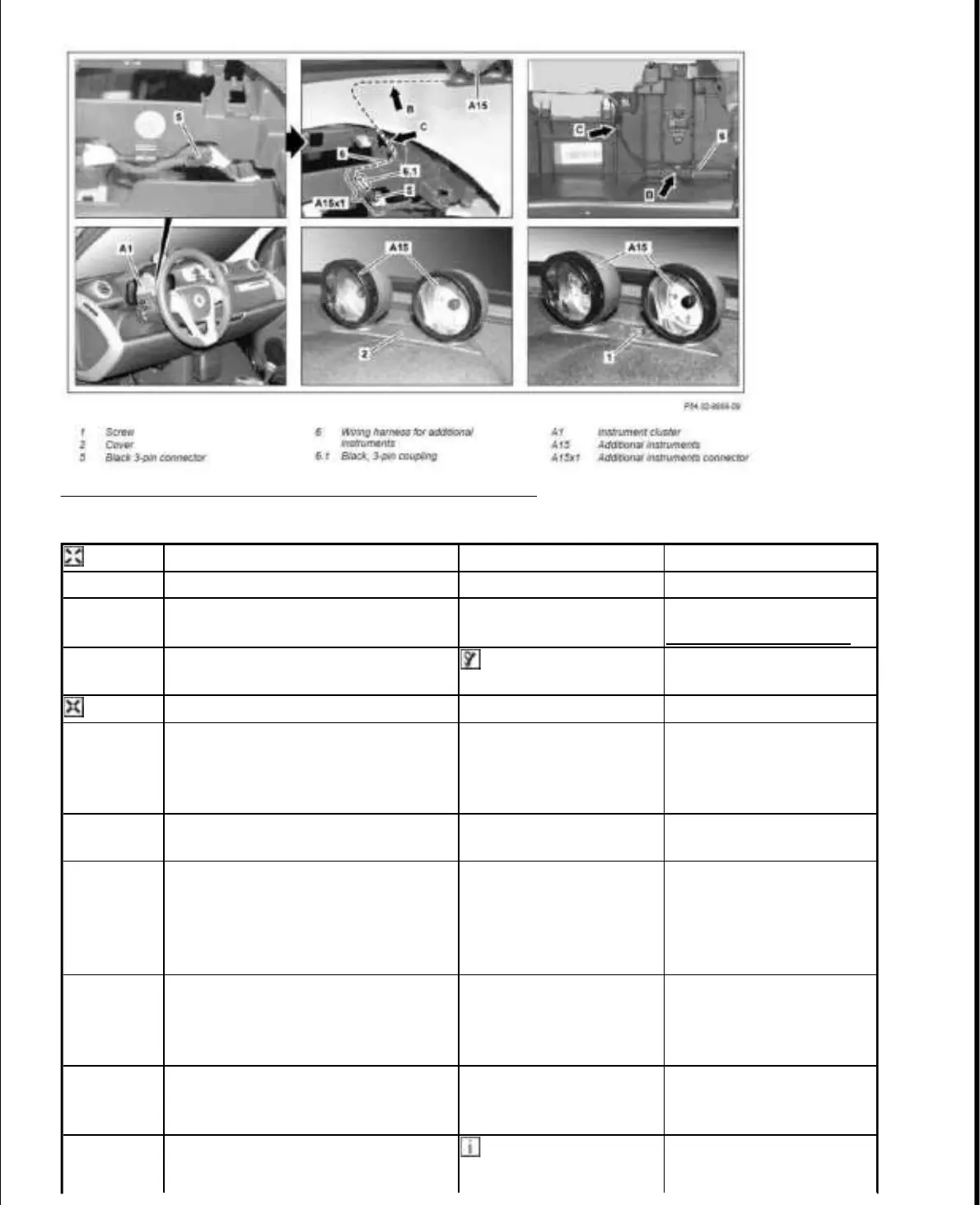

Fig. 49: Identifying Additional Instruments Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove
1 Adjust driver seat to the rear
2 Remove instrument cluster (A1) * not for USA AR54.30-P-6015MCC
* for USA only AR54.30-P-6015MCU
3 Detach covering (3) with clip
remover, as shown, and remove
Clip remover
*452589016300
Install
4 Slide wiring harness for additional
instruments (6) through the left
opening and under the covering (3)
towards the instrument cluster
5 Clip additional instruments (A15)
into instrument panel
6 Bend into the footwell and route
wiring harness for additional
instrument (6) at the bottom of the
instrument panel upper section
towards the instrument cluster
7 Hook wiring harness for additional
instruments (6) into holders (arrow
C and B) at bottom on instrument
panel upper section
8 Detach black, 3-pin connector (5)
from vehicle wiring harness in area
of instrument cluster (A1)
9 Connect black, 3-pin connector (5)
and black, 3-pin coupling (6.1) of
The additional
instruments connector
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:11 Page 53 © 2011 Mitchell Repair Information Company, LLC.
