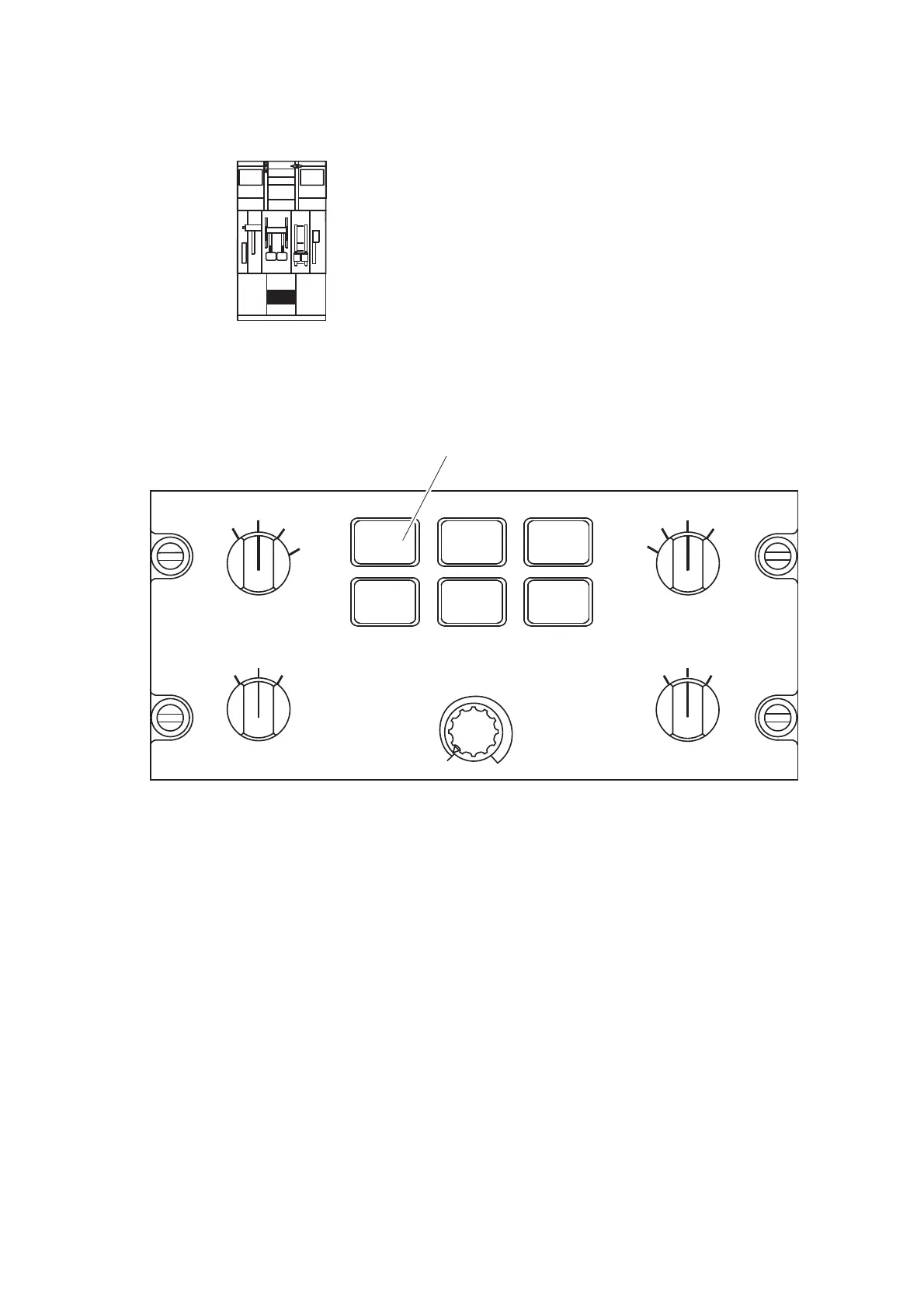

Figure 12.5-1 Engine and System Integrated Displays Control Panel (ESCP)
ESCP CALLOUTS PERTAINING TO ELECTRICAL ITEMS
1. ELEC SYS PUSHBUTTON (momentary action)
PUSH
- provides a display of the electrical system page on the MFD (upper area) with MFD 1
or MFD 2 set at SYS
- there is no action with another push
ENG
SYS
NAV
PFD
MFD1
ENG
NAV
SYS
PFD
MFD2
ELEC
SYS
ENG
SYS
FUEL
SYS
DOORS
SYS
ALL TEST
NORM
12
EFIS
ATT/HDG
SOURCE
ADC
OFF
ED BRT
NORM
12
SOURCE
EFIS
1
Dash8 - Q400 - Electrical
