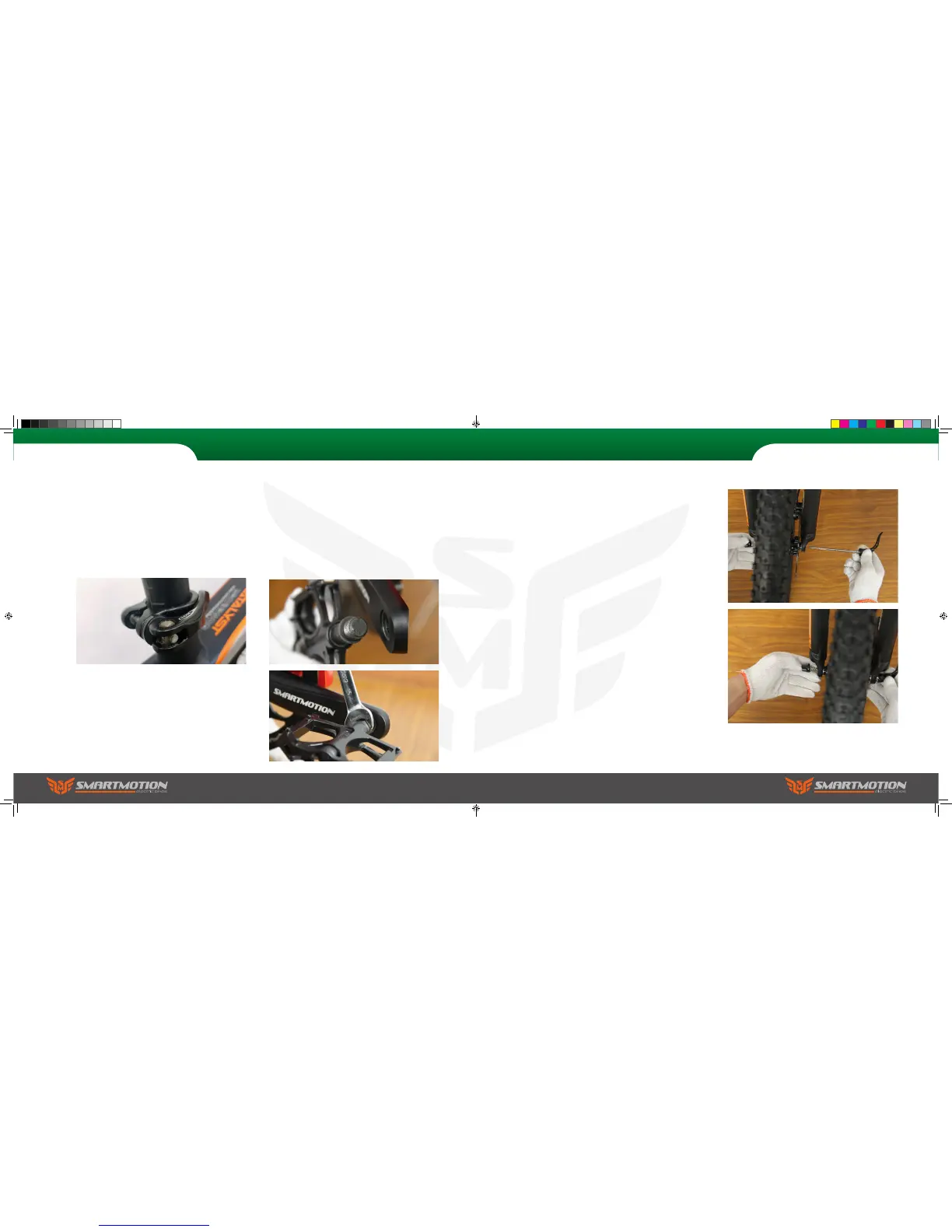

5. Front wheel
Assemble the front wheel quick release axle by
pushing it through the hollow hub, making sure
that one spring is on each side of the hub. Then
screw on the end nut several turns. Next, carefully
lift the bike front forks off the ground and lower the
forks onto the wheel axle, being careful the disc
rotor ts correctly into the disc calipers (this job is
best with 2 people). Tighten the non-rotor side nut
nger tight and try to close the quick release lever.
Loosen or tighten the nut until it takes the correct
amount of force to close the lever. It should be hard
to close, but not so hard you cannot fully close it. It
must fully close (as in picture) otherwise the wheel
may come loose, causing serious injury. Note: if
you are not well trained in cycle assembly, this
procedure must be checked by a cycle technician.
3. Seat
Release the seat post clamp lever and set the
seat post height to the position which is suitable
for you to comfortably reach the ground when
you are sitting on the bike, then refasten the
seat post clamp. The maximum height should be
within the max height markings on the seatpost.
4. Pedals
Attach the pedals to the cranks, paying attention
to the “L” or “R” marked on the pedal axles. Note:
the pedals have opposing threads – screw in the left
pedal counterclockwise and screw in the right pedal
clockwise. Install L pedal counterclockwise and the
right pedal clockwise.
