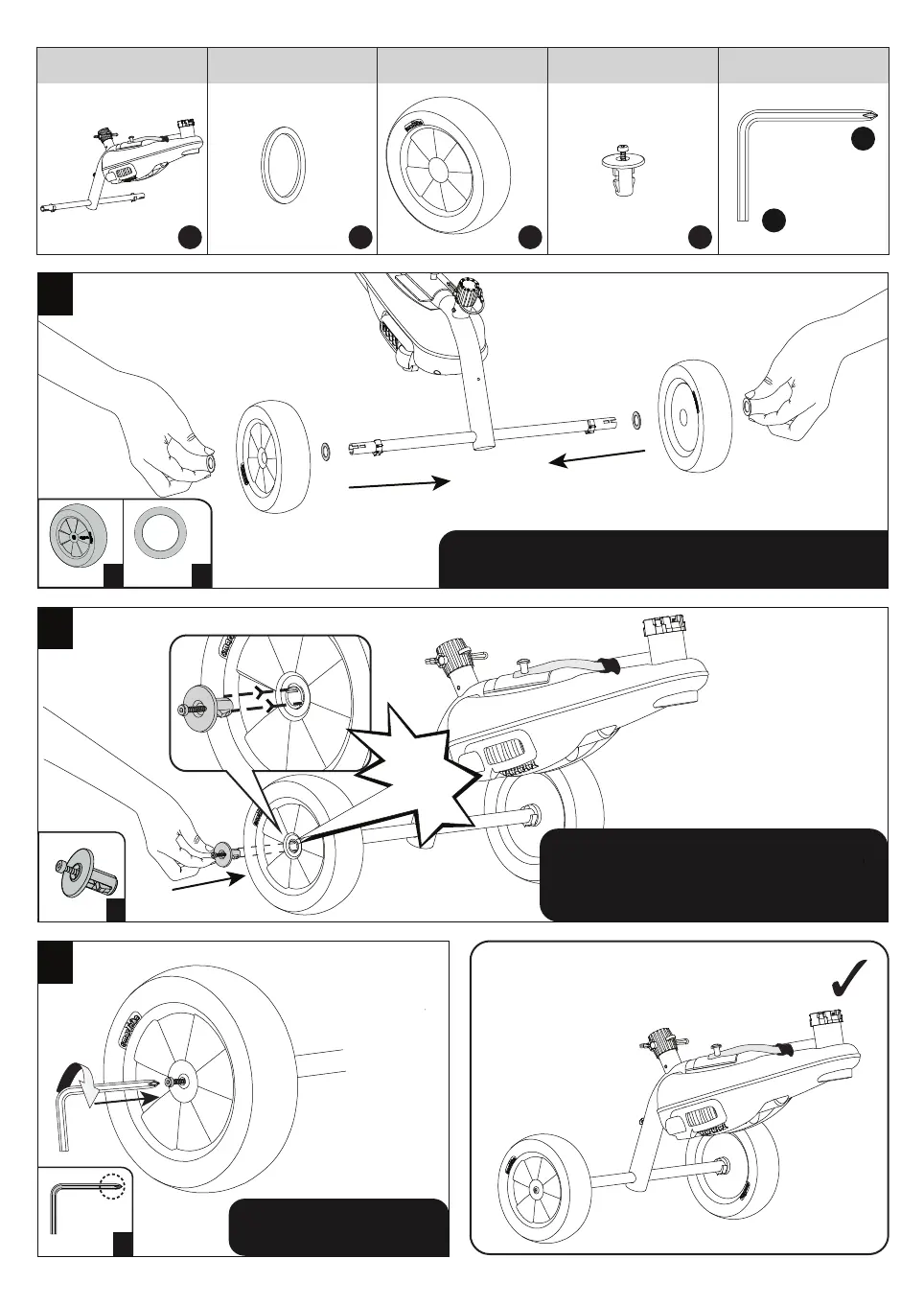

SmartTrike 650 - Assembly Instructions; Step 1: Rear Wheel Installation

-3-
- a 1a
-
a 1b
-
a 1c
MBN
x4 x2x2
A
CLICK!
L1
L2
On one side of the rear tube, insert “N” with a “B”.
Repeat for the other side of the rear tube.
Firmly insert black plug “M” into axle
opening, as shown. Align spring lock with
dropout hole in axle and push firmly into
position, until piece "clicks" into place.
N B
Firmly screw in “B” with
“L1” clockwise.
M
M
L1
