SMC Networks PTE-300-V User Manual

PTE-300-V
Sheet 35
a) EUROPEAN SENSE:
The display shows, in sexagesimal degrees (0-359.9), the phase angle between the
OUTPUT and the selected reference source (Freq., EXT, LINE and BUS), considered
positive when this is ANTI-CLOCWISE, that is:

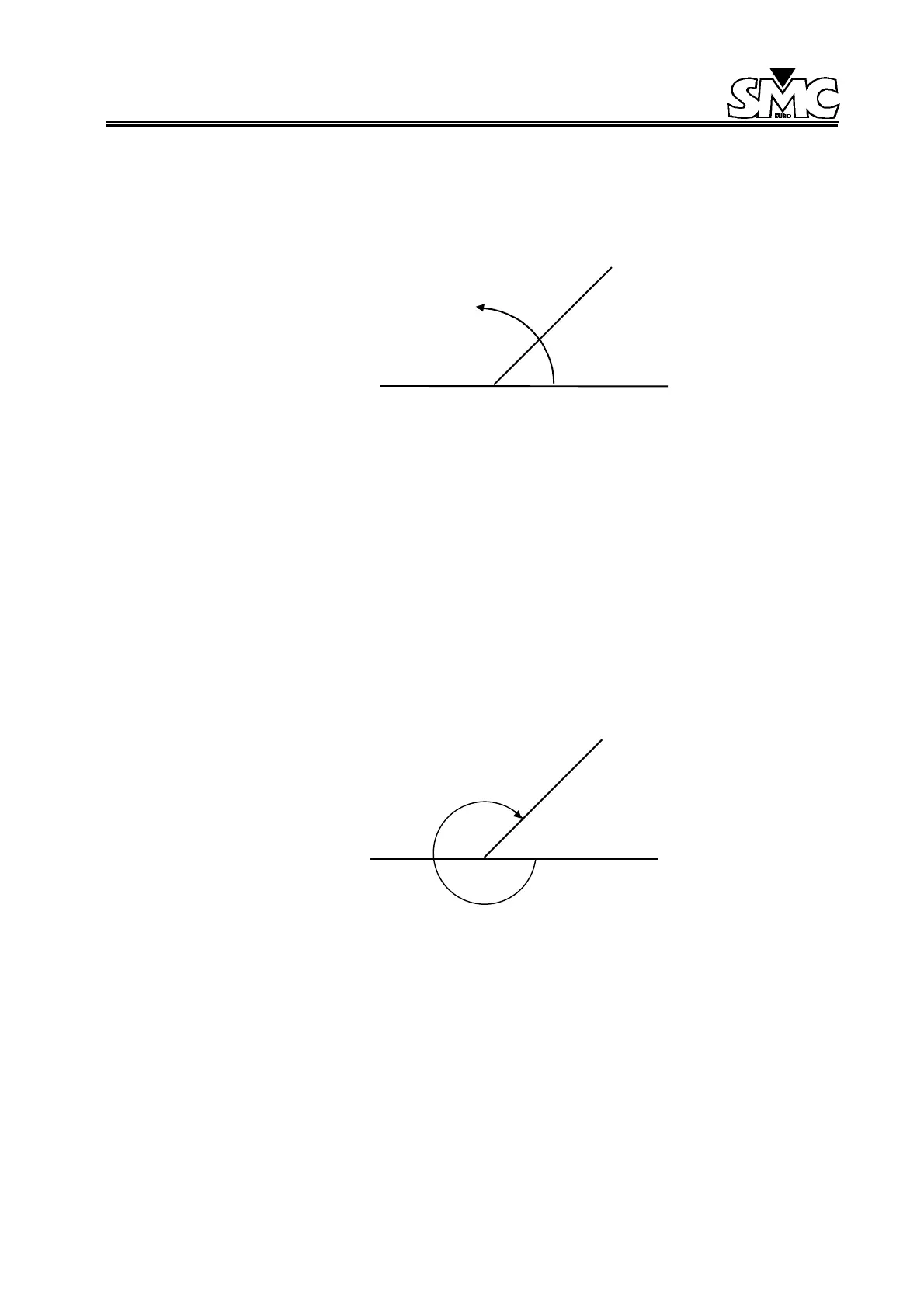

Figure 13: Phase Angle Selection (European)
When the unit is turned on, the phase angle selection sets the following default states and
values:
1. Selected value in channel 1 (CH1): 000.0º
2. Selected value in channel 2 (CH2): 240.0º
3. Selected value in channel 3 (CH3): 120.0º
b) AMERICAN SENSE:
The display shows, in sexagesimal degrees (0-359.9), the phase angle between the
OUTPUT and the selected reference source (Freq., EXT, LINE and BUS), considered
positive when this is CLOCWISE, that is:
Figure 14: Phase Angle Selection (American)
When the unit is turned on, the phase angle selection sets the following default states and
values:
1. Selected value in channel 1 (CH1): 000.0º
2. Selected value in channel 2 (CH2): 120.0º
3. Selected value in channel 3 (CH3): 240.0º
PTE-300-V output
Displayed angle
Source reference
(0º)
Positive degrees
PTE-300-V output
Displayed angle
Reference source
(0º)
Positive degrees
