SMC Networks ZFC Series User Manual

- 8 -

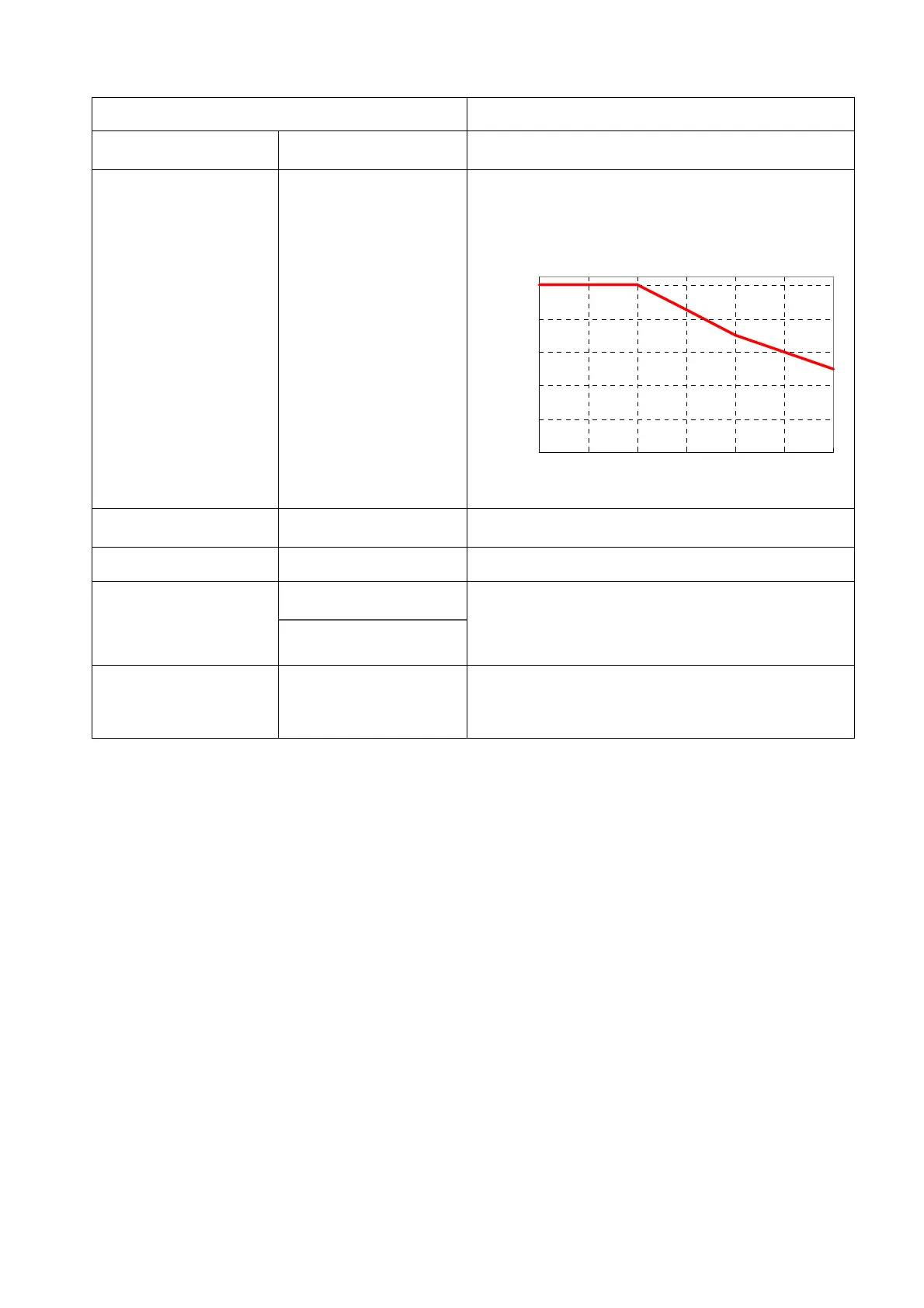

2-2 Specifications
Specifications
Remarks
Fluid Air, Nitrogen
This product cannot be used in an environment
exposed to chemicals.
Operating pressure
range
-100 kPa to 1.0 MPa
(at 20
o
C)
The maximum operating pressure varies depending
on the temperature.
Refer to the graph below for the relation between the
operating temperature and maximum operating
pressure.
Operating
temperature range
0 to 60
o
C
No freezing
Filtration 5 μm
Filtration efficiency 95%
Element replacement
differential pressure
With positive pressure:
0.1 MPa
Even though the pressure drop does not reach the
values indicated on the specifications, replace the
element if the set values (flow rate, time required to
reach the specified vacuum) change.
With negative pressure:
20 kPa
Applicable tubing
material
Nylon,
Soft nylon,
Polyurethane
-
0.0
0.2
0.4
0.6
0.8
1.0
0 102030405060
使用温度 [℃]
最高使用圧力
[MPa]
Max. operating pressure [MPa]
Operating temperature [
o
C]

SMC Networks ZFC Series Specifications
