22
837915
17. Open the top door and replace the door rack; then, close the door.

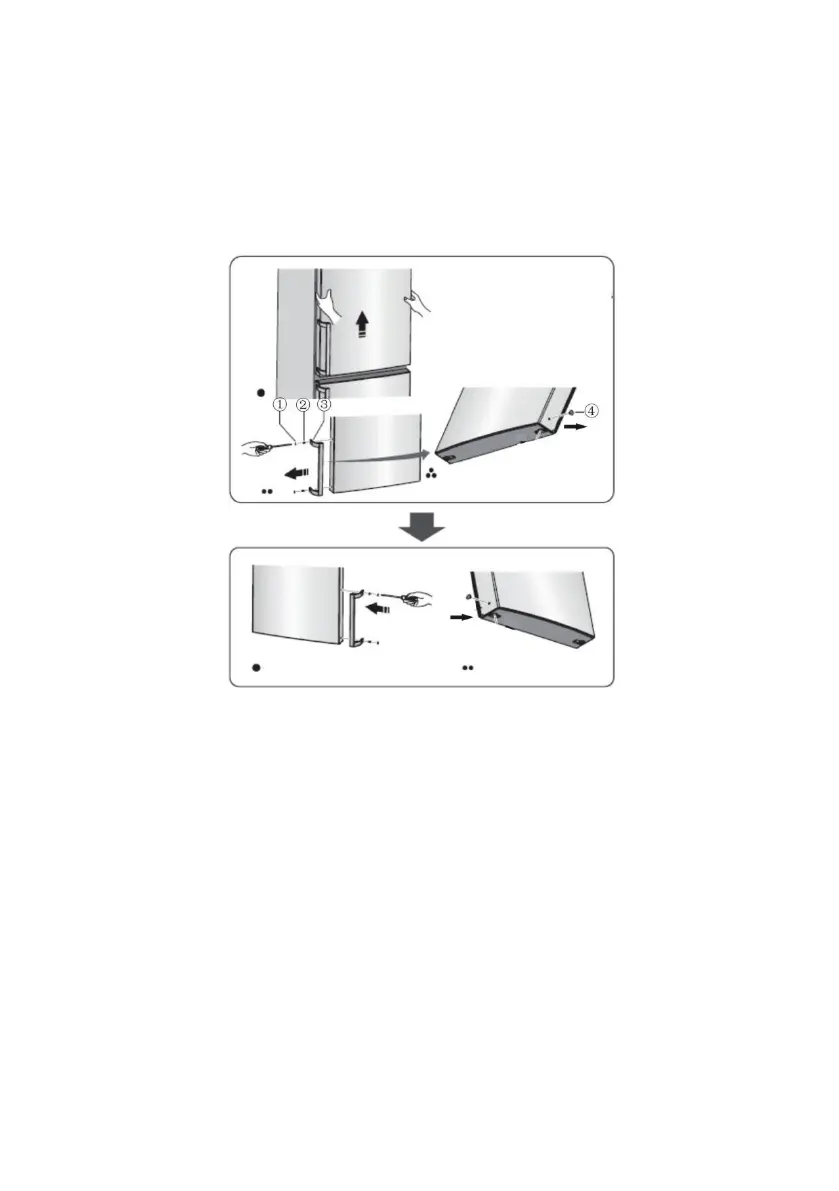

Note: If your model has a handle, then move it to the opposite side by following
the instructions below. Remove the top door and lay them onto a smooth
surface. Remove the caps (1) and (4) and undo the screws (2) as shown in the
figure. Replace the handle (3) on the opposite side, tighten the screws (2) and
replace the caps (1) and (4).
