Appliance with two compressors
Valve and no frost system appliance

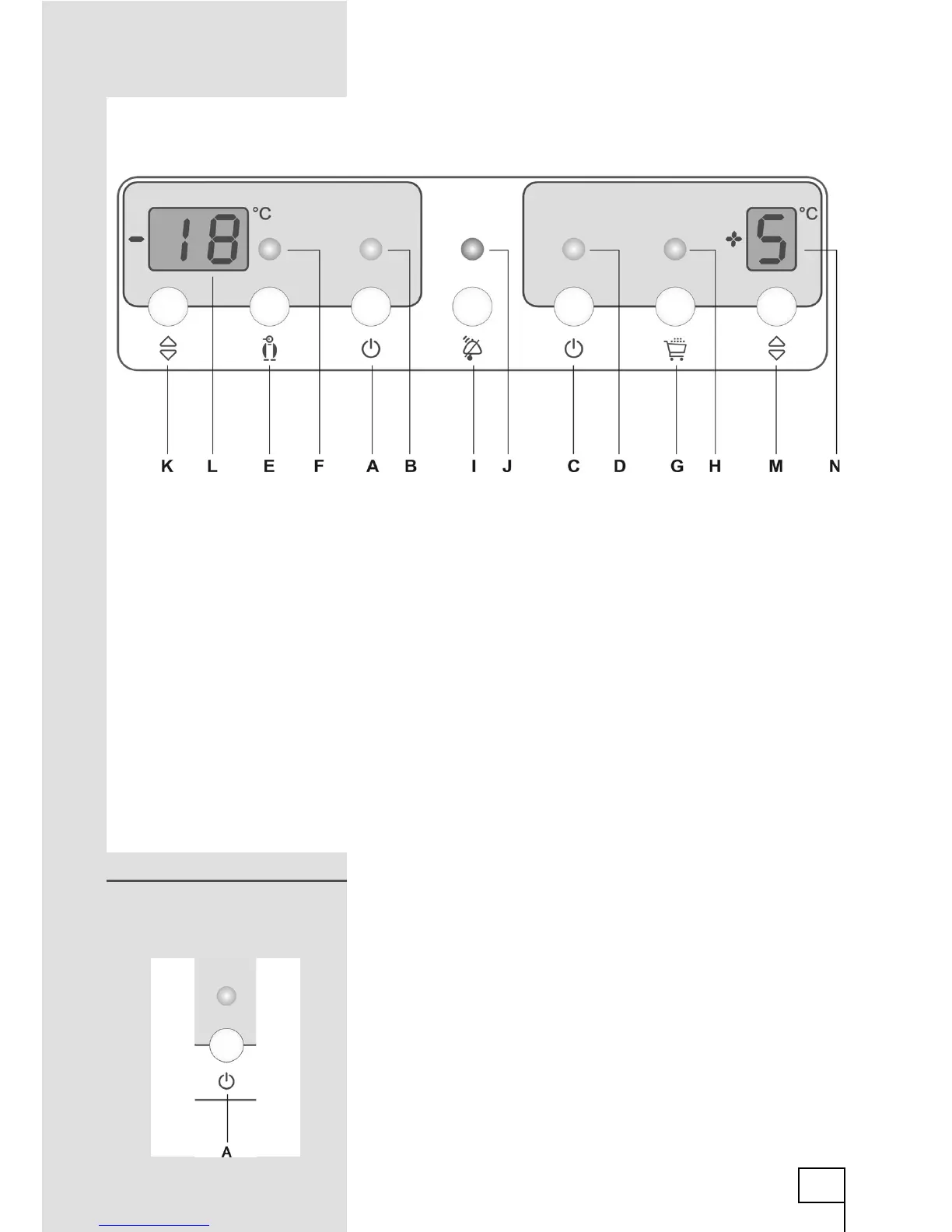

A Freezer ON/OFF button
B Green signal lamp: indicates freezer operation
C Refrigerator ON/OFF button
D Green signal lamp: indicates refrigerator operation
E Intensive freezing ON/OFF button
F Orange signal lamp: intensive freezing in operation
G Intensive cooling ON/OFF button
H Orange signal lamp: intensive cooling in operation
I Sound alarm and child lock ON/OFF button
J Red signal lamp: alarm is active
K Freezer temperature setting button
L Freezer temperature digital display: indicates temp. range -16°C to -24°C.
M Refrigerator temperature setting button
N Refrigerator temperature digital display: indicates temp. range +1°C do +9°C.
Before the fi rst use of the appliance fi rst plug the power cable
into the wall socket. Display indicates dashes for both the
refrigerator and the freezer.
• Appliance with two compressors
- Switch on or switch off the freezer by pressing the A button
and holding it for three seconds. The green led B is lit / goes
off. Switch on or switch off the refrigerator by pressing the C
button and holding it for three seconds. The green led D is lit
/ goes off.
- The temperature is indicated on the display; +9 °C for
the refrigerator compartment and 0°C for the freezer
compartment. These fi gures blink until the actual
Switching the appliance
ON/OFF
Switching the appliance
ON/OFF
15
CONTROL UNIT IV
