2.

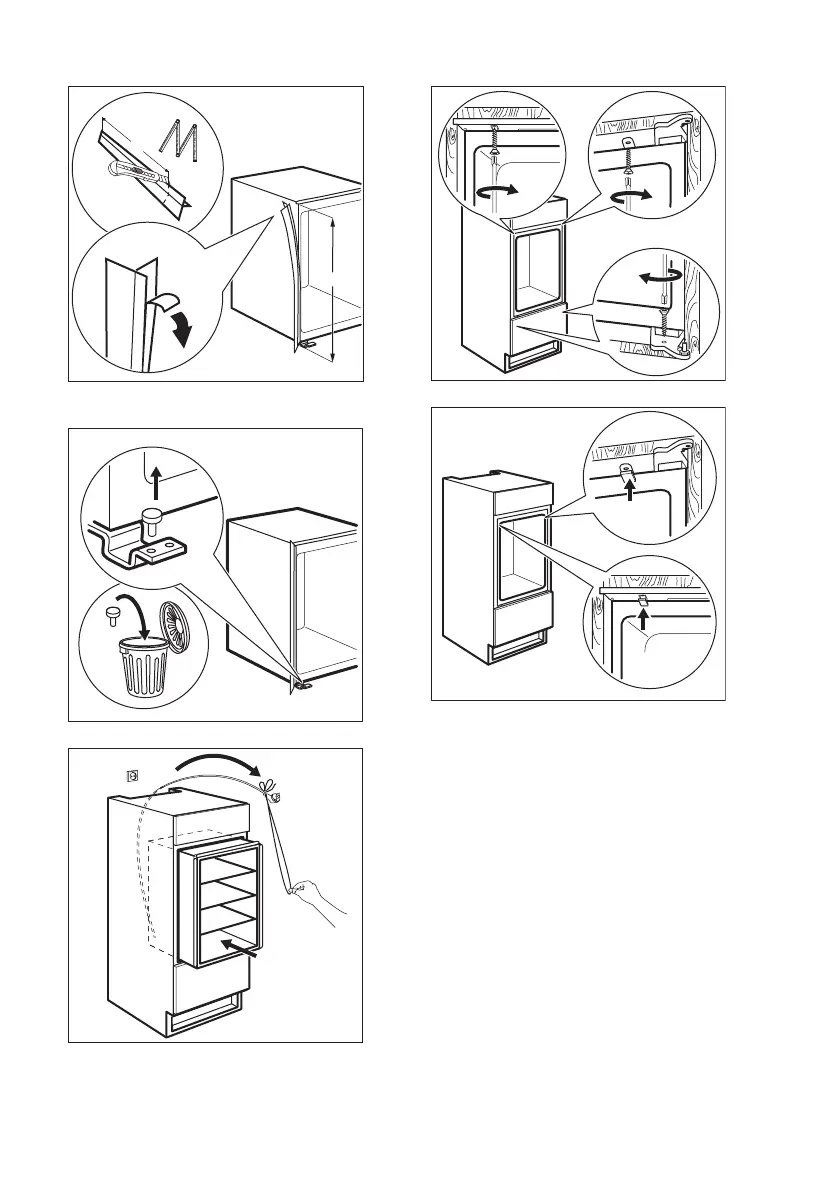

Remove the red cover as shown in
figure .
3. Install the appliance in the niche.
4. Attach the appliance to the niche with 4
screws.
5. Fix the covers on the screws.
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
Assembly instructions for the
compensator lower part of the
door
1. With the door open, loosen the two
screws situated in the lower part
without unscrewing them completely.
28
