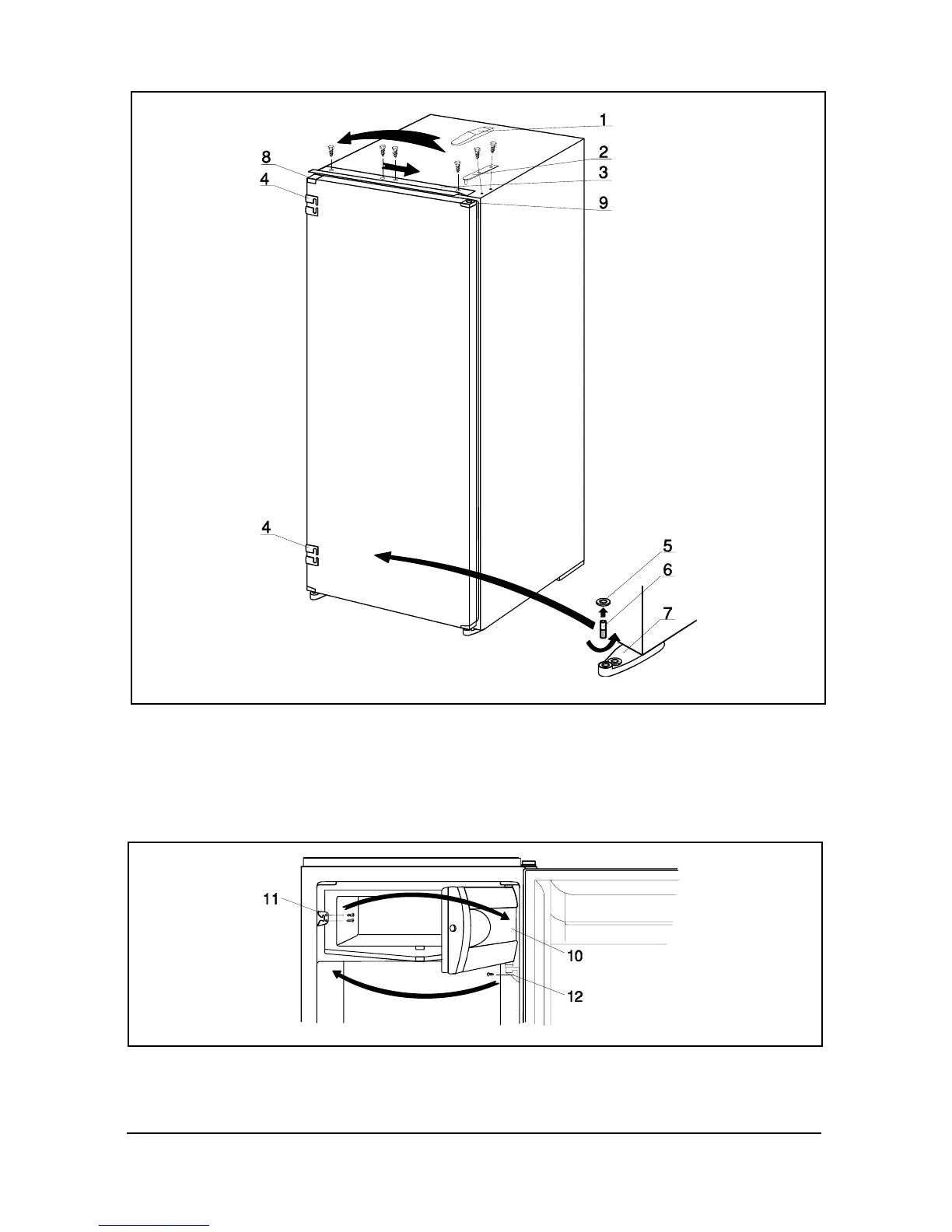

Mounting Instructions
11
1 Cover for the upper hinge 6 Lower hinge fastener
2 Upper hinge 7 Lower hinge
3 Upper rail 8 Corner without a hole
4 Slide guide 9 Corner with a hole
5 Lower hinge washer
10 Low temperature compartment 12 Door hinge
11 Blocking element
