To fix the extractor to the kitchen use
measures shown on fig. 4.
The lower part of the extractor must be
located at a minimum height of 60cm above
the hob for electric cookers and 65cm for gas
cookers. If the instructions of a gas cooker
indicate a greater distance these must be
observed.
When the extractor is working at the same
time as other non-electrical cooking
equipment, the outlet air pressure must not
exceed 4 Pa (4 x 10
-5
bar).
To achieve optimum performance the length
of the outlet hose should not exceed 4
meters, or include more than two 90º angles
(elbows)
CAUTION: Accessible parts may become hot
when it is used with cooking appliances.
Although venting to the outside is
recommended, activated carbon filter may be
used, which allow the gas to be returned to
the kitchen through the outlet pipe.
To evacuate air via the upper part, it is
needed an external evacuation conduit, and
the evacuation lever must be located in the
“E” position (Fig. 5).
The small (anti-return) outlet hose is located,
ensuring that the remaining outlets are duly
plugged.
To allow re-circulation through the active
carbon filter the evacuation lever is located in
the “I” position. Then the activated carbon
filter is introduced in the corresponding
groove.

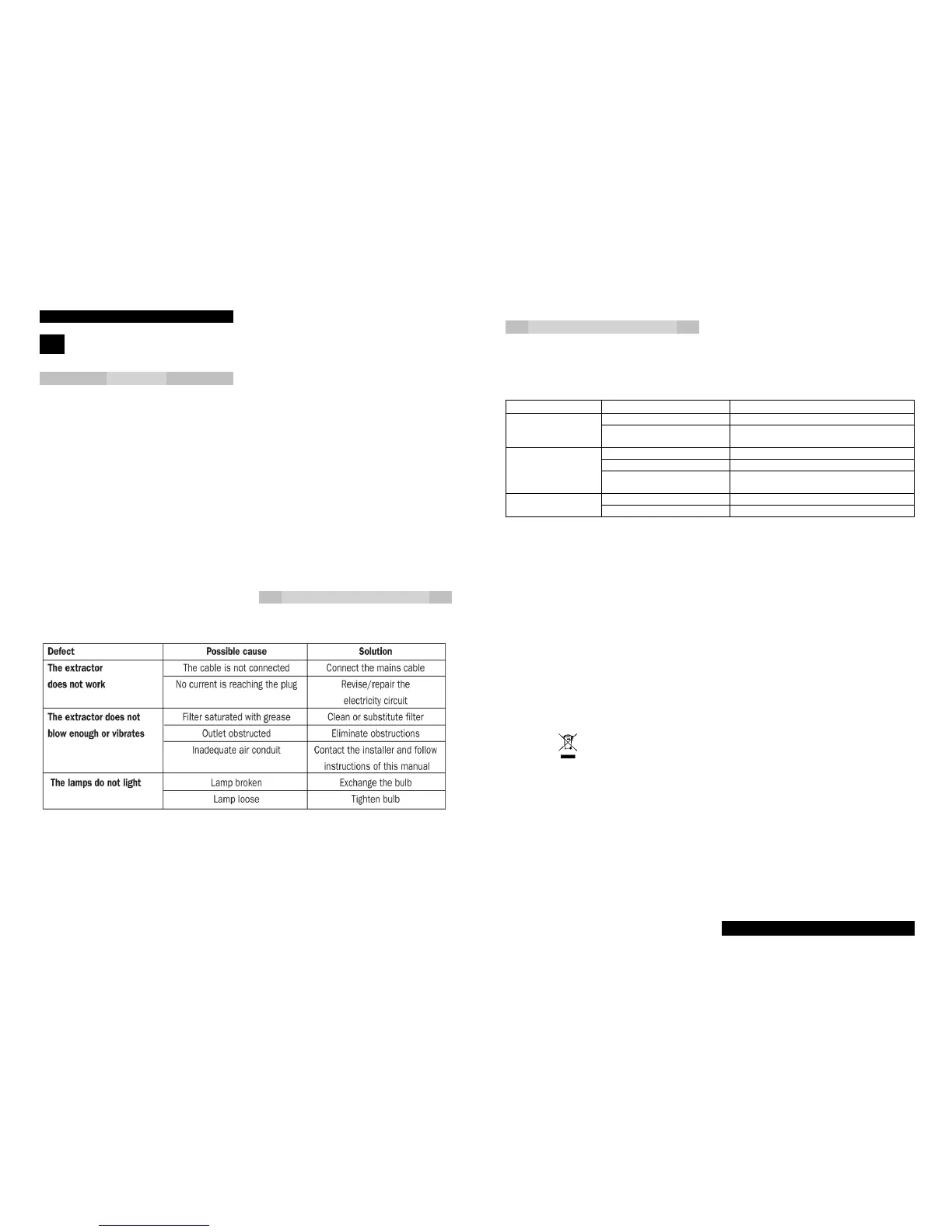

Den här apparaten är CE märkt i enlighet med direktivet 2003/108/EC i Europa Parlamentet och
RAEE av Europarådet angående avfall från elektriska och elektroniska apparater. Rätt
avfallshantering av denna produkt undviker fara för miljön.
Symbolen på produkten eller dokumenten som medföljer produkten, visar att man inte
kan hantera det som hushållsopor. Det skall föras till återvinningstation för elektriska och
elektroniska apparater. Hantera i enlighet med miljölagarna.
För mer information kontakta din kommuns återvinningstation.
